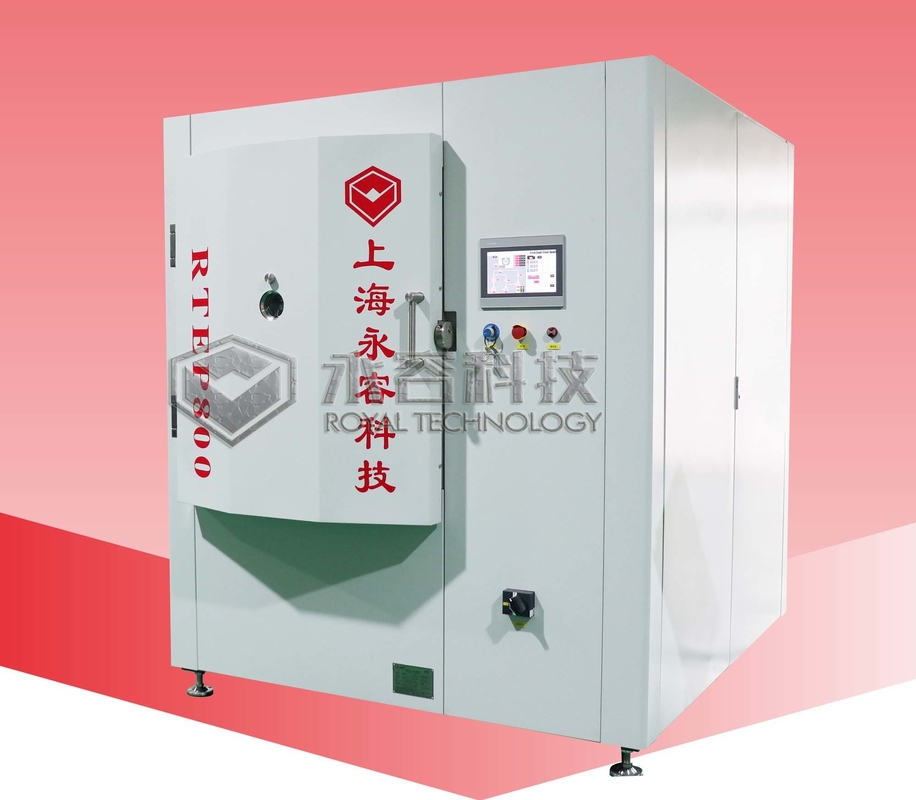

Bicycle Frame Aluminum Vacuum Metalizing Machine / PVD Vacuum Thermal Evaporation Coating On Bike Frame
Bicycle Frame Aluminum Vacuum Metalizing Machine uses the Thermal Resistant Evaporation technology to evaporate and deposit Aluminum wire on the slipper surface to give a high reflection and metal image.

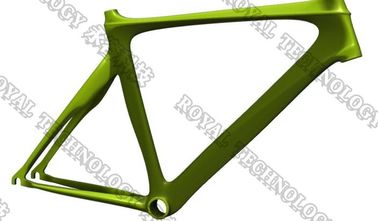

Bicycle Frame Aluminum Vacuum Metalizing Machine Coating Process: Substrate Cleaning --> UV base coating --> PVD aluminum metalizing --> UV top coating ( lacquer or color pigment to get various colors)
Bicycle Frame Aluminum Vacuum Metalizing Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations
Bicycle Frame Aluminum Vacuum Metalizing Machine Specifications:
| MODEL | RTEP800 | ||||||
| TECHNOLOGY | THERMAL EVAPORATION, VACUUM METALIZING | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ800*H800mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||

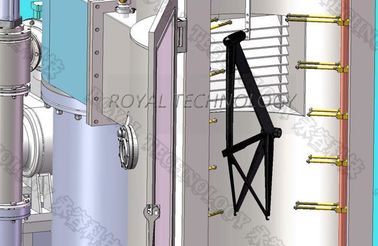

| EVAPORTATION SYSTEM | EXCLUSIVE DESIGN FOR BICYCLE FRAMES | ||||||
| DEPOSITION MATERIAL | Copper, Chrome, Stainless Steel, Aluminum | ||||||
| DEPOSITION SOURCE | TUNGSTEN FILAMENT | ||||||
| CONTROL |
PLC(Programmable Logic Controller) + Touch Screen |
||||||
| PUMP SYSTEM | Rotary Pistonr Vacuum Pump SV6300B | ||||||
| Rotary Vane Vacuum Pump D60C *1 | |||||||
| Roots Vacuum Pump WAU1001 *1 | |||||||
| Diffussion Pump DP221 | |||||||
| PRE-TREATMENT | Plasma Cleaning | ||||||
| SAFETY SYSTEM |
Numerous safety interlocks to protect operators and equipment |
||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W300*3000mm | ||||||
| TOTAL WEIGHT | 4 T | ||||||
| CYCLE TIME |
20 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 50 KW | ||||||
| AVERAGE POWER CONSUMPTION (APPROX.) | 25 KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
