X - Ray Cesium Iodide PVD Coating Equipment , Crucible Thermal Evaporation, CsI Vacuum Deposition System

1 set
MOQ
negotiable
Price

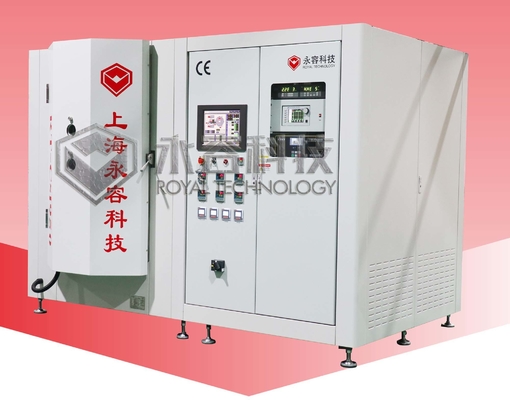

X - Ray Cesium Iodide PVD Coating Equipment , Crucible Thermal Evaporation,   CsI Vacuum Deposition System
Features Gallery Product Description Request A Quote
Features
Specifications
Evaporation Source: Molybdenum Crucibles
Deposition Materials: CsI, Vacuum Deposition
Applications: Medical X-ray Screen, Dental Imaging, Security Inspection, High - Energy Physics
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

small pvd coating machine

,

high vacuum coating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: CsI950
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, T/T,
Supply Ability: 10 sets per month
Product Description

Cesium Iodide PVD Vacuum Coating Machine / Cesium Iodide Vacuum Deposition Coater / CsI Vacuum Evaporation Machine


Cesium Iodide PVD Vacuum Coatings performance

Ultra- High Spatial Resolution of Imagings;

Fast response for sharper imagings;

Class leading edge-to-edge image areas;

Optical absorber layers or reflector layers;

Low patient X-ray dose;

Suitable for CCD and CMOS devices, especially in medical industries.



Cesium Iodide PVD Vacuum Coating Machine is developed exclusively used for medical devices to get a high X-ray imaging. The main features of this machine:

1. Ultra-high ultimate vacuum pressure : up to 9.0*10-5 Pa;

 2. Fast heating up devices for a good adhesion;

3. Proper high vacuum pump selection and pumping system to avoid hazard material's exposed in the air;

4. Robust, compact and solid coating system;

5. High stability, working 960 hrs without stop.

6. Inficon Film Thickness Controller device to monitor the film thickness inline.

7. Exclusively crucibles design and selection for CsI deposition.

8. Substrates coating, max. size: 500*500mm

 CsI thin film deposition for X-ray Imaging devices is an advanced technique to evaporate CsI on the screen to give a high quality of imagings. With its high resolution performace, also widely used in secuiry checking and inspection, high energy physics subsject, physics of nuclear energy areas etc.





X - Ray Cesium Iodide PVD Coating Equipment , Crucible Thermal Evaporation,   CsI Vacuum Deposition System 0





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
