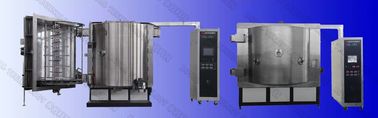

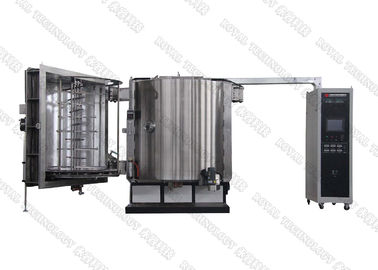

High Vacuum Thermal Evaporation Coating Unit / High Vacuum Evaporation Coating System / High Vacuum Metalizer
High Vacuum Thermal Evaporation Coating Unit is widely used in automotive industry, automotive lighting reflectors, car logo chroming; audio and various 3D structure products like: cameras, computers, smart phones, clocks and watches, toys and sporting products, tableware, sanitary ware, medical industry,TPU , ABS, PC, PP, PVC, PET film, nylon, metal alloy, glass, ceramics, etc.
With the PVD (Physical Vapor Deposition) process of “Vacuum Thermal Evaporation or Vacuum Thermal Deposition” as an advanced coating technology to replace the traditional water-electroplating surface treatment methods. This coating technology is widely used for surface decoration and functional applications as applied to standard substrates listed below:
1. Decorative Coatings: ABS, PP, PC, PET, PMMA to deposit a thin film, high reflective, metallic like coating on toys, fashion and consume jewelry accessories, Christmas tree decorations, balls, buttons, shoes, mirrors.
2. Functional Coatings: protective layer: ZrO2 coatings on blades for heat insulation, AlxOx, HMDSO protective layers, EMI & NCVM on electronics.
3. Optics Coatings: Anti-Reflection coating (AF film), optical filter, color separation filter, telescope, periscope, microscope and digital camera.
High Vacuum Thermal Evaporation Coating Unit Advantages:
Finishes are deposited using an environmentally friendly green process;
Highly reflective, brilliant and bright colors;
High volume production, low cost, ideal solution for mass production demand.
High Vacuum Thermal Evaporation Coating Unit Models (Standard)
| Model | Size(mm) | Substrate Jigs (Qty.) | Evaporation Power(kVA) | Plasma (kVA) | Ultimate Vacuum | Cycle Time | Electrical Power |
| RTEP1012 | Φ1000xH1200 | 6,8,10 | 20 | 7 | 8x10-4Pa | 10'~15' depends on Product |
3Phase/AC380V,50HZ |
| RTEP1416 | Φ1400xH1600 | 6, 8,16 | 30 | 7 | |||
| RTEP1418 | Φ1400xH1800 | 6,16 | 35 | 10 | |||
| RTEP1616 | Φ1600xH1600 | 8.16 | 35 | 10 | |||
| RTEP1618 | Φ1600xH1800 | 8.16 | 35 | 10 | |||
| RTEP1820 | Φ1800xH2000 | 6 | 40 | 10 | |||
| RTEP2022 | Φ2000xH2200 | 10,12,16 | 40 | 10 |

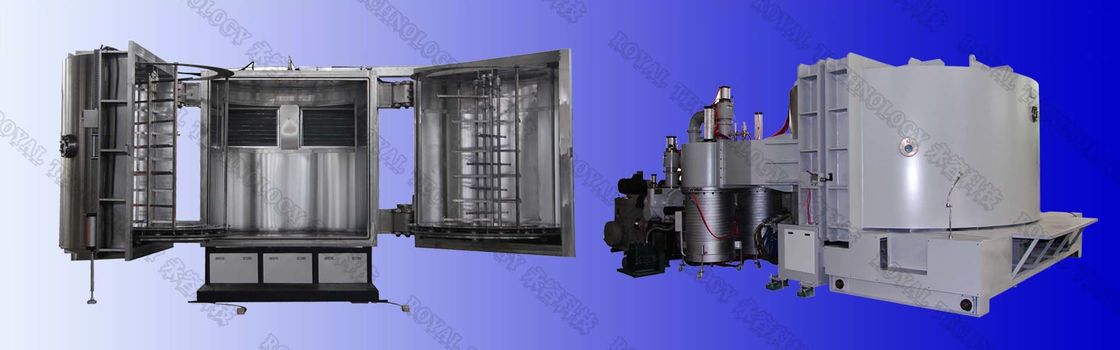

High Vacuum Thermal Evaporation Coating Unit ( Exclusively Using)
For car logo billboard, automotive plastic parts etc.
| RTEP3618 | Φ3600xH1800 | 1 | 80 | 8x10-4Pa | 10'~15' depends on Product |
3Phase/AC380V,50HZ |
|
| RTEP2215 | Φ2200xH1500 | 1 | 50 | 10 | |||
| RTEP2525 | Φ2500xH2500 | 3 | 50 | 20 | |||
| RTEP6638 | L6600xH3800 | 100 | 20 | ||||
| RTEP0913 | Φ900xH1300 | ||||||
| RTEP1822 | Φ1800xH2200 | 6 | 50 | 10 | |||
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
