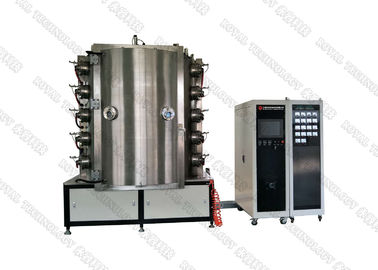

Muilti Arc Ion PVD Vacuum Coating Machine / Arc Vacuum PVD Plating Unit
The multi arc vacuum coating machine for decorative colors plating on various substrate materials like: Zinc alloy, metal alloy, stainless steel substrates, ceramics, glasswares etc.
The Muilti Arc Ion PVD Vacuum Coating Machine main components are: cathodic arc sources, arc power supply and bias power supply. We have been improving these items for a great quality of final coating finishing and ensure machine's stability.
The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.
Except that, the whole coating unit design enable long none stop working time.
1. Structure: deposition chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc.
2. Coating Colors: gold, black, brown, grey, smoke, chroming, rose gold, rainbow, etc
3. Coatings properties: TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.
Arc Decoration Thin Film Coating Machine Models
Model |
RTAC-900 | RTAC-1000 | RTAC-1250 | RTAC-1400 | RTAC-1600 | ||||
| Chamber Inner size | 900x1100mm | 1000x1200mm | 1250x1350mm | 1400x1600mm | 1600x1600mm | ||||
| Power supply type | Arc power supply, filament power supply, pulse bias power supply | ||||||||
| Structure of vacuum chamber | Vertical front door structure, rear air exhaust system and double-layer water cooling chamber | ||||||||
| Material of vacuum chamber | stainless steel 304/316L | ||||||||
| Ultimate vacuum | 6.0x10-4Pa (unloading, clean, drying chamber) | ||||||||
| Vacuum Pumping Speed | from atmosphere to 8.0*10-3Pa ≤15 minutes | ||||||||
| Vacuum pumping system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be selected according to customer requirements) |
||||||||
| Arc source | 6 units or 8 units |
8 units or 10 units |
10 units or 12 units |
14 units or 16 units |
16 units or 18 units |
||||
| Bias power supply | 20KW/set | 20KW/set | 30KW/set | 40KW/set | 50KW/set | ||||
| Driving Model | Planetary revolution and rotation, variable frequency speed regulation (controllable and adjustable) |
||||||||
| Heating System | Controllable and adjustable from room temperature to 450°C (PID temperature control) |
||||||||
| MFC | 3-path or 4-path process gas flow control and display system, selective automatic gassing system | ||||||||
| Cooling System | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | ||||||||
| Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | ||||||||
| Total power | 30KW | 35KW | 45KW | 60KW | 75KW | ||||
| Alarm and protection | Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function | ||||||||
| Equipment area | W2.5m*L3.5m | W3m*L4m | W4m*L5m | W4.5m*L6m | W5m*L7m | ||||
| Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa | ||||||||
| Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products | ||||||||
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
