Ion Plating Black Arc Vacuum Coating Plant / Large Stainless Steel Black Color Coating Machine
The large Stainless Steel Black Color Coating Machine can get brushed black, smoke, gun-black, ashtray, dark grey colors with Ti and Cr targets, when the chamber introduce in reactive gas like N2 or C2H2, the colors change from light to dark, finally to get the desired colors.
The machine with arc evaporating deposition technology to generate various colors on stainless steel products, especially the large size Multi-arc vacuum coating machine, it widely used in architectural and building materials industry, such as: kitchen cabinets whole set, windows, walls, hotel, KTV, Bars, elevator panels for decorations.
The machine can coat on glass, ceramic and Stainless steel material products surface directly without base coating. It is highly praised by our customers for the stable quality and low running cost.
We have a professional team to assit our customers build the PVD vacuum coating service center and get running cost back within short time. It is a reliable and great business investment project for businessmen.

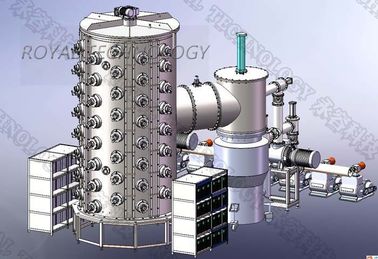

The large size multi-arc TiN gold coating machines we have produced are as below
| Mode | RTAC2140 | RTAC1836 | RTAC2040 | RTAC2270 | RTAC2080 |
| Vacuum chamber Inner Size | Φ2100×H4000mm | Φ1800×H3600mm | Φ2000×H4000mm | Φ2200×L7000mm | Φ2000×L8000mm |
| Total Power | 125-360KW | 120-300KW | 120-350KW | 200KW | 200KW |
| Arc source | 40-60 units | 24-36 units | 40-60 units | 50~60 units | 50~60 units |
| Bias Power Supply | 60KW/1 set | 50KW/1 set | 60KW/1 set | 70KW/1 set | 70KW/1 set |
| Footprint | 40~60m² *H12m | 40~60m² *H11m | 40~60m² * H12m | 40~60m² *L20m | 40~60m² *L22m |
| Power Supplies | DC power, pulsed power (bias power, arc power) | ||||
| Vacuum Chamber | Vertical , top opening model ( Horizontal for Optional) | Horizontal, front opening model | |||
| Rack and Jig System | Planetary frame, revolution + rotation | ||||
| Power source Type | Arc power supply, bombardment bios and heating power supply | ||||
| Ultimate Vacuum Pressure | ≤8×10-4pa,pressure rising rate≤0.67pa/h, Pump down time (exhaust speed) : from atom to 8x10-3 pa ≤20min | ||||
| Vacuum Pumping System | Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need) | ||||
| Control and Operation | Manual/semi-automatic , touch screen operation, PLC control | ||||
| Cooling system | recycle water-cooling system | ||||
| Cathodic Arc Source | Adjustable magnetron filed,indirect water cooling | ||||
| Target Size | Φ100×40mm | ||||
| Working Environment | Air Pressure 0.5-0.8MPa, Water Temp.≤25°C,Water Pressure≥0.2MPa | ||||
| Heating System | Controllable and adjustable from room temperature to 300°C | ||||
| Measuring Instrument | vacuum gauge,flow meter box,mass flow controller,electric control box,heated instrument control box, arc power control box | ||||
| Remarks | Dimension of the vacuum chamber, the quantity of arc ion sources, heaters and pumps can be designed and equipped according to customers demand. | ||||
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
