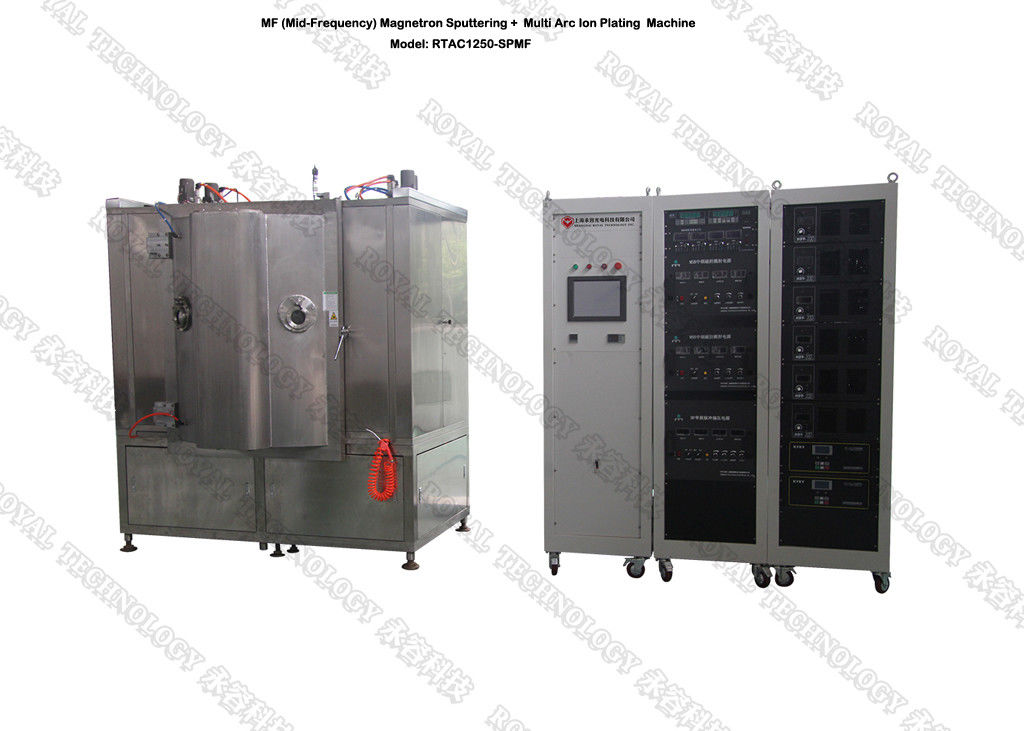

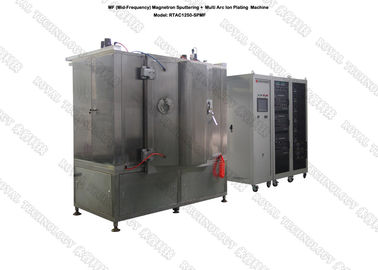

Metal Jewelry Vacuum Coating Machine / IPG Gold Jewelry 18K ~ 24 K Sputtering System
The metal jewelry vacuum coating machine combined the techniques of Sputtering and arc evapoation, which mainly used on metal jewelry and watches, handbags metal accessories.
The standard model is RTAC1250-SP, the machine contains key deposition sources of:
1. Two sets MF Sputtering Cathodes
2. 1 set planar / cylinder DC Sputtering Cathodes
3. 1 set Cylinder Arc Cathode or 7 sets cicular steered arc cathodes
4. 1 set Ion source unit for plasma cleaning bomboardment before PVD deposition, highly improved the film adhesion and much more bright color.
RTAC1250-SP Specifications
| MODEL | RTAC1250-SP | ||||||
| TECHNOLOGY | Magnetron Sputtering + Ion Plating | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1250*H1250mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for thin black film deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc. |
||||||
| DEPOSITION SOURCE | 2 sets MF Cylindrical Sputtering Targets + 1 Cathodic Arc Sources + 1 DC sputtering + 1 Ion Source | ||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + | ||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU1001 - 1 sets (Leybold) | |||||||
| D60T- 2sets (Leybold) | |||||||
| Turbo Molecular Pumps: 2* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*36 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H) 5000*4000 *4000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 155 KW | ||||||
|
AVERAGE POWER CONSUMPTION (APPROX.) |
75 KW |
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
The Metal Jewelry Vacuum Coating Machine deposition chamber structure
DC sputtering cathodes and Ion Source Mounting Flange
MF Sputtering cathode and Cylinder Arc Mounting Flanges
The IPG gold plating machine is particularly used in jewerly, watches, clocks, pens writing instrument, handbag and shoes high end metal parts. Electronic products metal parts like Phone, Camera, remote controller,
