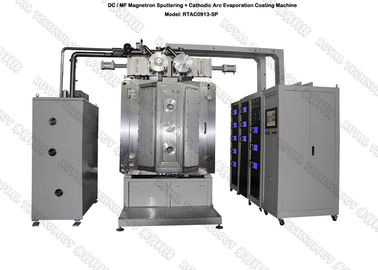

Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems, PECVD DLC Sputtering Equipment

1 set
MOQ
negotiable
Price
Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems,  PECVD DLC Sputtering Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Deposition Sources: Sputtering + Cathodic Arc Evaporation
Technique: PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications: Metal Jewelry, Watches, Necklace, Ear Rings, Finger Rings, Bracelets, Handbag Chains, Logos
Film Features: Bright Colors, Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Highlight:

thin film deposition equipment

,

dlc coating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTAS
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6 sets per month
Product Description

Watches DLC Black Thin Film Coating / Watches PECVD Thin Film Coating System





DLC film ( Diamond - Like - Carbon), it has been benefiting variety of industries for high end quality products like: automotive bearings, medical instruments, military, aerospace, industrial sealing parts, watches, etc. which require high durability and min. coefficient of friction.



PECVD + PVD process DLC coating technique has been developed by us for years to satisfy the highest standard application. This process providing an unique and flawless finishing on the product surface except extrodiary beauty.







Watches DLC Thin Film Coating Machine Specifications



MODEL RTSP1010
TECHNOLOGY PECVD process- magnetron sputtering + ion source
CHAMBER MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1000*1000mm (H)
CHAMBER TYPE Regular octahedron chamber, 2-doors
ROTATION RACK & JIG SYSTEM 6 (8)satellite, Max. weight: 400kgs
POWER SUPPLIES Qty. of Sputtering: 2*24 KW Bias of Power Supply: 1*24W AE power supply for option Ion Source Power supply 2 sets, AE power supply for option
DEPOSITION MATERIAL Cr/C
DEPOSITION SOURCE

2 pairs (4 pieces) Sputtering Cathodes + 2 Ion Source Coating Area: Dia800mm*H550mm;

Uniformity Area: ±10~15%

CONTROL PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models)
PUMP SYSTEM Rotary Vane Pump: SV300B - 1 set (Leybold)
Roots Pump: WAU1001 - 1 set (Leybold)
Holding Pump: D60C-1set- (Leybold)
Magnetric Rotor Suspension Molecular Pump: MAG2200 - 2 sets (Leybold)
GAS MASS FLOW CONTROLLER 3 channels, Made in America (MKS brand)
VACUUM GAUGE Model: ZDF-X-LE, Made in China
Linear Ion Source 2 pieces Pre-treating, plasma cleaning + assisted deposition
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
HEATING Heaters: 20KW. Max. temp.: 400℃
COOLING Industrial Chiller (Cold Water)
POWER MAX. 100KW (Approx.)
AVERAGE POWER CONSUMPTION 45 KW (Approx.)
GROSS WEIGHT T (Approx.)
FOOT PRINT ( L*W*H) 4000*4000 *4000 MM
POWER ELECTRICAL AC 380V/3 phases/50HZ


Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems,  PECVD DLC Sputtering Equipment 0







Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems,  PECVD DLC Sputtering Equipment 1



Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems,  PECVD DLC Sputtering Equipment 2

Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems,  PECVD DLC Sputtering Equipment 3

Industrial Black DLC Coating Machine , Watches PECVD Thin Film Deposition Systems,  PECVD DLC Sputtering Equipment 4







Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
