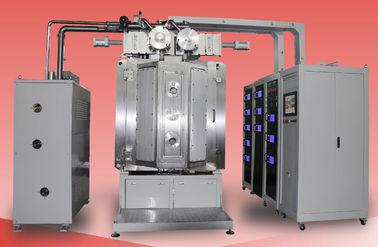

Aluminum Oxide PVD Plating Machine, Direct Plated Copper Products, Multi- Arc Vacuum Coating Equipment
1 set
MOQ
negotiable
Price
Aluminum Oxide PVD Plating Machine,  Direct Plated Copper Products, Multi- Arc Vacuum Coating Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC950-SP
High Light:

ion plating system

,

vacuum plating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 sets per month
Specifications
Deposition Sources: MF/DC Sputtering + Arc Cathodes
Deposition Films: DLC, Optical Film Coating, Decorative Coatings
Applications: PECVD Process, DLC Film, Diamond Like Carbon Film, Sputtering Optical Film,
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Equipment Structure: Front And Back 2-door Structure
Coating Substrates: Ceramic, Silicon, Aluminum Oxide, Aluminum Nitride
Product Description

  Aluminum parts Oxide Copper PVD Plating Machine PVD Copper Plating oncnc aluminum milling parts



Keywords: Direct Plated aluminum products,  PECVD process, DLC film, Diamond Like Carbon Film, Sputtering Optical film, Gencoa Magnetron Sputtering Cathode, Ion Source, PA PVD





RTAC950-SP Design Features:

  • Flexibility: arc and sputter sources, linear ion source devices mounting flanges are standardized for flexible exchange
  • Versatility: available for deposit variety of base metals and alloys, optical coatings, soft coatings. Compound films and solid lubricating films on the metallic and non-metallic materials substrates
  • Straight forward design: 2-door structure, front and back opening for easy maintenance





Technical Specifications

  • Performance

1. Ultimate Vacuum Pressure: better than 8.0*10-4 Pa;

  • Base Vacuum pressure: 3.0*10-2 Pa

3. Pumping down Time: from atm to 1.0×10-3 Pa≤15 minutes ( room temperature, dry, clean and empty chamber)

4. Deposition source: Gencoa magnetron sputtering cathodes, steered arc cathodes, Ion source

5. Operating Model: Full Automatically /Semi-Auto/ Manually

6. Heating: from room temperature up to max. 500℃,

9. Ion source for PECVD and PA PVD process.

  • Structure

The vacuum coating machine contains key completed system listed below:



1. Vacuum Chamber
1.1 Size: Inner Depth 950mm

Inner Height:1350mm

1.2 Material: Vacuum Chamber SUS304

Door and flanges SUS304

Chamber strengthen structure: SS41 mild steel, with painted finishing surface treatment.

Chamber chassis SS41 mild steel with painted finishing surface treatment.

1.3 Chamber Shield : SUS304

1.4 View Window: on chamber doors -2

1.5 Vacuum Chamber Venting Valve (including silencer)

1.6 Door: 2 sets, front and back, SUS304 material



2. Roughing Vacuum Pumping System:
Oil rotary vane vacuum pump + Holding Pump



3. High Vacuum Pumping System:

Turbo Molecular Pump - 2 sets



4. Electrical Control and Operation System- PLC+ Touch ScreenOperation System:

Suppliers:

PLC: Mitsubishi, Model:FX-IN60MR-001 SERIES

Electronic Components: SCHNEIDER,OMRON.

Safety Protecting System: Numerous safety interlocks to protect operators and equipment ( water, current gas, temperature etc.)

Coating Processes System: Process Automation & Control. Automatically saved in memory for 3 months. Featured coating recipes data: target operation current/voltage, Mass Flow, Vacuum pressure, temperature, coating times are saved for an analysis to enhance the coatings quality.

4.1 Main circuit: None-fuse breaker switch, electromagnetic switch, C/T in series type

4.2 Power Supply: MF sputtering power + DC Arc power + Bias Power Supply

4.3 Deposition control system

4.4 Operation System: Touch Screen + PLC, recipe control and data logging, Auto shutdown, auto evacuation, auto coating

4.5 Measuring System

Vacuum Pressure : Vacuum Gauge: Pirani + Penning gauge + Full range vacuum gauge -- Europe brand

Temperature measuring device: Thermocouple
MFC: Mass Flow Controller ( 4 ways ),

4.6 Alarm System: Compressed air pressure , Cooling water flow, Mis-operation

4.7 Power Load Indicator: Voltage indicator and load current indicator



5. Deposition System

5.1 Deposition source: Sputtering cathodes+ Arc sources + Ion Source

5.2 Deposition material: ITO, Titanium, Chrome, Aluminum, Stainless Steel, TiAl etc.



6. Sub-System

6.1 Air Compressed Valve Control System

6.2 Cooling Water System:Water flow pipe and switch valve system



7. Working Environment

Compressed Air: 5~8kg/cm2

Cooling Water: Water-In Temperature: 20~25℃, 200 Liter/min,
Water-In Pressure: 2~3 kg/cm2,



Power: 3 Phase 380V 50Hz(60Hz), 130kVA, average power consumption: 60KW

Installation Area: (L*W*H)4400*3200*2950mm

Exhaust: Vent for mechanical pumps





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
