Fishing Hooks Vacuum Plating Machine / Fishing Instrument PVD Plating Equipment
Fishing Hooks Vacuum Plating Machine was built in 2015 for our South Korea customer who manufacturing and supply fishing instruments to worldwide.

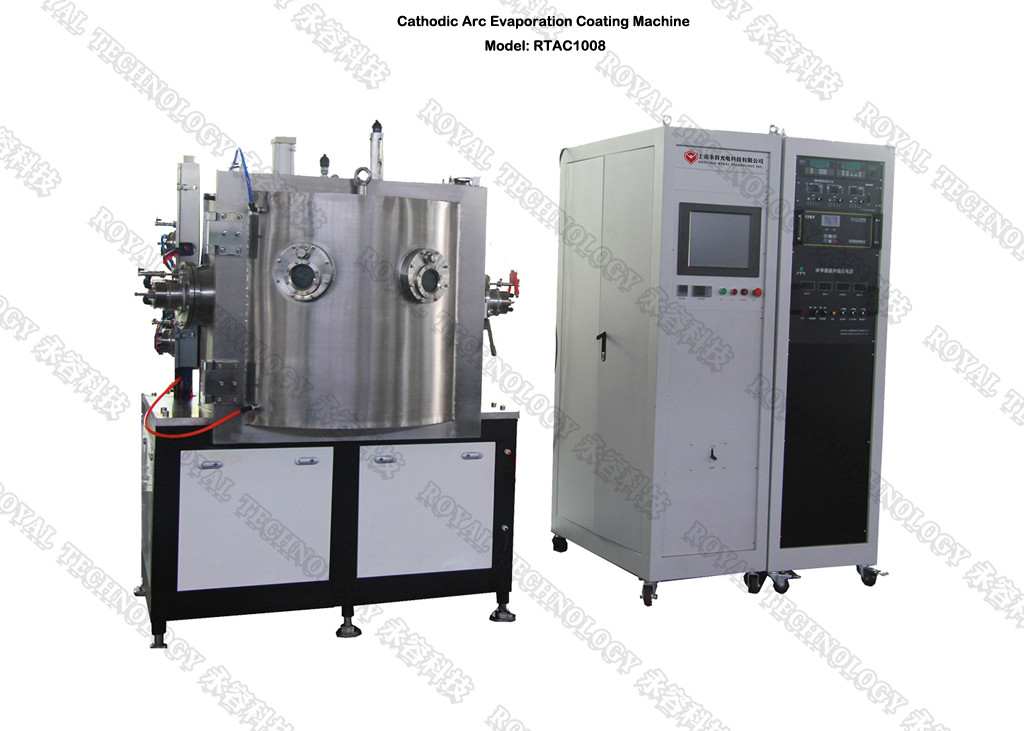

The standard model is RTAC1008, the machine contains key configurations
1. 6 sets cicular steered arc cathodes
2. Bias power supply
3. 1 set anode layer Ion source unit for optional.
4. High vacuum pumping system with Turbo Molecular pump for a stable vacuum environment.
5. Exclusively designed rotary jack and substrate holder system.
The Arc Ion Plating Machine RTAC1008-SP Specifications
| MODEL | RTAC1008 | ||||||
| TECHNOLOGY | Multi Arc Evaporation | ||||||
| MATERIAL | Stainless Steel (S304) | ||||||
| CHAMBER SIZE | Φ1000*H800mm | ||||||
| CHAMBER TYPE | Cylinder, vertical, 1-door | ||||||
| SPUTTERING SYSTEM | Exclusively design for IPG gold, silver sputtering deposition | ||||||
| DEPOSITION MATERIAL | Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc. |
||||||
| DEPOSITION SOURCE | Cathodic Arc Sources | ||||||
| GAS | MFC- 4 ways, Ar, N2, O2, C2H2 | ||||||
| CONTROL | PLC(Programmable Logic Controller) + | ||||||
| PUMP SYSTEM | SV300B - 1 set (Leybold) | ||||||
| WAU501- 1 sets (Leybold) | |||||||
| D60T- 1set (Leybold) | |||||||
| Turbo Molecular Pumps:1* F-400/3500 | |||||||
| PRE-TREATMENT | Bias power supply: 1*24 KW | ||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators | ||||||
| COOLING | Cold Water | ||||||
| POWER ELECTRICAL | 480V/3 phases/60HZ ( USA compliant) | ||||||
| 460V/3 phases/50HZ ( Asia compliant) | |||||||
| 380V/3 phases/50HZ ( EU-CE compliant) | |||||||
| FOOTPRINT | L3000*W3000*H2000mm | ||||||
| TOTAL WEIGHT | 7.0 T | ||||||
| FOOTPRINT | ( L*W*H)4000*3000 *3000 MM | ||||||
| CYCLE TIME | 30~40 minutes (depending on substrate material, substrate geometry and environmental conditions) |
||||||
| POWER MAX.. | 55 KW | ||||||
|
AVERAGE POWER CONSUMPTION (APPROX.) |
30 KW |
The Metal Watches and Jewelry Gold Plating Machine chamber structure - RTAC1008-SP
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
