PVD Decorative Vacuum Plating Machine, Cathodic Arc Deposition System For Bathroom Fittings Decorative Colors
1 set
MOQ
negotiable
Price
PVD Decorative Vacuum Plating Machine,  Cathodic Arc Deposition System For  Bathroom Fittings Decorative Colors
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

vacuum deposition system

,

hard coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Specifications
Chamber: Vertical Orientation, 1-door,
Material: Stainless Steel 304/316
Vacuum Technology: Arc Evaporation, Arc Ion Plating
Deposition Sources: Cylinder Arc Or Circular Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Bathroom Fittings Decorative Coating
Product Description





Bathroom Fittings Arc Ion Plating Machine / Bathroom Accessories Decoration Vacuum Plating



We assist our customers to select the proper coating process and coating machine based on the products material and coating capacity.



Bathroom Fittings Arc Ion Plating Machine is with the PVD vacuum arc discharge technology to evaporate targets and condense ions on product surface. The evaporation source (cathode) is ignited in a vacuum environment forming a self-sustaining arc discharge with the anode releasing target material ions from the cathodic arc radiant point. Due to the local current focus, the heat generated a localized ionization of the cathode material that, when combined with the reaction gas under the action of the workpiece bias, the deposits a plated film on the workpiece surface.



PVD Titanium coating on bathroom accessory Properties :

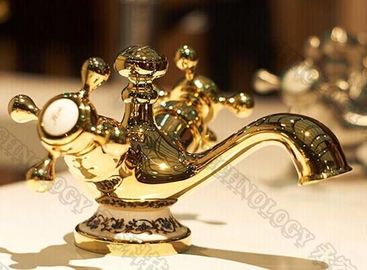

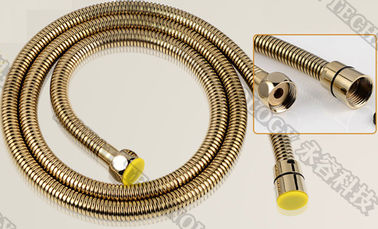

Finishing Properties: The machine is used to deposit TiN(gold color) ,Ti (silver color) and other coating on sanitary, After coating , it looks bright, metallic, smooth, and it's rust-proof,water proof. have a long life time.

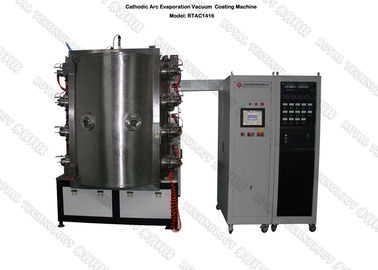

Bathroom Fittings Arc Ion Plating Machine Specification



MODEL RTAC1416
TECHNOLOGY plasma, ion plating,, cylindrical target
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1400*1600mm (H)
CHAMBER TYPE Cylinder, vertical, 1-door
EVAPORTATION SYSTEM EXCLUSIVE DESIGN FOR BATHROOM ACCESSORY
DEPOSITION MATERIAL Titanium,Silver, Copper, Chrome, Stainless Steel, Aluminum,Nickel
CONTROL PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM Rotary Pistonr Vacuum Pump SV300B *2
Rotary Vane Vacuum Pump D60C *1
Roots Vacuum Pump WAU1001 *1
Molecular Pump KYKY F3500/400 *3
PRE-TREATMENT Bias Plasma Cleaning
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L6000*W3400*H2500mm
TOTAL WEIGHT 7 T
CYCLE TIME

40 minutes (depending on substrate material, substrate geometry and environmental

conditions)

POWER MAX.. 60KW
AVERAGE POWER CONSUMPTION (APPROX.) 40KW



PVD Decorative Vacuum Plating Machine,  Cathodic Arc Deposition System For  Bathroom Fittings Decorative Colors 0







PVD Decorative Vacuum Plating Machine,  Cathodic Arc Deposition System For  Bathroom Fittings Decorative Colors 1



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
