CE Certified IPG Gold Plating Machine / Stainless Steel Gold Sputtering Machine

Brand Name:	ROYAL
Model Number:	RTAS
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	6 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

CE certification

Chamber:

Vertical Orientation, 1-door

Material:

Stainless Steel 304/316

Deposition Sources:

Sputtering + Cathodic Arc Evaporation

Technique:

PVD, Balanced/Unbalanced Magentron Sputtering Cathode

Applications:

Metal Jewelry, Watches, Necklace, Ear Rings, Finger Rings, Bracelets, Handbag Chains, Logos

Film Features:

Bright Colors, Wear Resistance, Strong Adhesion, Decorative Coating Colors

Factory Location:

Shanghai City, China

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Supply Ability:

6 sets per month

Highlight:

physical vapor deposition equipment

physical vapor deposition machine

Product Description

IPG Gold Plating Machine / Ion Plating Silver Sputtering Machine

The IPG gold plating machine is particularly used in jewerly, watches, clocks, pens writing instrument, handbag and shoes high end metal parts (branded products like Chloe, Channel, LV, Gucci, Fendi, Miumiu, Hermes etc) , Electronic products metal parts like Phone, Camera, remote controller,

The standard model is RTAC1250-SP, the machine contains key deposition sources of:

1. Two sets MF Sputtering Cathodes

2. 1 set planar / cylinder DC Sputtering Cathodes

3. 1 set Cylinder Arc Cathode or 7 sets cicular steered arc cathodes

4. 1 set Ion source unit for plasma cleaning bomboardment before PVD deposition, highly improved the film adhesion and much more bright color.

RTAC1250-SP Specifications

MODEL				RTAC1250-SP
TECHNOLOGY				Magnetron Sputtering + Ion Plating
MATERIAL				Stainless Steel (S304)
CHAMBER SIZE				Φ1250*H1250mm
CHAMBER TYPE				Cylinder, vertical, 1-door
SPUTTERING SYSTEM				Exclusively design for thin black film deposition
DEPOSITION MATERIAL				Aluminum, Silver, Copper, Chrome, Stainless Steel, Nickel, Gold, TiAl, Au alloy, Ag etc.
DEPOSITION SOURCE				2 sets MF Cylindrical Sputtering Targets + 1 Cathodic Arc Sources + 1 DC sputtering + 1 Ion Source
GAS				MFC- 4 ways, Ar, N2, O2, C2H2
CONTROL				PLC(Programmable Logic Controller) +
PUMP SYSTEM				SV300B - 1 set (Leybold)
				WAU1001 - 1 sets (Leybold)
				D60T- 2sets (Leybold)
				Turbo Molecular Pumps: 2* F-400/3500
PRE-TREATMENT				Bias power supply: 1*36 KW
SAFETY SYSTEM				Numerous safety interlocks to protect operators
COOLING				Cold Water
POWER ELECTRICAL				480V/3 phases/60HZ ( USA compliant)
				460V/3 phases/50HZ ( Asia compliant)
				380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT				L3000W3000H2000mm
TOTAL WEIGHT				7.0 T
FOOTPRINT				( LWH) 50004000 4000 MM
CYCLE TIME				30~40 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX..				155 KW
AVERAGE POWER CONSUMPTION (APPROX.)				75 KW

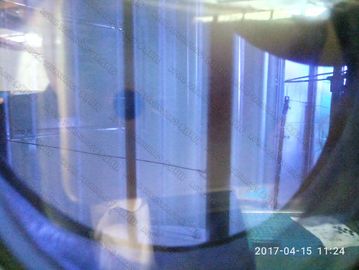

CE Certified IPG Gold Plating Machine / Stainless Steel Gold Sputtering Machine 1

CE Certified IPG Gold Plating Machine / Stainless Steel Gold Sputtering Machine 2

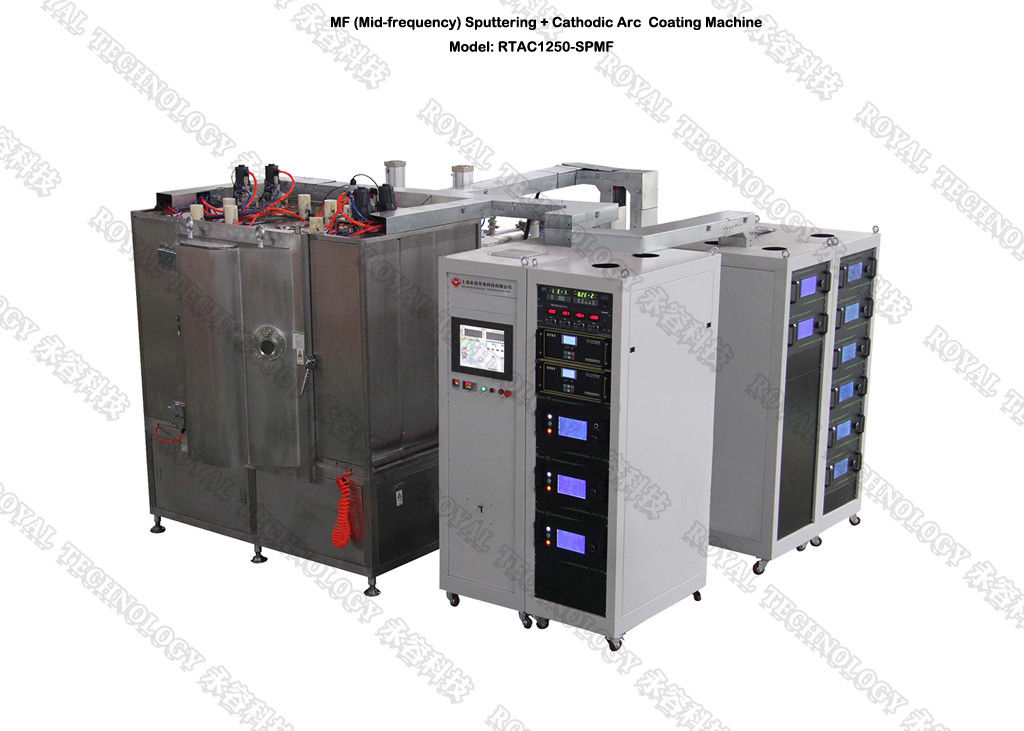

CE Certified IPG Gold Plating Machine / Stainless Steel Gold Sputtering Machine 3

CE Certified IPG Gold Plating Machine / Stainless Steel Gold Sputtering Machine 4

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
