Brass Faucets PVD Coating Machine / Copper Faucets Coating Equipment / Chroming Ion Plating on Cu Faucets
Faucets as important consumption of our daily life, consumers and manufactures are more focusing on the creative design & surface treatment process. PVD vacuum Ion Plating is used to replace the traditional chemical eletroplating is more recommended due to its low production cost, 100% friendly environmentally, flexible operation features.
PVD vacuum coatings properties
Brass Faucets PVD Coating Machine Advantages:
1. High ionization rate, high through put,
2. Large capacity to satisfy mass production,
3. Excellent film adhesion and various colors are available.
4. Coating lMateria: Chrome, Titanium, Zr , TiAl, etc.
Royal technology provides you not only the coating system but the total coating solutions, we offer you turnkey-service project.
From polishing line, pre-cleaning line, high temperature drying ovens, Ion plating coating plant. Each process's proper operation you want, we has experts to guide you.
Brass Faucets PVD Coating Machine - RTAC1820 Specifications
| MODEL | RTAC1800 | ||
| MATERIAL | Stainless Steel (S304) | ||
| CHAMBER SIZE | Φ1800*180mm (H) | ||
| CHAMBER TYPE | Cylinder, vertical, single door | ||
| SINGLE PUMP PACKAGE | Rotary Piston Vacuum Pump | ||
| Roots Vacuum Pump | |||
| Turbo Molecular Pump + Holding Pump | |||
| TECHNOLOGY | Cathodic Arc Evaporation, Ion Plating | ||
| POWER SUPPLY | Arc sources power supply + Bias Power supply | ||
| DEPOSITION SOURCE | 18 Cathodic Arc Sources | ||
| CONTROL | PLC+Touch Screen | ||
| GAS | Gas Mass Flow Meters | ||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||
| COOLING | Cooling Water | ||
| CLEANING | Glow Discharge Cleaning | ||
| POWER MAX. | 100 KW | ||
|
AVERAGE POWER CONSUMPTION |
65KW |
||

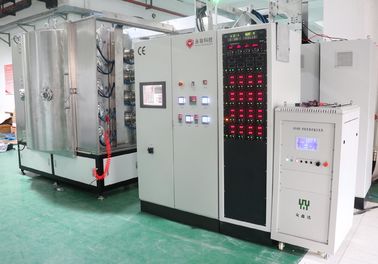

The faucet PVD vacuum coating machine model: RTAC1820 is available for large size of newest hotel/bathroom faucets.
Customized sizes of machine are available based on product dimensions and capacity requests.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
