Vacuum Flask Magnetron Sputtering System , PVD Cooper  Deposition Equipment, PVD Sputtering Copper Deposition Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 1-DOOR
Material: Stainless Steel 304/316
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Name: Copper Magnetron Sputtering System
Technology: Vacuum Flask PVD Cooper Deposition
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
High Light:

magnetron sputtering machine

,

vacuum deposition equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS1612
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Product Description

Vacuum Flask Copper Magnetron Sputtering System / Vacuum Flask PVD Cooper Deposition



Thanks for the Magnetron Sputtering Technology which represents a real alternative to
definitively substitute Chrome/Silver/Gold electroplating coating onto metals/ceramics/
resin/plaster/glass and plastic materials which is considered to be a strong pollutant and a health hazard.

The most important is the added value brings to producers. The Sputtering PVD processes
enable almost unlimited production of coatings on any type of complex surface. Mostly, for
aesthetic (decorative), functional coating applications.



Vacuum Flask Copper Magnetron Sputtering System - RTSP1618 is designed and produced exclusively for vacuum flask cooper deposition. The depositing layer thickness is up to 2~3 microns which gives extremely good thermal heat preservation.

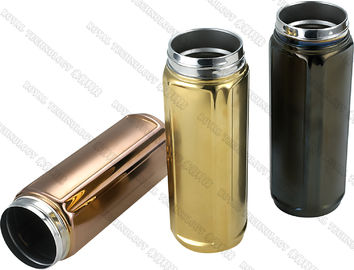

When add the cathodic arc sources, it can be used for vacuum flask exterior coating to generate various decorative colors: black, gold, blue, rainbow etc.





Vacuum Flask Copper Magnetron Sputtering Technology Advantages
1. It is totally economically efficient generating the thinnest and most uniform coating films;
2. It is a dry coating process at low temperature in a vacuum chamber;
3. It offers great versatility, can be used for the deposition of conductive or non-conductive materials on any type

of substrates, like: metals, ceramics, plastic materials.
4. Multi layers coating are available.



Vacuum Flask Copper Magnetron Sputtering System Coating targets:

Chrome , Nickel, Silver, Gold, Titanium targets are applied to generate the high quality thin films on
plastic parts.



MODEL RTSP-1618
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*1800mm (H)
PUMP SYSTEM Rotary Piston Vacuum Pump
  Rotary Vane Vacuum Pump
  Roots Vacuum Pump
  Diffusion Pump
TECHNOLOGY Magnetron Sputtering Coating+Glow discharging
CONTROL PLC(Programmable Logic Controller) + Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Water
CLEANING Plasma Source
POWER MAX. 145KW
AVERAGE POWER CONSUMPTION 70KW

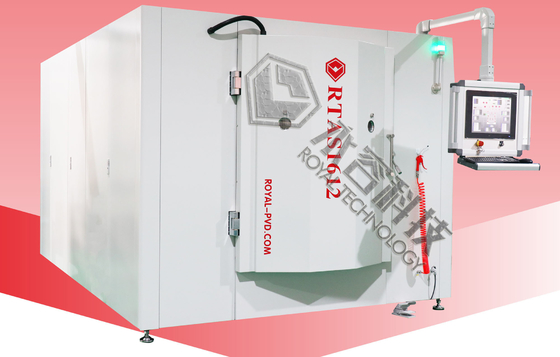

Vacuum Flask Magnetron Sputtering System , PVD Cooper  Deposition Equipment, PVD Sputtering Copper Deposition Machine 0

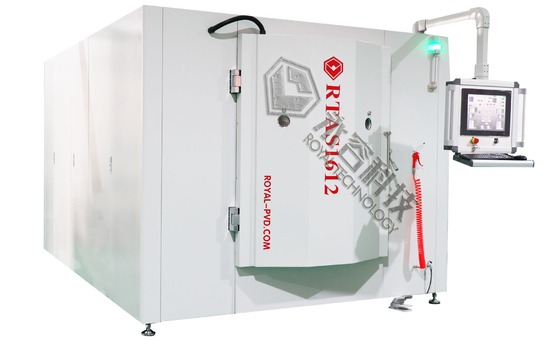

Vacuum Flask Magnetron Sputtering System , PVD Cooper  Deposition Equipment, PVD Sputtering Copper Deposition Machine 1








Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
