Automotive Mirror Magnetron Sputtering Coating Machine / PVD Chrome Car Mirrors Sputtering System
Magnetron Sputtering Coating Technology enables for mirros high throughput demand due to its fast deposition rate. Unlikely the in-line coating line, the low production cost makes it possible for the entrepreneurs who are aming to start the business at a low investment.
Magnetron Sputtering Coater Key Features:
Hight througput and large bath capability.Highly transparent, electrically conductive, highly reflective solar collectors, selectively reflective corrosion-proof, anti-glaring blue.
Automotive Mirror Magnetron Sputtering Coating Machine General Information
Various coating processes for automotive mirrors has been developed and qualified. Chromium PVD
coating onto float glass substrates as reflection layer is accomplished by DC-Magnetron sputtering. Colour appearance of the layers can be generated by introducing of reactive gases, like Argon, Oxgen and Nitrogen.
Automotive Mirror Magnetron Sputtering Coating Machine Specifications
| MODEL | RTSP-1616 |
| TECHNOLOGY | DC Unbalanced Magnetron Sputtering Deposition and Ion Source Plasma Cleaning |
| MATERIAL | Stainless Steel (S304) |
| CHAMBER SIZE | Φ1600*1600mm (H) |

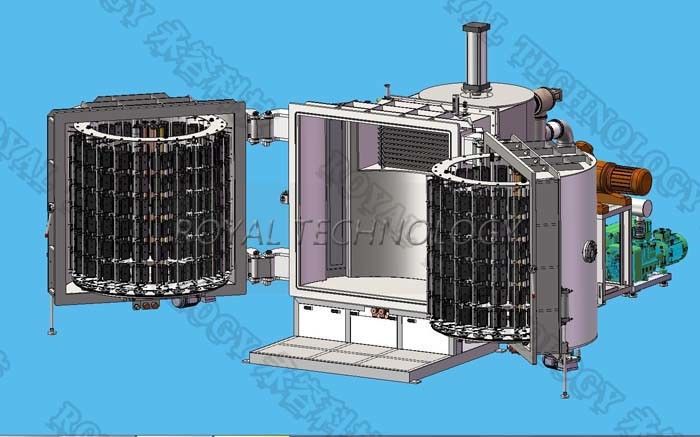

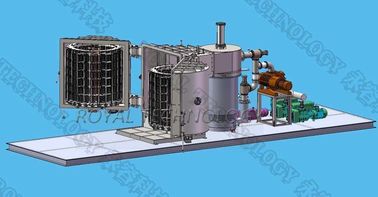

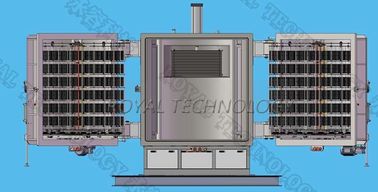

| CHAMBER TYPE | Cylinder, vertical, 2- doors |
| DEPOSITION SYSTEM | Planetary Driving or Revolution Driving |
| DEPOSITION MATERIAL | Silver, Copper, Chrome, Stainless Steel, Aluminum etc. |
| DEPOSITION SOURCE | Cylinder or Planar Sputtering Targets ( 2sets ) |
| DC POWER SUPPLY | 2 sets * 48KW |
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen |
| PUMP SYSTEM | Rotary Piston Vacuum Pump |
| Rotary Vane Vacuum Pump | |
| Roots Vacuum Pump | |
| Turbo Molecular High Vacuum Pump | |
| Brooks Polycold for Optional | |
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment |
| COOLING | Cooling water |
| POWER MAX. | 115KW (Approx.) |
| AVERAGE POWER CONSUMPTION | 70KW (Approx.) |
| GROSS WEIGHT | 9.0T (Approx.) |
| FOOT PRINT | ( L*W*H) 4500*2200*2400MM |
| POWER ELECTRICAL | 380V/3 phases/50HZ ( EU-CE compliant) |

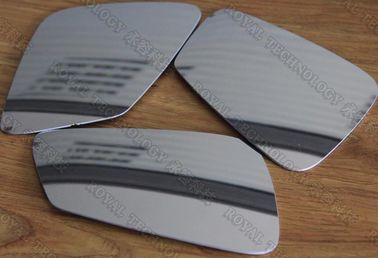

Automotive Mirror Coating Sample:
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
