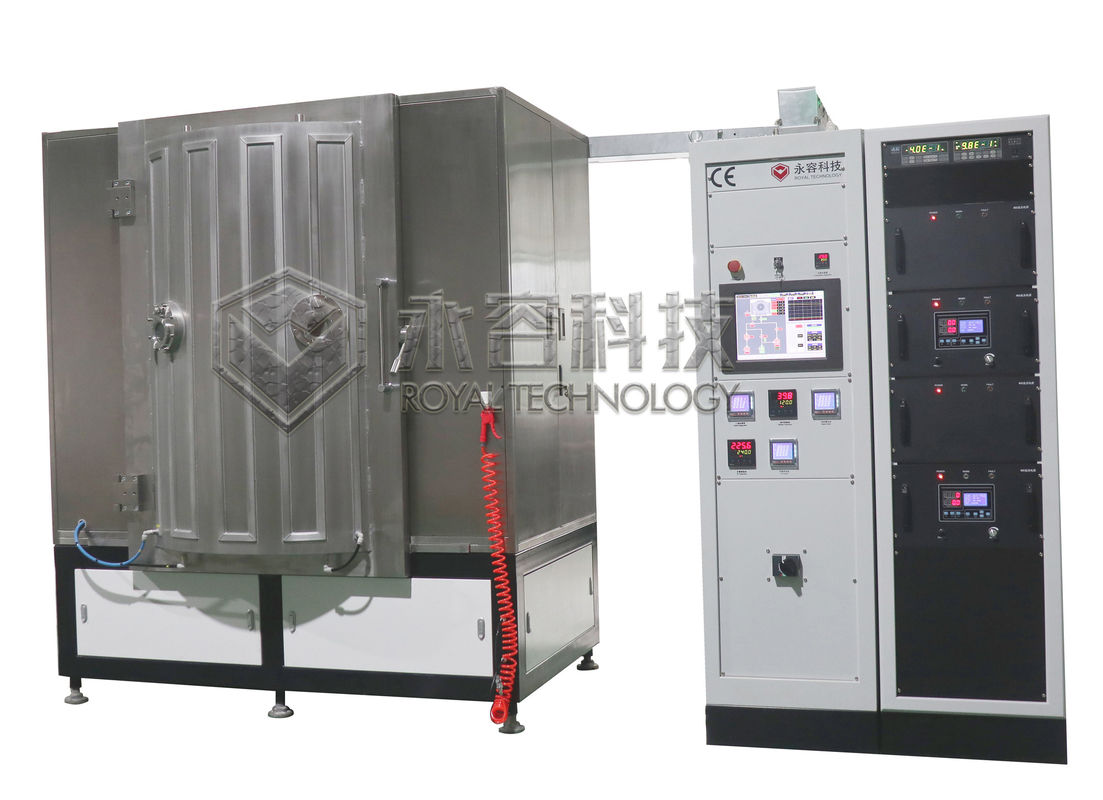

DC Magnetron Sputtering Chrome Mirrors / Vehicle Mirror PVD Vacuum Sputtering Plant
Vehicle Mirror PVD Vacuum Sputtering System Information
Various coating processes for automotive mirrors has been developed and qualified. Chromium PVD
coating onto float glass substrates as reflection layer is accomplished by DC-Magnetron sputtering. Colour appearance of the layers can be generated by introducing of reactive gases, like Argon, Oxgen and Nitrogen.
The RTSP1616 machine has large volume, it can coat 80 ~ 120sqm per day.
Vehicle Mirror PVD Coatings Properties

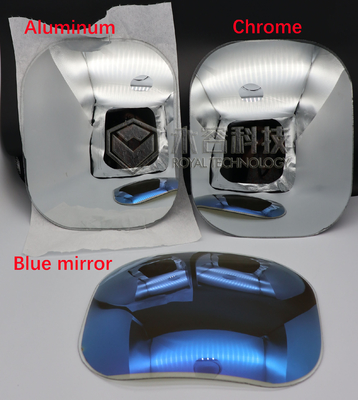

Highly transparent, electrically conductive, highly reflective solar collectors, selectively reflective corrosion-proof, anti-glaring blue rear-view car mirrors.
Vehicle Mirror PVD Vacuum Sputtering System Specifications
|TECHNOLOGY||DC Unbalanced Magnetron Sputtering Deposition and Ion Source Plasma Cleaning|
|MATERIAL||Stainless Steel (S304)|

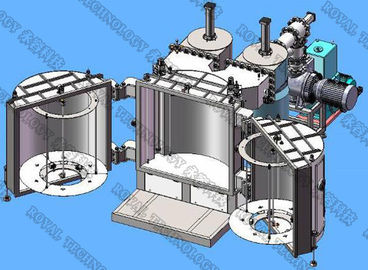

|CHAMBER SIZE||Φ1600*1600mm (H)|
|CHAMBER TYPE||Cylinder, vertical single door|
|EVAPORTATION SYSTEM||Planetary Driving or Revolution Driving|
|DEPOSITION MATERIAL||Silver, Copper, Chrome, Stainless Steel, Aluminum etc.|
|DEPOSITION SOURCE||Cylinder or Plannar Sputtering Targets (2sets)|
|DC POWER SUPPLY||2 sets * 40KW|
|CONTROL||PLC(Programmable Logic Controller) + Touch Screen|
|PUMP SYSTEM||Rotary Piston Vacuum Pump|
|Rotary Vane Vacuum Pump|
|Roots Vacuum Pump|
|Turbo Molecular High Vacuum Pump|
|Brooks Polycold for Optional|
|SAFETY SYSTEM||Numerous safety interlocks to protect operators and equipment|
|POWER MAX.||115KW (Approx.)|
|AVERAGE POWER CONSUMPTION||70KW (Approx.)|
|GROSS WEIGHT||9.0T (Approx.)|
|FOOT PRINT||( L*W*H) 4500*2200*2400MM|
|POWER ELECTRICAL||380V/3 phases/50HZ ( EU-CE compliant)|
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
