Aluminum coated plastic film and paper are essential for modern packaging industries.
We have developed some of the latest technology for the packaging industry, as our standard of living changes, so do the products we use.
While many packages have changed from the relative heavy aluminum foil and aluminum/plastic laminates into the latest technology for much lighter and very thin metallized plastic films and papers.
This has lowered the amount of raw material needed and therefore the overall cost of material used in the packaging today, while allowing it to become stronger and more protective.

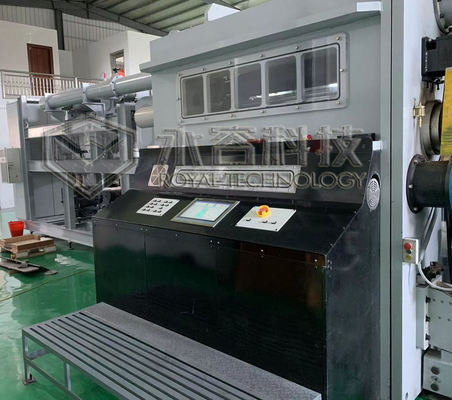

The machine RT-R2R machine is exclusive designed and used for packaging papers- one side coating, like: labels, cigarette, food etc. high quality packaging materials.
Technical Specifications - Square Chamber | ||||||||||||||
Item | Description | R2R Metallizing Machine Models | ||||||||||||
RT-R2R-1100S | RT-R2R-1350S | RT-R2R-1700S | RT-R2R-2100S | RT-R2R-2200S | ||||||||||
Substrates Coatings | Substrate Materials Available ( thickness: μm) | PET:12~60 BOPP:20~60 PVC:20~60 CPP:20~60 | PET:12~60 BOPP:20~60 PVC:20~60 CPP:20~60 | PET:12~60 BOPP:20~60 PVC:20~60 CPP:20~60 | PET:12~60 BOPP:20~60 PVC:20~60 CPP:20~60 | PET:12~60 BOPP:20~60 PVC:20~60 CPP:20~60 | PET:12~60 BOPP:20~60 PVC:20~60 CPP:20~60 | |||||||
Substrate width (Max.)mm | 1100 | 1350 | 1700 | 2050 | 2200 | 2500 | ||||||||
Roll Diameter (Max.)mm | 800 | 800 | 800 | 800 | 800 | 800 | ||||||||
Core Diameter(inner)mm | 3"/6" | 3"/6" | 3"/6" | 3"/6" | 3"/6" | 3"/6" | ||||||||
Normal Coating speed (m/min.) | 400~600 | 400~600 | 400~600 | 400~600 | 400~600 | 400~600 | ||||||||
Max. Coating speed (m/min.) | 720 | 720 | 720 | 720 | 720 | 720 | ||||||||
Coating Rollers Temperature (℃) | -20 to 25 | -20 to 25 | -20 to 25 | -20 to 25 | -20 to 25 | -20 to 25 | ||||||||
Coating Chamber Ultimate Pressure(Pa) | 5*10-3 | 5*10-3 | 5*10-3 | 5*10-3 | 5*10-3 | 5*10-3 | ||||||||
Pumping Speed( @ condition of without loading, clean, room temperature) | < 8 mins, from atm to 7*10-2 | < 8 mins, from atm to 7*10-2 | < 8 mins, from atm to 7*10-2 | < 8 mins, from atm to 7*10-2 | < 8 mins, from atm to 7*10-2 | < 8 mins, from atm to 7*10-2 | ||||||||
Vacuum Evaporation System | Evaporation Souce (Crucible) Qty.: groups | BN Boron nitride: 13 | BN: 16 | BN:20 | BN:24 | BN: 25 | BN: 28 | |||||||
Evaporation Power (KW) | 15/group | 15/group | 15/group | 15/group | 15/group | 15/group | ||||||||
Evaporation Material (Aluminum wire) | 1.8~2.0, 99.98%(purity) |
Key Configurations:
1. Operation platform: including HMI operation desk, PLC + IPC
2. High vacuum deposition chamber and winding chamber
3. Vacuum pumping packages 1# and 2# for deposition and winding chambers
4. Power distribution cabinets
5. Web drive carriage and electrical cabinets
6. High vacuum pump: Diffusion pump for deposition chamber
7. Cooling & heating system: cold trap, cryopump, or liquid nitrigen cooling system
3D design rendering photo
Coating Samples
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
