Ceramic Flatware PVD Coating Equipment / Ceramic Spoon Ion Plating Machine
Royal Technology provides Ceramic Flatware PVD Coating Equipment on various of ceramic products:
ceramic sanitary, ceramic flatwares, tablewares, kitchewares, ceramic vase etc.
RTAC-SPMF sesries machines deposition sources are: steered arc cathodes; MF sputtering cathodes with balanced/unblanced magnetic closed filed; Ion source device as an important device to generate plasma filed which highly enchance the film adhesion. We have developed exclusively Ion source unit or use Gencoa company's product.
With the Ceramic Flatware PVD Coating Equipment:
1. It can deposit a veriety of pure metal films and alloy films. If the vacuum chamber through a veriety of reactive gases, and can coating various compounds film. It has been applied not only on the lighter but to the construction and daily necessities decoration plating (imitation gold plated, plating a veriety of colors,....), mechanical tool coatings, anti-corrosion coatings in nuclear industry, solid lubricating coatings in the aerospace industry as well as other coatings of various funcational coatings.
2. Advantage: High deposition rate, High ionization rate, Easy operation, High productivity and Low cost. No waste gases and water.Magnetron sputtering stably at low temperature.
3. Operation Modes:
(2) Automatic bombardment
(3) Accurate control of various process time
4. Coating colors: Gold, Rose gold, Black gold, Coffee, Silver, Champagne gold, Multicolor, etc.
5. Coating films: titanium nitride film, titanium carbide film, zirconium nitride film, titanium aluminum film,
chromium nitride, and other superhard functional metal film ( the workpiece coated by ion coating machine can improved hardness, wear resistance, anti-corrosion and more beautiful.)
6. Coating Film properties: Strong adhesion , good compactness, well repeatability and consistence of color
High efficiency deposition,high bright coating.
Ceramic Flatware PVD Coating Equipment Models
|Model||Size(mm)||Number of Planetary Rods||Cathodic Arc Sources||Sputtering Cathodes||Ion Source||Bias Power Supply (kVA)|
|RTAC950-SP||950xH1350 2-doors||3||8||4 Planar||Linear Anode||1*36|
|RTAC1213-SP||1250xH1350 2-doors||48||8||4 Planar||Linear Anode||1*30, AE|
|RTAC1250-SP||1250xH1250||6,8,12,16||8||4~8 Cylinder||depends on coating process and product||1*36|
|RTAC1616-SP||1600xH1600||6*6||9||2 Cylinder or Planar||1*48|

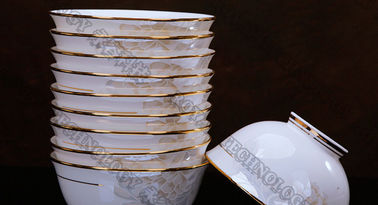

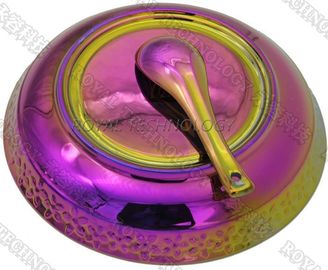

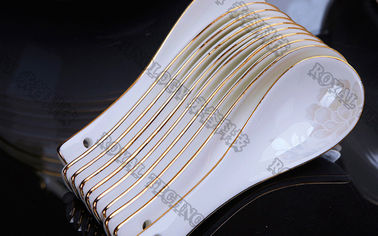

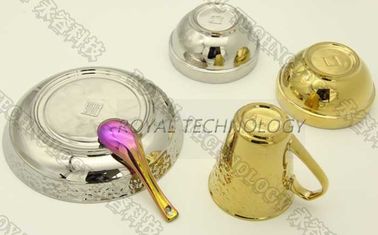

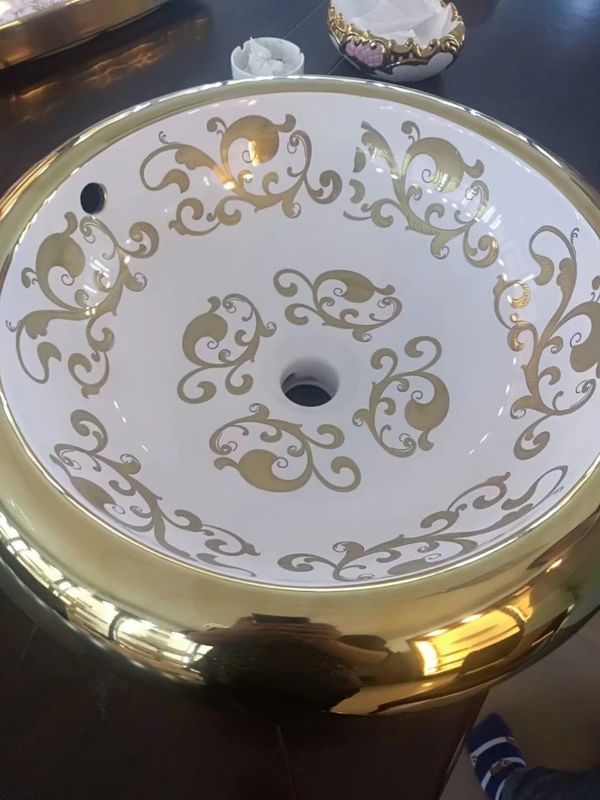

With our RTAC-SPMF sesries machines, we assisted our customers developed various PVD coatings, the standard colors range are like below:
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
