PVD Thin Film Deposition System Sputtering And Thermal Evaporating Vacuum Coating High productivity PVD Coating Machine

1
MOQ
Negotiable
Price
PVD Thin Film Deposition System Sputtering And Thermal Evaporating Vacuum Coating  High productivity PVD Coating Machine
Features Gallery Product Description Request A Quote
Features
Specifications

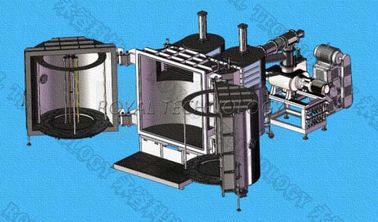

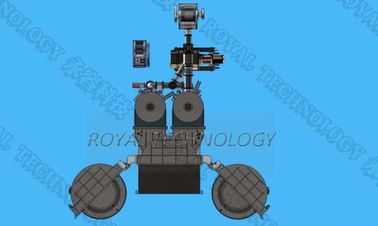

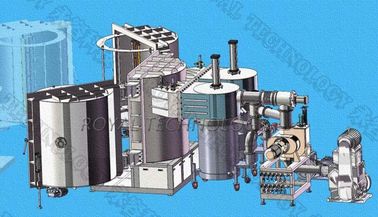

Features: 2-doors Structure, Vertical Chamber, For High Productivity
Technology: DC Sputter Cathodes And Thermal Evaporated Sources
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

thin film coating equipment

,

thin film deposition equipment

Basic Infomation
Place of Origin: China
Brand Name: ROYAL
Certification: CE, UL Standard
Model Number: RTEP1616-SP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 12 weeks
Product Description



PVD Thin Film Deposition System Sputtering And Thermal Evaporating Vacuum Coating Equipment



PVD Thin Film Deposition System, Sputtering and Thermal Evaporating Vacuum Coating Equipment





PVD Thin Film Deposition System contains the deposition sources of Tungsten filament evaporation source and DC magnetron sputter sources (RF sputtering cathodes are for option). This equipment is mostly used to deposit thin films on plastic parts, glass, metal or foils with the depositing materials like: pure metal Al, Cr, Cu, Ag, Au, Ti etc.  Evaporation sources generally to obtain high reflective thin films on products surfaces or conductive films, or give a metallic outlook image.  Except that, the sputtering sources condense a wide range of semiconductor materials and dielectrics including transparent conductive oxides,  etc.





PVD Thin Film Deposition System Configurations:



Performance

1. Ultimate Vacuum Pressure:  better than 5.0×10-6 Torr.

2. Operating Vacuum Pressure: 1.0×10-4 Torr.

3. Pumping down Time from 1 atm to 1.0×10-4 Torr≤3 minutes  ( room temperature, dry, clean and empty chamber)

4. Metalizing material ( evaporation): Al, Cr, Sn, Ti, SS, Cu… etc.

5. Operating Model:  Full Automatically /Semi-Auto/ Manually



lStructure

The vacuum coating machine contains key completed system listed below:





1. Vacuum Chamber
1.1 Size:  Inner Diameter 1600mm

         Inner Height 1600mm

1.2 Material:  Vacuum Chamber  SUS304 (SS41 mild steel for option)

            Door and flanges SUS304 (SS41 mild steel for option)

       Chamber strengthen structure: SS41 mild steel, with painted finishing surface treatment.

  Chamber chassis  SS41 mild steel with painted finishing surface treatment.

1.3  Shield: SUS304



 1.4 View Window: on chamber door

1.5  Vacuum Chamber Venting Valve, including silencer

1.6 Door  SUS304 material

2. Rouhging Vacuum Pumping System

3. High Vacuum Pumping System

4. Electrical Control and Operation System- PLC+ Touch Screen

4.1  Main circuit: None-fuse breaker switch, electromagnetic switch, C/T in series type

4.2  Evaporation Power: 35kVA

4.3  Evaporation Control System

4.4  Operation System:  Touch Screen + PLC, recipe control and data logging, Auto shutdown, auto evacuation, auto coating

4.5  Vacuum Pressure Measuring System

     Vacuum Gauge: Pirani + Penning gauge

     Thermocouple Gauge: 760 Torr ~ 5*10-4 Torr

4.6 Alarm System:  Compressed air pressure , Cooling water flow, Mis-operation



4.7 Power Load Indicator:  Voltage indicator and load current indicator



5. Deposition System

5.1 Tungsten filament evaporation source

5.2 Thermal evaporation materials: wires, rings, rods etc.

5.3 Sputter sources (DC/MF power driven)



6. Sub-System

6.1  Air Compressed Valve Control System

6.2  Cooling Water System-Water flow pipe and switch valve system

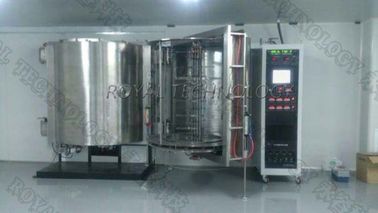

 PVD Thin Film Deposition System Sputtering And Thermal Evaporating Vacuum Coating  High productivity PVD Coating Machine 0

PVD Thin Film Deposition System Sputtering And Thermal Evaporating Vacuum Coating  High productivity PVD Coating Machine 1



Learn more about the machine and applications available, please contact us now.
