Bell Jar Vacuum Metallizing System C60 Inductive Deposition Machine CE

1 set
Bell Jar Vacuum Metallizing System C60 Inductive Deposition Machine CE
Features Gallery Product Description Request A Quote
Evaporation Source: Copper Crucible
Deposition Materials: Carbon Powder, C60
Applications: Semiconductors, Sensors, Fuel Cells, And Optical Coatings.
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

vacuum metallizing machine


copper plating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: C60EP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Product Description

                                           Inductive Evaporation Coating Machine


    No application of C60 has been commercialized. In the medical field, elements such as helium (that can be detected in minute quantities) can be used as chemical tracers in impregnated buckyballs.
Water-soluble derivatives of C60 were discovered to exert an inhibition on the three isoforms of nitric oxide synthase, with slightly different potencies.[41]
The optical absorption properties of C60 match solar spectrum in a way that suggests that C60-based films could be useful for photovoltaic applications. Because of its high electronic affinity [42] it is one of the most common electron acceptors used in donor/acceptor based solar cells. Conversion efficiencies up to 5.7% have been reported in C60–polymer cells.    ------------- From Wikipedia




Induction heating is widely used in different fields due to high process productivity and universality, cleanness and possibility of full automation. As one method of PVD thermal evaporation technology, the process is friendly for environment. Since the induction allows reaching temperature of 2000℃ and more, this method is very suitable for industrial production and scientific researches.


The RTEP0404 Induction Evaporation Coating Machine is designed for C60 evaporating deposition on varies of materials. C60 manufactures provides R&D and testing results for prospective. A strong tool assisting them to expand new applied industries.

The first set is produced for Shanghai University. Industrial production model is under processing.




Main Applications:


To deposit thin film layers and coatings on

  • Semiconductors
  • Glass
  • Polymers
  • Electronics
  • Optics
  • Other Industrial products including food packaging films, metal strips etc.

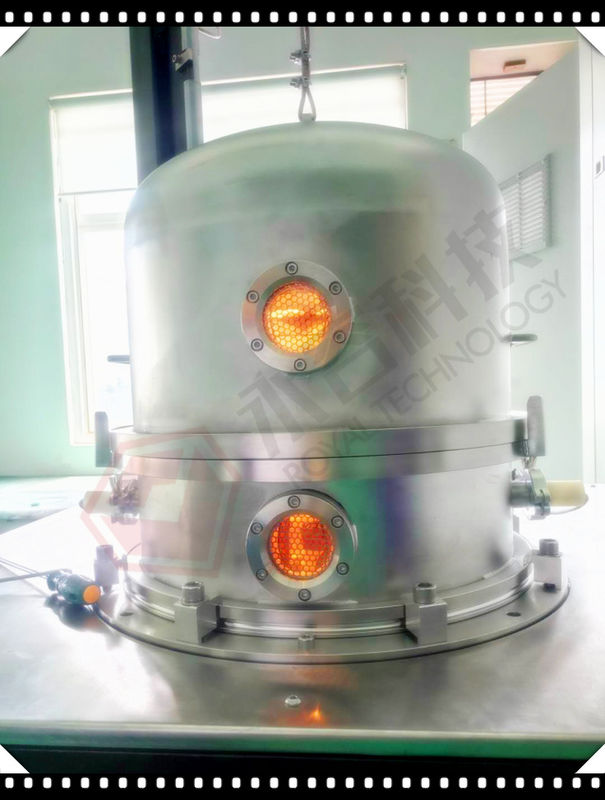

Vertical orientation, Bell Jar Model, Top Opening


Design Features:

  • Ultra-high ultimate vacuum pressure : up to 9.0*10-5 Pa;
  • Fast heating up devices for a good adhesion;
  • Robust, compact and solid coating system;
  • Exclusively induction heating evaporation source design for C60 deposition;
  • Induction evaporator’s power: RF currency


Technical Specifications:

  • Performance

1. Ultimate Vacuum Pressure: better than 9.0*10-5 Pa;

  • Operating Vacuum Pressure: 6.0*10-4 Pa ~9.0*10-4 Pa;

Base Vacuum pressure: 3.0*10-4 Pa

3. Pumping down Time: from 1 atm to 2.0×10-3 Pa≤25 minutes ( room temperature, dry, clean and empty chamber)

4. Deposition source: induction evaporator, crucible

5. Operating Model: Manually

6. Heating: from room temperature up to max. 1000℃,

7. Evaporation Power:  RF radio frequency and power supply

8. Working Gas: Ar




  • Structure

The vacuum coating machine contains key completed system listed below:


1. Vacuum Chamber

1.1 Size: Inner Diameter 400mm

     Inner Height:400mm

1.2 Material: Vacuum Chamber SUS304

Chamber strengthen structure: SS41 mild steel, with painted finishing surface treatment.

Chamber chassis SS41 mild steel with painted finishing surface treatment.

1.3 Evaporation Shield : SUS304

1.4 View Window: on chamber door

1.5 Vacuum Chamber Venting Valve (including silencer)


2. Roughing Vacuum Pumping System:
Two-stage Oil Rotary Vane Pump


3. High Vacuum Pumping System: Turbo Molecular Pump


4. Electrical Control and Operation System- HMI operation unit


4.1 Main circuit: None-fuse breaker switch, electromagnetic switch, C/T in series type

4.2 Evaporation Power

4.3 Evaporation Control System

4.4 Operation System: PLC

4.5 Measuring System

Vacuum Pressure : Vacuum Gauge: Pirani + Penning gauge

4.6 Alarm System: Compressed air pressure , Cooling water flow, Mis-operation

4.7 Power Load Indicator: Voltage indicator and load current indicator



5. Deposition System

5.1 Deposition source: induction thermal evaporator

5.2 Deposition material: C60


6. Sub-System

6.1 Air Compressed Valve Control System

6.2 Cooling Water System:Water flow pipe and switch valve system

6.3 Working gas: Ar (>99.99%)


7. Working Environment

Compressed Air: 5~8kg/cm2

Cooling Water: Water-In Temperature: 20~25℃, 200 Liter/min,
Water-In Pressure: 2~3 kg/cm2,


Power: 3 Phase 380V 50Hz(60Hz), 8kVA, average power consumption: 3kVA

Installation Area: (L*W*H) 2000*200*2000mm

         Exhaust: Vent for mechanical pumps


Automatically pulling Up-Down Unit to Open/Close the chamber


Bell Jar Vacuum Metallizing System C60 Inductive Deposition Machine CE 0


Electrical Enclosure System:


Bell Jar Vacuum Metallizing System C60 Inductive Deposition Machine CE 1


Security Tips:


Bell Jar Vacuum Metallizing System C60 Inductive Deposition Machine CE 2


Shileding Protection from RF radiation


Bell Jar Vacuum Metallizing System C60 Inductive Deposition Machine CE 3


We have been endeavored to design and develop the most suitable coating system which meet our customer high production efficiency and coating quality requests.


If customized coating system is required by your company, please share your thoughts, ideas with our team and submit your products specifications, we will work together to sort out the best solutions.
