Cathodic Arc Deposition Equipment
Created with Pixso.

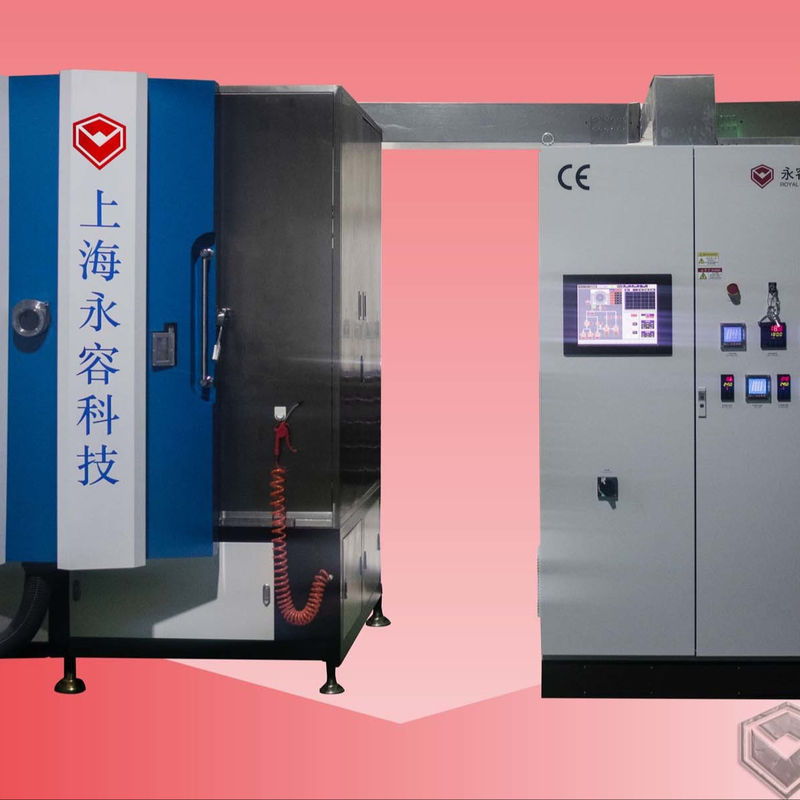

ABS Chromed PVD black coating Machine

ABS Chromed PVD black coating Machine

Brand Name: ROYAL
Model Number: RTAC
MOQ: 1 set
Price: negotiable
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Detail Information
Place of Origin:
Made in China
Certification:
CE certification
Substrate Materials:
ABS Plastic Parts, Brass, Zinc Alloy, Stainless Steel, Metal Alloy, Ceramic, Glass
Application:
Sanitary Fittings, Brass Faucets, Bathroom Products,
Coating Films:
TiN, Zr,T ICN, ZrCN, CrN, CrCN
PVD Plating Colors:
Gold, Rose Gold, Silver, Black, Blue, Brown, Copper, Brass
Factory Location:
Shanghai City, China
Worldwide Service:
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service:
Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty:
Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM:
Available, We Support Tailor Made Design And Fabrication
Packaging Details:
Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Supply Ability:
15 sets per month
Highlight:

vacuum deposition system

,

pvd coating equipment

Product Description



                                           Bathroom Fittings PVD Plating Machine



Summary:



PVD Plating on bathroom fittings products are mainly for decoration coatings on the metal, ABS parts. The ranged colors are silver, black, gold. When introducing different reactive gas and target materials the colors are changing slowly, during the deposition changing period, to get the idea desired colors.

This is operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available. So that the AUTO COATING model is possible after the recipes is logged in. The full automatically operation is very helpful for primary PVD operators.



The specifications:



1. Arc ( Ion Plating ) series equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate

carrier etc.

2. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.

3. Coating Types: metal & alloy coatings, multiple layers coatings.

4. Coating Colors: gold, black, brown, grey, Chrome colors etc

5. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials

6. Coating properties: high shiny and bright colors, strong adhesion & excellent scratch protection.



Technical Advantages



1. Strong background of R&D support, focus on details of manufacturing.

2. Robust rotational system design for high up time.

3. Exclusive arc sources to guaranty high coatings quality, none color difference.

4. Powerful pump set for short cycle time and high productivity.

5. Unique design is friendly operation and low maintenance.

6. Turnkey coating solutions.



PVD plating machine planetary rods system (satellite driving model









Keywords: bathroom fittings PVD TiN Gold coating; shower plumbings and shower head Ion Plating system; brass/copper bathroom fixings PVD vacuum coating







RTAC-1416 SPECIFICATION:



MODEL RTAC-1416
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Dia:1400*1600mm (H)
CHAMBER TYPE Cylinder, vertical, single door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE 14 Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM

Numerous safety interlocks to protect operators

and equipment

COOLING Cooling Water
CLEANING Arc Discharge, Ion Source Unit for Option
POWER MAX. 75 KW

AVERAGE POWER

CONSUMPTION

40KW

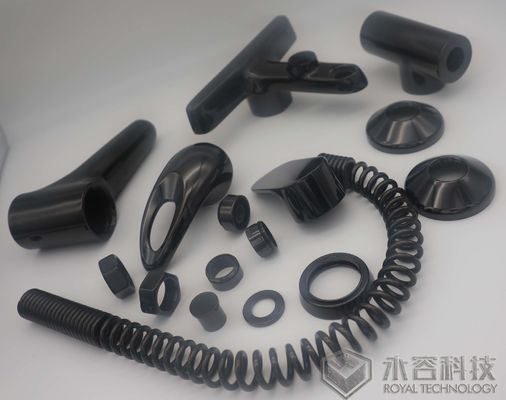

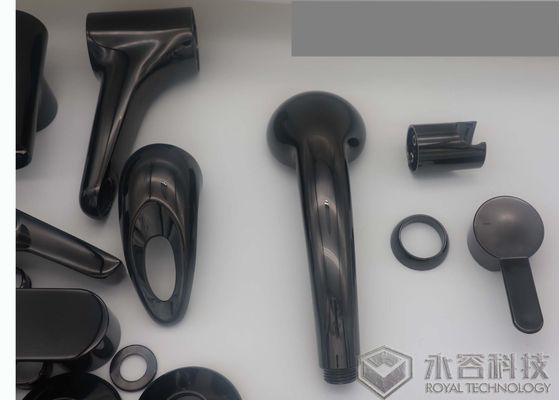

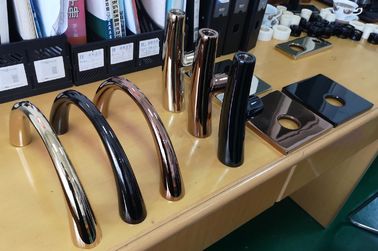

Bathroom Fittings coating samples



ABS Chromed PVD black coating Machine 0



ABS Chromed PVD black coating Machine 1



ABS Chromed PVD black coating Machine 2





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
