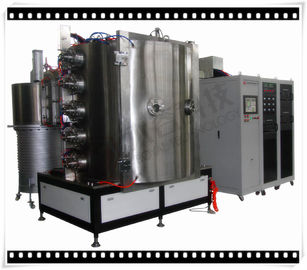

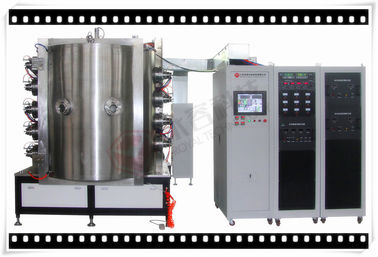

Glass, ceramic and crystal Arc Coating System
The equipment contains S, M, L sizes
Summary: The Crystal Glass Vacuum Coating Machine is used for applications of glass jewelry like glass bracelets, glass necklace, crystal LED lighting, glass mosaic floor tiles, crystal drink ware etc.
The main configuration is cathodic arc evaporation sources, with Ion source unit and bias power for arc discharging to enhance the film adhesion efficiently.
Exclusively vacuum pumping system design concept has low power consumption, which reduce 30% ~ 50% production cost per hour.
Patented Cathodic Arc Power Supply developed for minimize this disadvantage : macro-particles (droplets)formation.
Planar Ion source with high energy for ion bombardment;( for option)
The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.
Cathodic Arc source exclusively designed and produced for maximize the targets utilization ( up to 70% for a some targets)
Bias Power Supply enables a bright colors of final finishing.
Keywords: Glass PVD Ion Plating System; Ceramic Vacuum Coating Unit;
Glass Mirror PVD Coating; ceramic tableware gold plating;
Glass Candle Holder PVD Ion Plating Machine
Glass Beads PVD Plating Machine / Glass Beads Decorative PVD Coating Equipment
Glass Lighting PVD Plating Machine , Crystal Chandelier Arc Plating Equipment
Glass Balls PVD Vacuum Coating Machine
Glass, crystal and ceramic Vacuum Coating Machine / Glass Jewelry Arc Ion Vacuum Plating Equipment
Glass Cups PVD Plating Machine / Crystal Cups Vacuum Coating Equipment / Gold Color by Ion Plating on Crystal, Glass
Glass Bracelet Horizontal PVD Vacuum Coating Machine, Glass Bangle Vacuum Metallizing Equipment
Ceramic washing basins, Ceramic Sanitary ware, ceramic pots, plates ;
Ceramic crafts, ceramic valves
The Standard Models
|Chamber Inner size||900x1100mm||1000x1200mm||1250x1350mm||1400x1600mm||1600x1600mm|
|Power supply type||Arc power supply, filament power supply, pulse bias power supply|
|Structure of vacuum chamber||Vertical front door structure, rear air exhaust system and double-layer water cooling chamber|
|Material of vacuum chamber||stainless steel 304/316L|
|Ultimate vacuum||6.0x10-4Pa (unloading, clean, drying chamber)|
|Vacuum Pumping Speed||from atmosphere to 8.0*10-3Pa ≤15 minutes|
|Vacuum pumping system||Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
|Arc source||6 units or
|8 units or
|10 units or
|14 units or
|16 units or
|Bias power supply||20KW/set||20KW/set||30KW/set||40KW/set||50KW/set|
|Driving Model||Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
|Heating System||Controllable and adjustable from room temperature to 450°C
(PID temperature control)
|MFC||3-path or 4-path process gas flow control and display system, selective automatic gassing system|
|Cooling System||Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)|
|Control mode||Manual/automatic integration mode, touch screen operation, PLC or computer control|
|Alarm and protection||Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function|
|Other technical parameters||Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa|
|Remarks||The specific configuration of coating equipment can be designed according to process requirements of coating products
Other customized machine sizes are vailable based on specified product dimensions and capacity demand.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
