Writing Instruments Ion Plating Machine , Zinc Alloy Brass Pvd Gold Plating Machine

1 set
MOQ
negotiable
Price
Writing Instruments Ion Plating Machine , Zinc Alloy Brass Pvd Gold Plating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Deposition Films: TiN,ZrN Gold, TiAlN Rose Gold, Bronze, TiO Arc Plating
Applications: Ceramic Bathroom Finishes, Glass Mosaics, Glass Candle Holders, Glass Decoration Products,
Film Features: Wear Resistance, Strong Adhesion, Decorative Coating Colors
Technology: Arc Discharging, Cathodic Arc Vacuum Evaporation, PVD Thin Film Condense, Metal Film Plating, Deposition
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

vacuum deposition system

,

hard coating machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 12 sets per month
Product Description

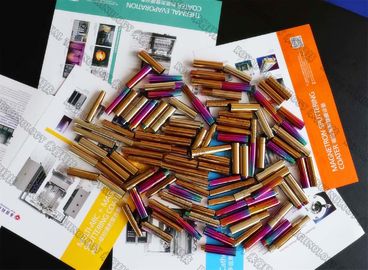

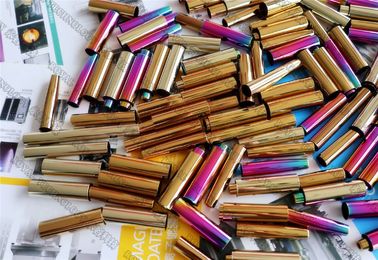

Zinc Alloy, Brass Writing Instruments Gold Plating Machine, Pen TiN Gold, ZrN Gold PVD Plating Equipment



General Infomration:



The PVD ion plating machine is a high efficiency and 100% completely environmentally friendly surface treatment, which generate various colors on the products by solid metal targets and reactive gases.



The high vacuum cathodic arc vacuum coating machine has features of fast deposition, high ionization rate, strong adhesion, droplets less advantages.



  • Our exclusively vacuum pumping system design concept has low power consumption, which reduce 30%~50% production cost per hour.
  • Patented Cathodic Arc Power Supply developed for minimize this disadvantage : macroparticles (droplets)formation.

The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.

  • Cathodic Arc source exclusively designed and produced for maximize the targets utilization ( up to 90% for a some targets)
  • Bias Power Supply and Ion Source Unit for optional enables a bright colors of final finishing.

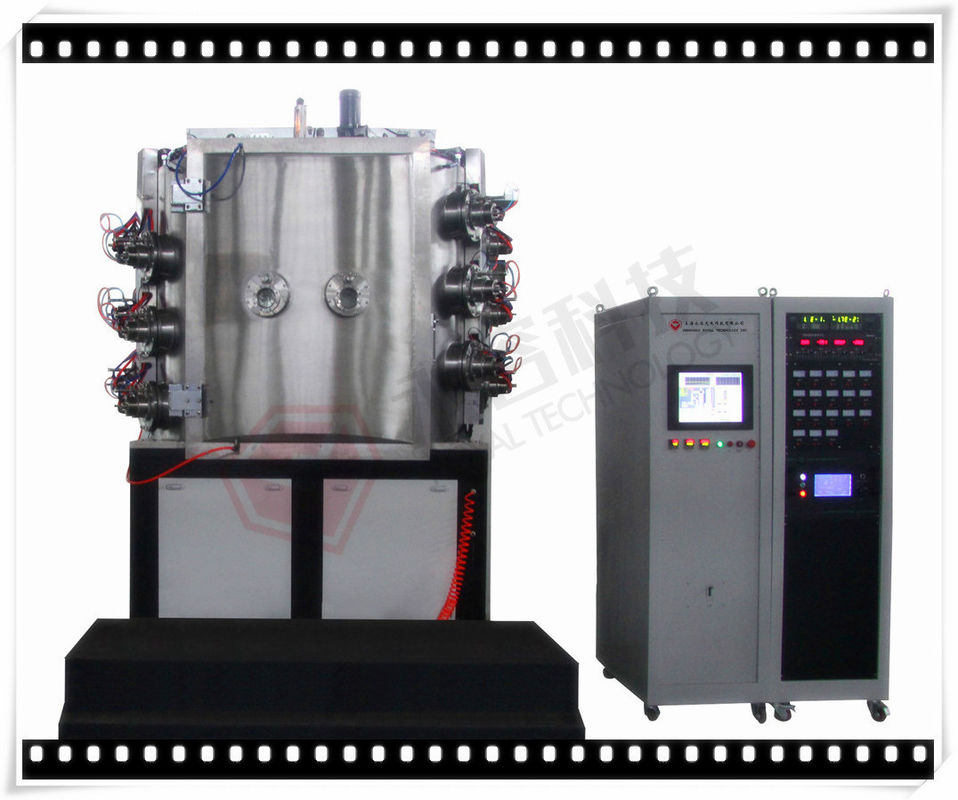

 RTAC series Vacuum Arc Ion Plating Machine / Metal Decoration Ion Plating Machine mainly used to depositvarious metal films and metal -alloy coatings, multiple-layer films.



2.1. Structure: deposition chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc.

2.2. Coating Colors: gold, black, brown, grey, chrome colors etc

2.3. Coatings properties: TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.





The Standard  Models




Model
RTAC-900 RTAC-1000 RTAC-1250 RTAC-1400 RTAC-1600
Chamber Inner size 900x1100mm 1000x1200mm 1250x1350mm 1400x1600mm 1600x1600mm
Power supply type Arc power supply, filament power supply, pulse bias power supply
Structure of vacuum chamber Vertical front door structure, rear air exhaust system and double-layer water cooling chamber
Material of vacuum chamber stainless steel 304/316L
Ultimate vacuum 6.0x10-4Pa (unloading, clean, drying chamber)
Vacuum Pumping Speed from atmosphere to 8.0*10-3Pa ≤15 minutes
Vacuum pumping system Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump
(the specific model can be selected according to customer requirements)
Arc source 6 units or
8 units
8 units or
10 units
10 units or
12 units
14 units or
16 units
16 units or
18 units
Bias power supply 20KW/set 20KW/set 30KW/set 40KW/set 50KW/set
Driving Model Planetary revolution and rotation, variable frequency speed regulation
(controllable and adjustable)
Heating System Controllable and adjustable from room temperature to 450°C
(PID temperature control)
MFC 3-path or 4-path process gas flow control and display system, selective automatic gassing system
Cooling System Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)
Control mode Manual/automatic integration mode, touch screen operation, PLC or computer control
Total power 30KW 35KW 45KW 60KW 75KW
Alarm and protection Alarm water shortage, over current and overvoltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function
Equipment area W2.5m*L3.5m W3m*L4m W4m*L5m W4.5m*L6m W5m*L7m
Other technical parameters Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa
Remarks The specific configuration of coating equipment can be designed according to process requirements of coating products





Writing Instruments Ion Plating Machine , Zinc Alloy Brass Pvd Gold Plating Machine 0





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
