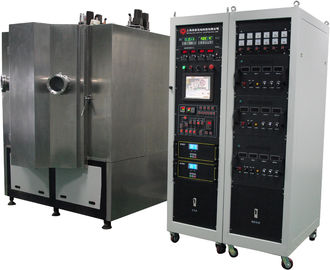

TiCN rose gold PVD Vacuum Coating Machine , CrC deep Black decorative coatings, high abrasion reasitance
1 set
MOQ
TiCN  rose gold PVD Vacuum Coating Machine ,  CrC  deep Black decorative coatings, high abrasion reasitance
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROYAL
Certification: CE Certification
Model Number: RTAS1200
High Light:

small pvd coating machine

,

vacuum coating plant

Payment & Shipping Terms
Packaging Details: Export standard
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Specifications
Deposition Sources: Cylinder Sputtering And Circular Arc Cathodes
Industrial Applications: Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Technology: Magnetron Sputtering
Vacuum: Arc Evaporation + MF
Product Description

             TiCN Pvd Vacuum Coating Machine , CrC true Black color decoration coatings, high abrasion reasitance







1. Introduction



Golf clubs surface treatment has high requirement. Except beautiful outlook and finishing, the abrasion resistant, anti-corrosion properties request the club manufactures never stop looking for advanced coating technology.

Royal Technology Arc Evaporation + Magnetron Sputtering coating equipment mainly for decoration coatings on the metal, ABS parts. The ranged colors are silver, black, gold. When introducing different reactive gas and target materials the colors are changing slowly, during the deposition changing period, to get the idea desired colors.

This is operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available.

Royal Technology provides you not only the coating machine but the total coating solutions, turnkey-project service is available.



2. Some advantages:



PVD sputtering + Ion Plating give a combination of advantages like no other can:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce. 5. Fast deposition rates and high quality surface finishes.



3. Coating technology:



The planar magnetron sputtering cathodic (cylindrical sputtering cathodic) introducing, makes the coating colors is more reflective, coating surface is much more smoother, no spot and needle holes.

High quality coating products satisfy the demand of high level's pursuing.



4. RTAC-SP Standard Specifications



Model Size(mm) Number of Planetary Rods Cathodic Arc Sources Sputtering Cathodes Ion Source Bias Power Supply (kVA)
RTAC950-SP

950xH1350

2-doors

3 8 4 Planar Linear Anode 1*36
RTAC1213-SP

1250xH1350

2-doors

48 8 4 Planar Linear Anode 1*30, AE
RTAC1250-SP 1250xH1250 6,8,12,16 8 4~8 Cylinder depends on coating process and product 1*36
RTAC1008-SP 1000xH800 3 6 2 Cylinder 1*24
RTAC1616-SP 1600xH1600 6*6 9 2 Cylinder or Planar 1*48
RTAC1618-SP 1600x1800 6,8,10 18 4 Cylinder 1*48



Black Color Coating

TiCN  rose gold PVD Vacuum Coating Machine ,  CrC  deep Black decorative coatings, high abrasion reasitance 0





Blue color coating

TiCN  rose gold PVD Vacuum Coating Machine ,  CrC  deep Black decorative coatings, high abrasion reasitance 1

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
