Au Gold Glass Slide Mangetron Sputtering System Pvd Process 1 Door Chamber
10 sets
MOQ
Au Gold Glass Slide Mangetron Sputtering System Pvd Process 1 Door Chamber
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROYAL
Certification: ISO, CE, UL standard
Model Number: RTSP
High Light:

magnetron sputtering equipment

,

vacuum deposition equipment

Payment & Shipping Terms
Packaging Details: standard carton
Delivery Time: 12 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 12 sets per month
Specifications
Features: High Reflection, Strong Adhesion, Decorative Coating Colors
Material: Stainless Steel 304/316
Gold Plating: PVD Gold Sputtering, PVD Process, DC Sputtering Method
Chamber: Vertical Orientation, 1-door
Applications: Life Science Academia & Industrial Markets
Deposition Sources:: DC Magnetron Sputtering Cathodes
Product Description

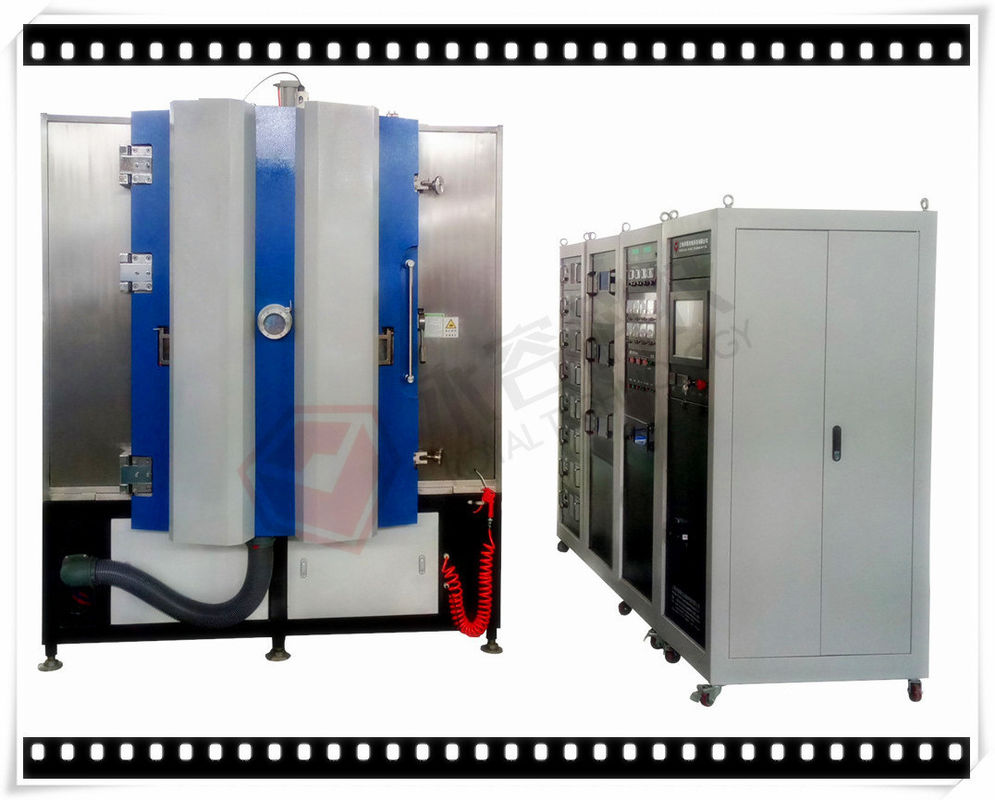

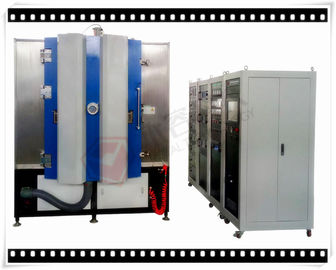

Au Gold Glass slide Mangetron Sputtering System / PVD Au Gold Sputtering Coating Machine



Gold Coated Glass Slides and Silicon Wafers use the PVD process of DC magnetron sputtering to deposit Au metal thin film layer on substrages, like: glass slide, Silicon wafers, metal jewelry, steel, glass and ceramic wares etc. Except Au sputtering, it can also sputter Ag Silver, Cu Copper, Al Aluminum, Cr Chrome, SS stainless steel 316L etc. for conductive film or high luxury decoration applications.

The gold sputtering layer features:

1. Ti or Cr Adhesion layer between substrates and gold layer is strong recommended to improve the adhesion;

2. The Gold layer thickness: ranges from 10~100nm based on different optical applications.

3. The roughtness (RMS - root mean square) < 40Å is expected for most of the applications. For certain scanning probe applicatons a lower roughness might be required, generally 1.5 ~ 4 nm.

4. Gold sputtering layer surface purity: a clean surface is required for applications that employ gold surface modifications. Depending on the PVD process used, level of vacuum in the system, original purity of the gold source, and history of metals used in the particular system the level of gold thin film purity can vary greatly.



As an advanced coating technology which can reduce up to 80% production cost and the most important is the great surface finishing.



Au Gold Mangetron Sputtering System Hightlights:



ROYAL Technology Ag gold sputtering machine is available for manufactures who are looking for high productivity and simple coating solutions.



Robust design, large batches, fast cycle, flexible coating processes are the basic design concepts ROYAL Team has been pursuing.





Au Gold Mangetron Sputtering System Models



Standard Specifications
Model Size(mm) Substrate Jigs(Qty.)

Sputtering

Power(kVA)

Sputtering

Targets(Qty.)

Sputtering

Cathode



MFC Remark
RTSP1250 ROYAL1250xH1250 6 2*30DC/MF 2 Balanced, Unbalanced

2~4,depends

on

coatingprocess

Highquality

decoration

coating

RTSP1400 ROYAL1400xH1250 6,8 2*36DC/MF 2
RTSP1600 ROYAL1600xH1250 6,8,12 2*48DC/MF 2
ROYAL-RTSPCustomized
RTSP900 ROYAL900xH900 1 1*12DC 1 Rectangular 4 l
RTSP1315 ROYAL1300xH1500 1 1*48DC 1 Rectangular 4
RTSP1618 ROYAL1600xH1800 2 2*72DC 2 Rectangular 4
RTSP800 ROYAL800xH800 1 2*50DC 4 Cylinder 3
RTSP1616 ROYAL1600xH1600 6,8 2*36DC 2 Rectangular 2 2-door
