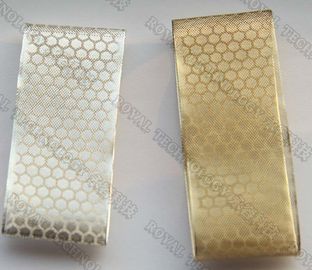

Copper Conductiive Thin Film Magnetron Sputtering Machine, Nylon Textile with Cu thin film deposition

2 sets
MOQ
Copper  Conductiive Thin Film Magnetron Sputtering Machine,  Nylon Textile  with Cu thin film deposition
Features Gallery Product Description Request A Quote
Features
Specifications
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Technology: Magnetron Sputtering
Material: Stainless Steel 304/316
Name: Copper Thin Film Coating Machine
Structure: Vertical Double Door
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

magnetron sputtering machine

,

magnetron sputtering equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE certification
Model Number: RTSP
Payment & Shipping Terms
Packaging Details: pallet
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 10 sets per month
Product Description

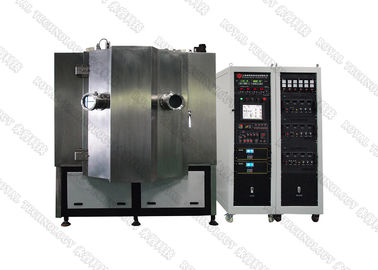

Copper Thin Film Magnetron Sputtering Coating Machine / Nylon Textile Cu Conductive Film Coating Unit



Nylon Textile Copper Magnetron Sputtering Vacuum Coater

1) Film thickness controllability and well repeatability,can be a reliable system of pre-plated thickness of the films and sputtering in a larger surface of uniform film;
2) The adhesion of the film and the substrate is very well. Some of the high energy of sputtered atoms to produce different levels of injection phenomenon, pseudo-diffusion layer formed on the substrate layer of sputtered atoms and substrate atoms fused with each other;
3) Preparation of special material of the film, you can use different materials and sputtering hybrid film, compound film,also can be sputtered into the TiN imitation gold film.

Nylon Textile Copper Magnetron Sputtering Vacuum Coater Specifications


Magnetron Sputtering Coating Machine
Performance RTSP-700RTSP-900RTSP-1000RTSP-1250RTSP-1400RTSP -1600
Size of coating chamber700*H900mm900*H1100mm1000*H1200mm1250*H1350mm1400*H1600mm1600*H1800mm
Power supply typeFilament power supply, pulse bias power supply, DC magnetron power supply, intermediate frequency magnetron power supply, radio frequency magnetron power supply, linear ionization source
Structure of vacuum chamberVertical double door, vertical front door structure, rear air exhaust system
Material of vacuum chamberHigh-quality stainless steel cavity
Limit vacuum6.0*10-4Pa
Pump-down time (no-load)Pump the atmosphere to 8.0*10-3>Pa ≤15 minutes
Vacuum acquisition systemDiffusion pump or molecular pump + Roots pump + Mechanical pump + rotary vane pump (the specific model can be configured according to customer requirements)
Coating modeMagnetron sputtering coating
Film typeMetal film, reactive film, compound film, multilayer film and semiconductor film
Magnetron target typeRectangular magnetron target, cylindrical magnetron target and twin magnetron targets
Magnetron supply power and number of magnetron targetsSelect according to different coating process and customer requirements
Bias power supply10KW/1 unit20KW/1 unit20KW/1 unit30KW/1 unit40KW/1 unit50KW/1unit
Rotating mode of workpiece turntablePlanetary revolution and autorotation, variable frequency speed regulation (controllable and adjustable)
Process gas3-path or 4-path process gas flow control and display system, selective automatic gassing system
Cooling modeWater circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers)
Control modeManual/automatic integration mode, touch screen operation, PLC or computer control
Total power30KW35KW40KW50KW65KW80KW
Alarm and protectionAlarm water shortage, overcurrent and over-voltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function
Equipment areaW2m*L3mW2.5m*L3.5mW3m*L4mW4m*L5mW4.5m*L6mW5m*L7m
Other technical parametersWater Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure: 0.5-0.8MPa
RemarksThe specific configuration of coating equipment can be designed according to process requirements of coating products


Copper  Conductiive Thin Film Magnetron Sputtering Machine,  Nylon Textile  with Cu thin film deposition 0

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
