Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine
1 set
MOQ
negotiable
Price
Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

glass coating equipment

,

chrome plating machine
Payment & Shipping Terms
Packaging Details: carton, case, pallet
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per week
Specifications
Coating Films: Ti, Cr, TiN, TiCN, CrC, TiO Etc.
Vacuum Technology: Arc Evaporation
Deposition Sources: Cathodic Arc Sources
Chamber: Vertical Orientation, 1-door
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine



Glass PVD Plating Machine Coating Color: gold, rose gold, silver, colorful, sapphire blue, black etc.
Glass PVD Plating Machine Coating Films:TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN

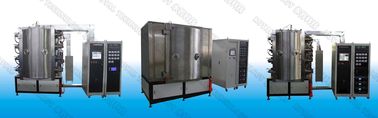

Glass PVD Plating Machine Specifications

MODEL RTAC-1836
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1800*3600mm (H)
CHAMBER TYPE Cylinder, vertical, top opening door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Bias Power Plasma Cleaning
POWER MAX. 150KW

AVERAGE POWER

CONSUMPTION

 90 KW


Remark:Specially tailored according to customers’ products and process requirements.

Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine 0Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine 1Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine 2Arc Evaporation Vacuum Glass Coating Machine, Amber Color, Claret Glassware Arc Plating Machine 3
