Steel Spanner PVD TiN coating, Fixing Tools TiN Plating Machine
1 set
Steel Spanner PVD TiN coating, Fixing Tools TiN Plating Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1000
High Light:

thermal evaporation equipment


vacuum deposition machine

Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Coating Technology: PVD Ion Plating, PVD Vacuum Coating
Model: RT-HTC800
TiN Coatings: High Hardness, High Density And High Uniformity
Product Description

Hard Film Ion Plating Machine Applications:


Hard coatings are becoming widely used in the decorative coating and industrial tools (HSS or HSC materials). The coatings are more resistance to wear and corrosion, to fulfill the tools functions more reliably and for a longer life time, 2-3 times longer than without coating in general.
Cutting Tools: ( Suggested Coatings: AlTiN/TiAlN, TiCN and TiN)

Sawing, milling, CNC insert ( hard turning using), drilling, hobbing and gear cutter etc.
Punching & Forming ( Suggested Coatings: CrN, TiCN and TiN)
Metal Stamping
Moulding ( Plastic Injection Mold) -- ( Suggested Coatings: TiCN and TiN )
Die Casting
Precision Components
Others, like: machine tools, textile machine, re-coating, re-sharpening applications etc.

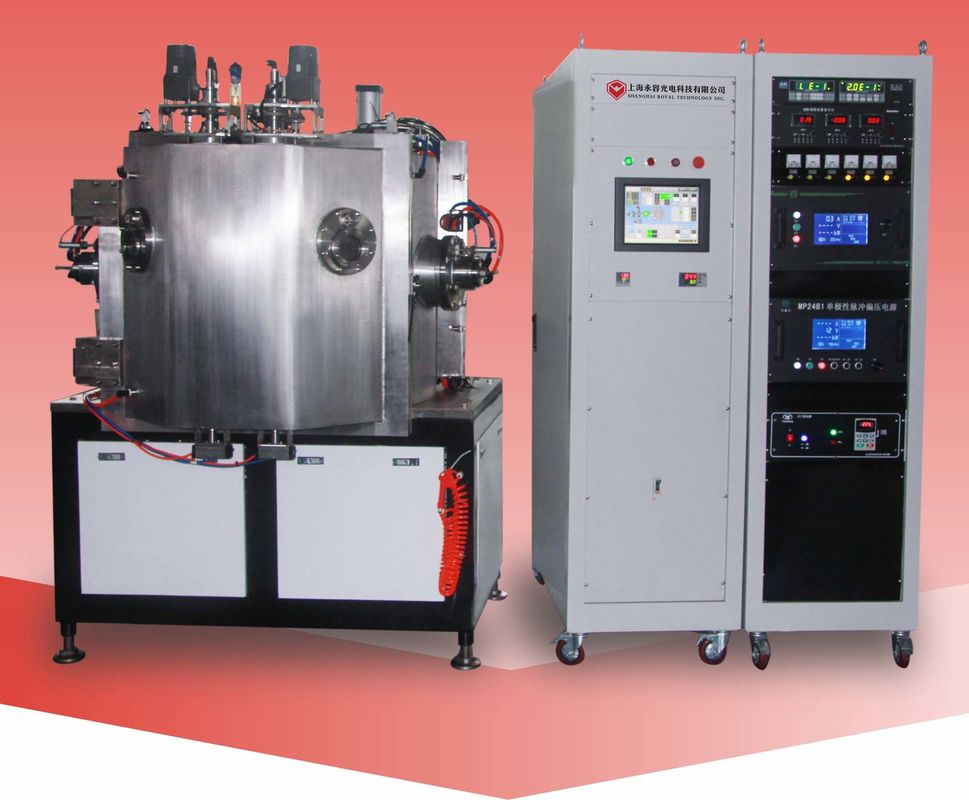

1. RT-HTC800  equipment systems consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas( distribution), electrical control & operation systems etc.
2. Application: industrial functional coatings for hard tools.
3.Coating Films: TiN, TiC, CrN, AlTiN etc.
4.Coating Advantages: high hardness and wear-resistance and corrosion,increased tool life time & improved work piece quality. "


Technical Advantages

1. Strong background of R&D support, focus on details of manufacturing.
2. Large steered cathodic arc sources to reduce droplets during deposition.
3. Accurate heating control system, the deviation is ±5℃, when the substrate surface is up to 550℃.
4. Advanced high density plasma pre-treatment.



HTC800 hard coating machine is designed and manufactured strictly following CE standards.


  • Filtered arc cathodes to reduce the droplet
  • High ionization rate, high density of deposited film
  • Advanced linear ion source device for plasma cleaning and PAD
  • Unique arc plasma etching system
  • Multiple compound coating processes are available
  • One-Touch auto coating system, equipped with IPC program
  • Turntable can be removed out to provide a high efficience coating cycle.
  • 3D rotary rack design structure for a high uniformity
  • Cycle Time: 5~6 hrs
  • Coating films: TiN/TiCN/CrN/CrC/ TiAlN/AlCrN etc.

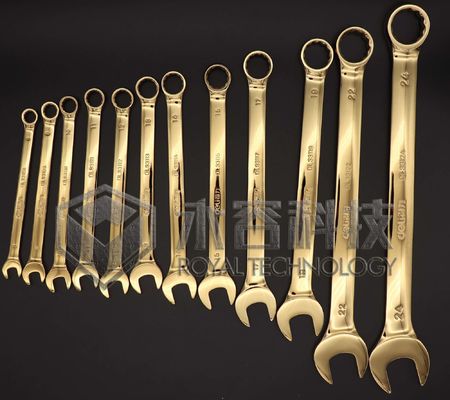

Steel Spanner PVD TiN coating, Fixing Tools TiN Plating Machine 0



Please contact us for more information.
