| Brand Name: | ROYAL |
| Model Number: | RTAS1200 |
| MOQ: | 203 sets |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability: | 302 sets per month |

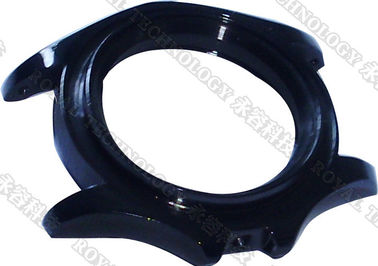

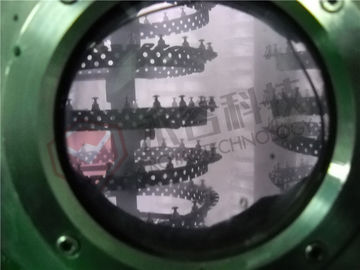

Precision Fasteners PVD Thin Film Coating Machine, Black Nano Thin Film PVD Depostion, Watch bands DLC Coating
Ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.
The machine is mainly design for sanitary ware/bathroom fitting parts. It’s equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.
FEATURES
It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.
| Stainless Steel PVD Plating Machine Technical Specification | |||
| Model | RTAC1008-SPMF | RTAC1250-SPMF | RTAC1612-SPMF |
| Effective Chamber Size | Φ1000 x H800mm | Φ1250 x H1250mm | Φ1600 x H1200mm |
| Deposition Sources |
Cylinder Arc (steered circular arc for option) +MF Sputtering Cathode + Linear Ion Source |
||
|
Vacuum Pumping System ( Leybold Pumps + Turbo Molecular Pump)
|
SV300B - 1 set (300m³/hr) | SV300B - 1 set (300m³/hr) | SV300B - 2 set (300m³/hr) |
|
WAU1001-1set (1000m³/hr) |
WAU1001-1set (1000m³/hr) |
WAU2001-1set (1000m³/hr) |
|
| D60T- 1 set (60m³/hr) | D60T- 1 set (60m³/hr) | D60T- 1 set (60m³/hr) | |
|
Turbo Molecular Pumps: 2 sets (3500L/S) |
Turbo Molecular Pumps: 2 sets (3500L/S) |
Turbo Molecular Pumps: 3 sets (3500L/S) |
|
| Sputtering Power Supply | 1*24KW (MF) | 2*36KW(MF) | 3*36KW(MF) |
| Arc Power Supply | 6*5KW | 7*5KW | 8*5KW |
| Bias Power Supply | 1*24KW | 1*36KW | 1*36KW |
| Planetary Rods | 6/8 | 12/16 | 20 |
| Heaters | 6*2.5KW | 8*2.5KW | 9*2.5KW |
| Ultimate Vacuum | 9.0*10-4Pa (empty, clean,room temperature) | 9.0*10-4Pa (empty, clean,room temperature) | 9.0*10-4Pa (empty, clean,room temperature) |
| Cycle Time (depends on pump) | 40’~50’ depends on substrate material and coating recipes | ||
| Working Power Requirement | 3Phase 4 lines,AC380V,50HZ,35KW | 3Phase 4 lines,AC380V,50HZ,120KW | 3Phase 4 lines,AC380V,50HZ,150KW |
| Cooling Water | YES, industrial water chiller | ||
| Processing Gas (99.99%) | 4 ways | 4 ways | 4 ways |
| Footprint (mm) | 2000*2000*2300 | 4000*4500*3200 | 5500*5000*3600 |
| Total Weight(KGS) | 4500 | 7000 | 9000 |
| Total Power Consumption(Approx.) | 50KW | 110KW | 170KW |
| Actual Power Consumption(Approx.) | 30KW | 60KW | 80KW |
Above technical parameters only for reference, Royal Technology reserves the right for final production based on specified applications. We provide you not only the coating machine but the total coating solutions, turnkey-project service is available.
