Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine
63 sets
MOQ
Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROYAL
Certification: TUV CE
Model Number: RTEP
High Light:

thermal evaporation equipment

,

vacuum deposition machine

Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 11 weeks
Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Supply Ability: 501 sets per month
Specifications
Coating Color: Gold, TiN Gold, ZrN Gold, Grey To Black, Bronze, Brass Colors
Package: Wooden Package Or As Request
Warranty: 12 Months
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description

Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine

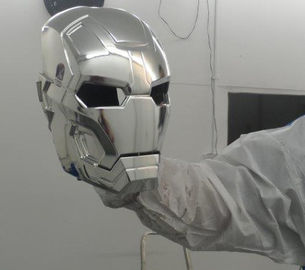

The machine can make very bright reflection(mirror finishing) on plastic surface.
Process of the vacuum metallizing:

In order to obtain good and strong coatings, pretreatment for the plastic substrates is necessary. We will apply the base varnish as a base before vacuum metallization.

UV painting is an alternative way to apply the base and you will get the best quality of coatings in this way. Aluminum coatings which is made by vacuum metallizing is not strong enough so we have to apply the protective topcoat. Then it will be the topcoat to contact the air and keep the vacuum metallized film inside, remain nice and long time.

For some customers, they need different colors more than silver/chrome. So they can color their products after vacuum coating.



Base coating: For most decorative and reflective applications it is necessary to apply a specially formulated primer or basecoat to promote adhesion and to provide a smooth surface, assuring a high quality surface for the metalizing or finish paint steps.
Then vacuum metalizing itself
Top coating: only when it requires, topcoat is applied to enhance, moisture, abrasion, and chemical resistance.
General specifications: (THE MACHINE IS ALSO CAN BE CUSTOMIZED.)





Mode 1000 1200 1600 1800
Dimension D1000*H1100mm D1200*H1400mm D1600*H2000m D1800*H2000m
Main Applications Plastic or glass metallizing, decorative coatings
Coating System Evaporation Coating System with high power transformer

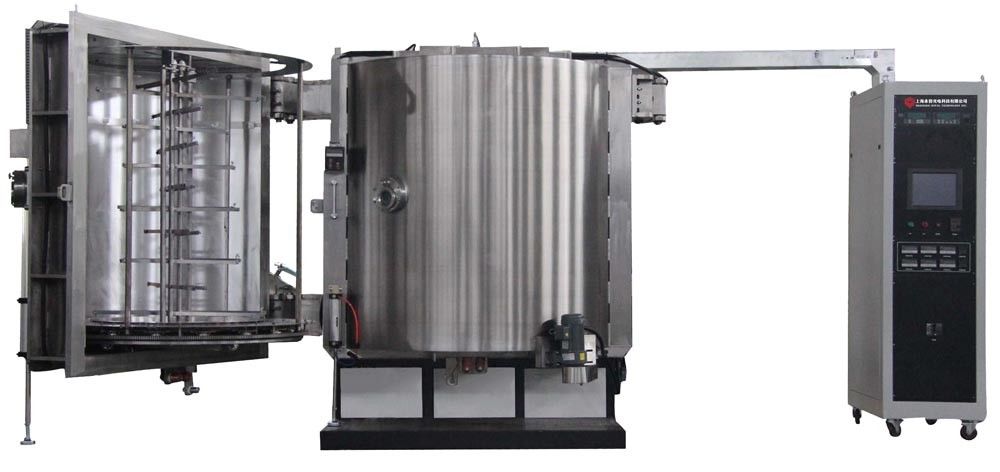

Vacuum chamber structure Vertical chamber front opening door, one or two doors, as well as two chambers optional
Pumping system Diffusion pump(Molecular pump) +Roots pump +Mechanical pump
(5.0*10-4Pa)
Workpiece Carousel Public rotation Frequency control: 0-20RPM
Vacuum degree measuring Digital display composite vacuum gauge: from atmosphere to 8.0*10-4Pa

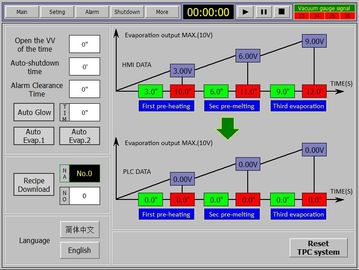

Control mode Manual/Automatic work mode by PLC touched screen
Remark We can make the machine according to customer’s requirements.

Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 0Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 1Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 2Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 3Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 4Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 5Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 6Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 7Thermal Evaporation Coating Unit , Aluminum Metalizing Coating Machine 8





Please contact us for more specifications, Royal Technology support you with our professional knowledge and total coating solutions.
