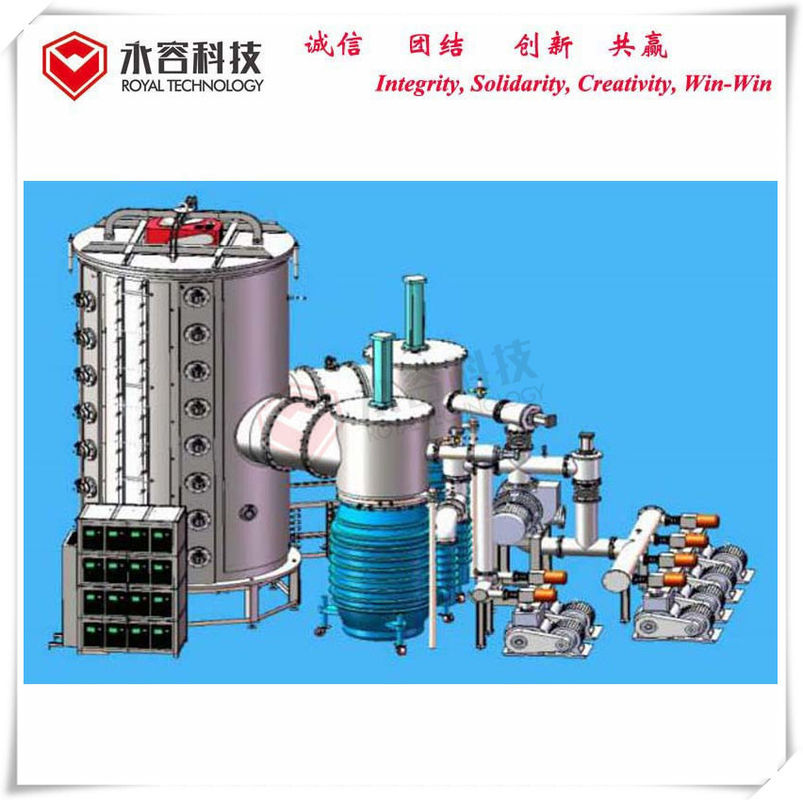

Stainless Steel Sheets Vacuum Coating Equipment , Large size SS sheets Multi Arc Coating Machine
Vacuum coating machine:
Vacuum coating machine adopts advanced PLC control, and is equipped with computer automatic shift vacuum gauge and 3 flow controllers. Invert arc power supply and computer PLD automatic temperature control.
Our equipment is widely used in ceramic,mosaic,hardware,clocks,mobile phones,electronics toys,decorations and other fields.
| Mode | RTAC2140 | RTAC1836 | RTAC2040 | RTAC2270 | RTAC2080 |
| Vacuum chamber Inner Size | Φ2100×H4000mm | Φ1800×H3600mm | Φ2000×H4000mm | Φ2200×L7000mm | Φ2000×L8000mm |
| Total Power | 125-360KW | 120-300KW | 120-350KW | 200KW | 200KW |
| Arc source | 40-60 units | 24-36 units | 40-60 units | 50~60 units | 50~60 units |
| Bias Power Supply | 60KW/1 set | 50KW/1 set | 60KW/1 set | 70KW/1 set | 70KW/1 set |
| Footprint | 40~60m² *H12m | 40~60m² *H11m | 40~60m² * H12m | 40~60m² *L20m | 40~60m² *L22m |
| Power Supplies | DC power, pulsed power (bias power, arc power) | ||||
| Vacuum Chamber | Vertical , top opening model ( Horizontal for Optional) | Horizontal, front opening model | |||
| Rack and Jig System | Planetary frame, revolution + rotation | ||||
| Power source Type | Arc power supply, bombardment bios and heating power supply | ||||
| Ultimate Vacuum Pressure | ≤8×10-4pa,pressure rising rate≤0.67pa/h, Pump down time (exhaust speed) : from atom to 8x10-3 pa ≤20min | ||||
| Vacuum Pumping System | Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need) | ||||
| Control and Operation | Manual/semi-automatic , touch screen operation, PLC control | ||||
| Cooling system | recycle water-cooling system | ||||
| Cathodic Arc Source | Adjustable magnetron filed,indirect water cooling | ||||
| Target Size | Φ100×40mm | ||||
| Working Environment | Air Pressure 0.5-0.8MPa, Water Temp.≤25°C,Water Pressure≥0.2MPa | ||||
| Heating System | Controllable and adjustable from room temperature to 300°C | ||||
| Measuring Instrument | vacuum gauge,flow meter box,mass flow controller,electric control box,heated instrument control box, arc power control box | ||||
| Remarks | Dimension of the vacuum chamber, the quantity of arc ion sources, heaters and pumps can be designed and equipped according to customers demand. | ||||
The 3D stainless steel letter sign billboards vacuum coating products even used in exterior, it is endurable for bad climate due to the PVD vacuum coating layer.
The PVD vacuum Coatings : TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
The 3D stainless steel letter sign billboards vacuum Coating Colors : gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc
