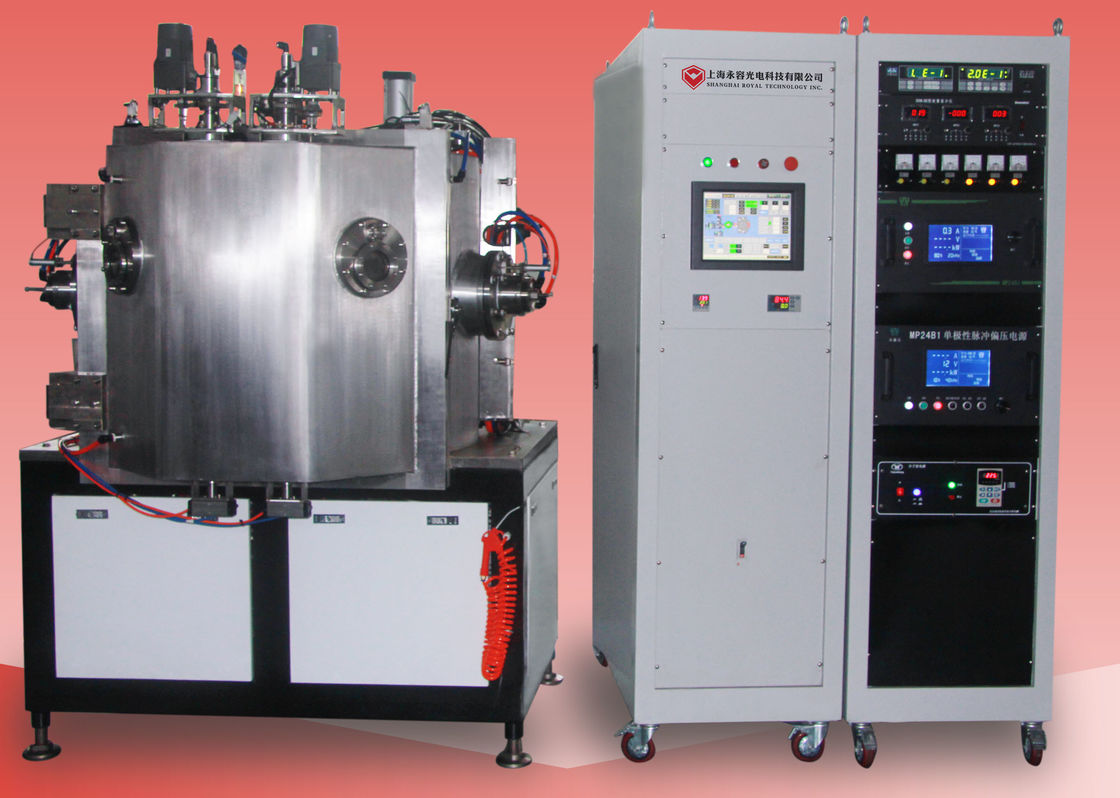

PVD Vacuum Coating Machine / Magnetron Sputtering Coating Machine, metallurgical pvd coating machine

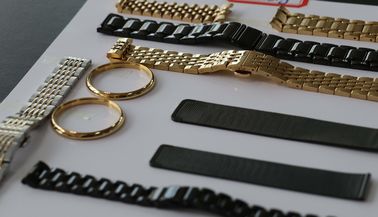

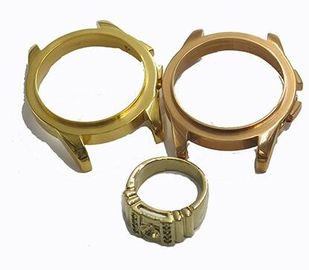

This machine is suitable to the industrial production vacuum coating system. It equips a big size plain arc ion evaporation source and can deposite high performance hard metal film by arc evaporation technology, such as TiN, TiCN,AlTiN and all kinds of other special film according to customer’s requirements.
DLC coating (diamond-like carbon) is the combination of diamond (SP3) and graphite (SP2). The physical and chemical properties of DLC are intermediate to that of diamond and graphite
Specifications
| MODEL | RTAS1000 | |||||||
| TECHNOLOGY | arc plating + magnetron sputtering + ion source | |||||||
| CHAMBER MATERIAL | Stainless Steel (S304) | |||||||
| CHAMBER SIZE | Φ1000*1000mm (H) | |||||||
| CHAMBER TYPE | Regular octahedron chamber, 2-doors | |||||||
| ROTATION RACK & JIG SYSTEM | 6 (8)satellite, Max. weight: 400kgs | |||||||
| POWER SUPPLIES | Qty. of Sputtering: 2*24 KW Bias of Power Supply: 1*24W AE power supply for option Ion Source Power supply 2 sets, AE power supply for option | |||||||
| DEPOSITION MATERIAL | Ti, Zr, TiAl, Cu, Au | |||||||
| DEPOSITION SOURCE |
2 pairs (4 pieces) Sputtering Cathodes + 6 arcs Coating Area: Dia800mm*H550mm; |
|||||||
| CONTROL | PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models) | |||||||
| PUMP SYSTEM | Rotary Vane Pump: SV300B - 1 set (Leybold) | |||||||
| Roots Pump: WAU1001 - 1 set (Leybold) | ||||||||
| Holding Pump: D60C-1set- (Leybold) | ||||||||
| Magnetric Rotor Suspension Molecular Pump: MAG2200 - 2 sets (Leybold) | ||||||||
| GAS MASS FLOW CONTROLLER | 3 channels, Made in America (MKS brand) | |||||||
| VACUUM GAUGE | Model: ZDF-X-LE, Made in China | |||||||
| Linear Ion Source | 2 pieces Pre-treating, plasma cleaning + assisted deposition | |||||||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | |||||||
| HEATING | Heaters: 20KW. Max. temp.: 400℃ | |||||||
| COOLING | Industrial Chiller (Cold Water) | |||||||
| POWER MAX. | 100KW (Approx.) | |||||||
| AVERAGE POWER CONSUMPTION | 45 KW (Approx.) | |||||||
| GROSS WEIGHT | T (Approx.) | |||||||
| FOOT PRINT | ( L*W*H) 4000*4000 *4000 MM | |||||||
| POWER ELECTRICAL | AC 380V/3 phases/50HZ | |||||||
