Brass Faucets PVD Coating Machine / Copper Faucets Coating Equipment / Chroming Ion Plating on Cu Faucets
Faucets as important consumption of our daily life, consumers and manufactures are more focusing on the creative design & surface treatment process. PVD vacuum Ion Plating is used to replace the traditional chemical eletroplating is more recommended due to its low production cost, 100% friendly environmentally, flexible operation features.
PVD vacuum coatings properties
Brass Faucets PVD Coating Machine Advantages:
1. High ionization rate, high through put,
2. Large capacity to satisfy mass production,
3. Excellent film adhesion and various colors are available.
4. Coating lMateria: Chrome, Titanium, Zr , TiAl, etc.
Royal technology provides you not only the coating system but the total coating solutions, we offer you turnkey-service project.
From polishing line, pre-cleaning line, high temperature drying ovens, Ion plating coating plant. Each process's proper operation you want, we has experts to guide you.

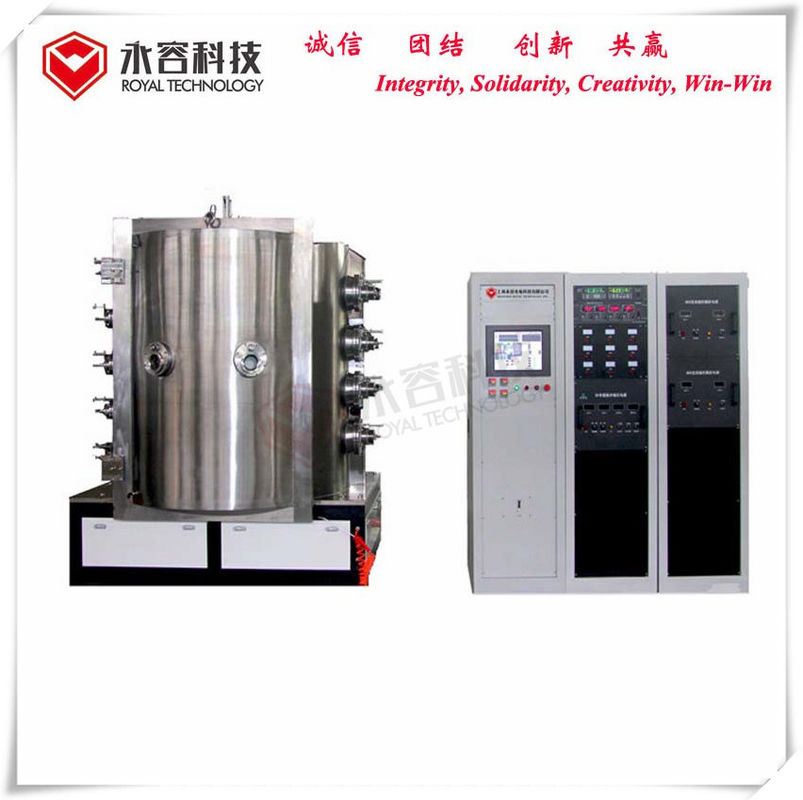

Brass Faucets PVD Coating Machine - RTAC1820 Specifications
| MODEL | RTAC1820 | ||
| MATERIAL | Stainless Steel (S304) | ||
| CHAMBER SIZE | Φ1800*2000mm (H) | ||
| CHAMBER TYPE | Cylinder, vertical, single door | ||
| SINGLE PUMP PACKAGE | Rotary Piston Vacuum Pump | ||
| Roots Vacuum Pump | |||
| Turbo Molecular Pump + Holding Pump | |||
| TECHNOLOGY | Cathodic Arc Evaporation, Ion Plating | ||
| POWER SUPPLY | Arc sources power supply + Bias Power supply | ||
| DEPOSITION SOURCE | 18 Cathodic Arc Sources | ||
| CONTROL | PLC+Touch Screen | ||
| GAS | Gas Mass Flow Meters | ||
| SAFETY SYSTEM | Numerous safety interlocks to protect operators and equipment | ||
| COOLING | Cooling Water | ||
| CLEANING | Glow Discharge Cleaning | ||
| POWER MAX. | 100 KW | ||
|
AVERAGE POWER CONSUMPTION |
65KW |
||
The faucet PVD vacuum coating machine model: RTAC1820 is available for large size of newest hotel/bathroom faucets.
