Glass Lighting Reflector Thermal Evaporation Coating Unit / Glass Bulb Vacuum Metalizing Machine
The glass lighiting reflector thermal evaporation coating machine hight features are:
1. Top coating for a high uniformity of film depositon;
2. Ion source device to do plasma cleaning with Ar gas to enhance the ionizatio for a strong adhesion film quality;
3. Polycold unit for optional (cryopump device can highly reduce the cycle time) to capture the water molecular and oil mist for a high vacuum environment;
4. The evaporation sources have multiple options: E-beam Gun / Tungsten filament / or both sources. Flexible for various lighting reflector coatings.
High Vacuum Environment to deposite the evaporation materials
1. Ultimate Vacuum Pressure: better than 5.0×10-6 Torr.
2. Operating Vacuum Pressure: 1.0×10-4 Torr.
3. Pumping down Time: from 1 atm to 1.0×10-4 Torr≤3 minutes ( room temperature, dry, clean and empty chamber)
4. Metalizing material ( evaporation): Al, Cr, Sn, Ti, SS, Cu… etc.
5. Operating Model: Full Automatically /Semi-Auto/ Manually

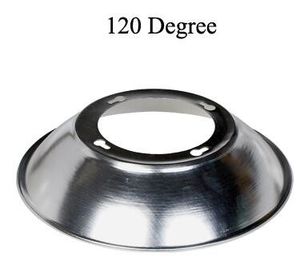

Thermal Evaporation Coating Machine on Lighting Reflector Coating Samples
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
