PVD Aluminum Vacuum Evaporation System, PVD Vacuum Metalizing Equipment
1 set
MOQ
negotiable
Price
PVD Aluminum Vacuum Evaporation System, PVD Vacuum Metalizing Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTEP-1018
High Light:

thermal evaporation unit

,

vacuum deposition machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 weeks
Payment Terms: L/C, T/T, D/A, D/P, D/A
Supply Ability: 10 sets per month
Specifications
Chamber: Vertical Orientation, 1-door
Material: Stainless Steel 304/316
Evaporation Source: Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles
Deposition Materials: Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel
Chamber Inner Size: Dia1000 * H180mm
NAME: Thermal Evaporation Coating Unit
Product Description

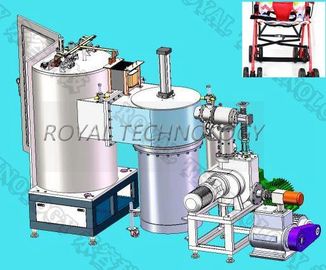

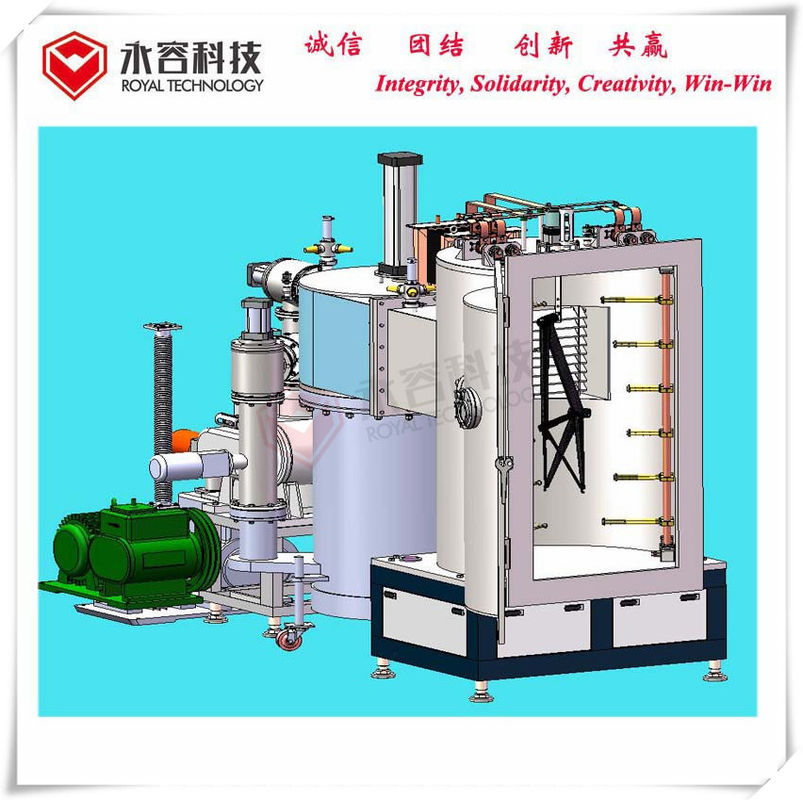

Carriage Frame Aluminum Evaporation Coating Machine / Bike Aluminum Alloy Vacuum Metalizing Equipment



Carriage Frame Aluminum Evaporation Coating Machine uses the Thermal Resistant Evaporation technology to evaporate and deposit Aluminum wire on the slipper surface to give a high reflection and metal image.



Carriage Frame Aluminum Evaporation Coating Process:  Substrate Cleaning --> UV base coating --> PVD aluminum metalizing --> UV top coating ( lacquer or color pigment to get various colors)



Carriage Frame Aluminum Evaporation  Coating Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations





Carriage Frame Aluminum Evaporation Coating Machine Specifications:



MODEL RTEP-1018
TECHNOLOGY THERMAL EVAPORATION, VACUUM METALIZING
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1000*H1800mm
CHAMBER TYPE Cylinder, vertical, 1-door
EVAPORTATION SYSTEM EXCLUSIVE DESIGN FOR BICYCLE FRAMES
DEPOSITION MATERIAL Copper, Chrome, Stainless Steel, Aluminum
DEPOSITION SOURCE TUNGSTEN FILAMENT
CONTROL

PLC(Programmable Logic Controller) +

Touch Screen

PUMP SYSTEM Rotary Pistonr Vacuum Pump SV6300B
Rotary Vane Vacuum Pump D60C *1
Roots Vacuum Pump WAU1001 *1
Diffussion Pump DP221
PRE-TREATMENT Plasma Cleaning
SAFETY SYSTEM

Numerous safety interlocks to protect operators

and equipment

COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L3000*W300*3000mm
TOTAL WEIGHT 4 T
CYCLE TIME

20 minutes (depending on substrate material, substrate

geometry and environmental conditions)

POWER MAX.. 50 KW
AVERAGE POWER CONSUMPTION (APPROX.) 25 KW



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
