Stainless Steel Mall/hotel door Titanium Nitride Coating Machine, Cathodic Arc TiN Plating Equipment

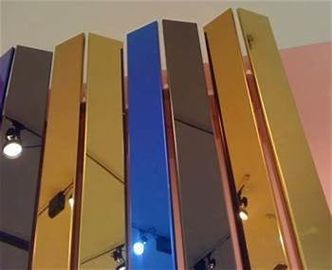

The Large Stainless Steel TiN gold ion coating machine, with arc evaporating deposition technology to generate various colors on stainless steel products, especially the large size Multi-arc vacuum coating machine, it widely used in architectural and building materials industry, such as: windows, walls, hotel, KTV, Bars, elevator panels for decorations.
The machine can coat on glass, ceramic and Stainless steel material products surface directly without base coating. It is highly praised by our customers for the stable quality and low running cost.
We have a professional team to assit our customers build the PVD vacuum coating service center and get running cost back within short time. It is a reliable and great business investment project for businessmen.

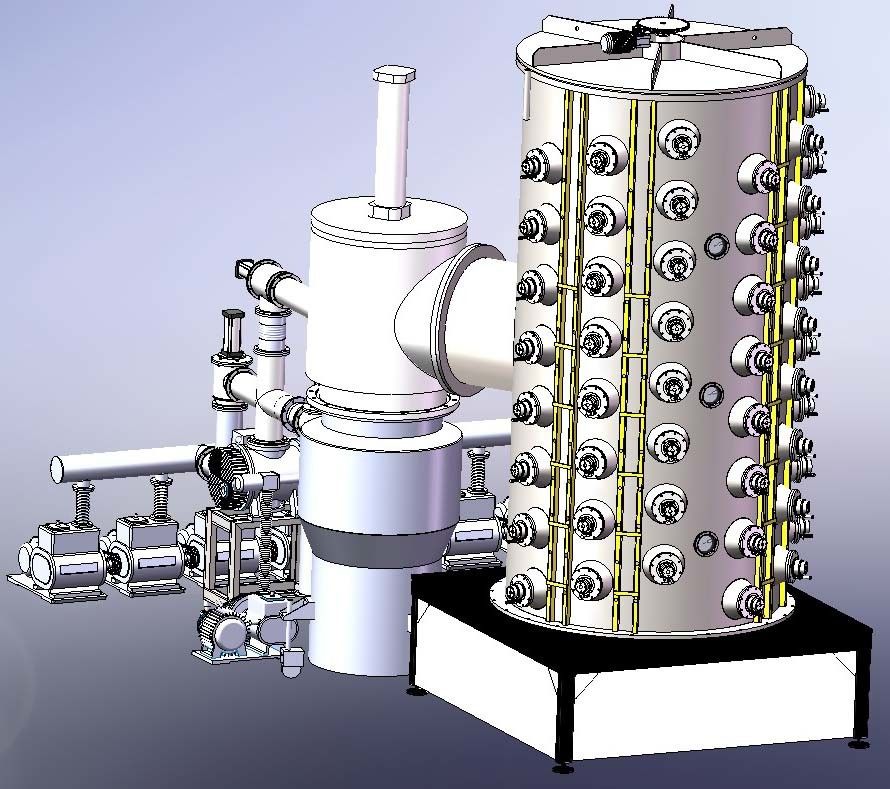

The large size multi-arc TiN gold coating machines we have produced are as below
|Vacuum chamber Inner Size||Φ2100×H4000mm||Φ1800×H3600mm||Φ2000×H4000mm||Φ2200×L7000mm||Φ2000×L8000mm|
|Arc source||40-60 units||24-36 units||40-60 units||50~60 units||50~60 units|
|Bias Power Supply||60KW/1 set||50KW/1 set||60KW/1 set||70KW/1 set||70KW/1 set|
|Footprint||40~60m² *H12m||40~60m² *H11m||40~60m² * H12m||40~60m² *L20m||40~60m² *L22m|
|Power Supplies||DC power, pulsed power (bias power, arc power)|
|Vacuum Chamber||Vertical , top opening model ( Horizontal for Optional)||Horizontal, front opening model|
|Rack and Jig System||Planetary frame, revolution + rotation|
|Power source Type||Arc power supply, bombardment bios and heating power supply|
|Ultimate Vacuum Pressure||≤8×10-4pa,pressure rising rate≤0.67pa/h, Pump down time (exhaust speed) : from atom to 8x10-3 pa ≤20min|
|Vacuum Pumping System||Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need)|
|Control and Operation||Manual/semi-automatic , touch screen operation, PLC control|
|Cooling system||recycle water-cooling system|
|Cathodic Arc Source||Adjustable magnetron filed,indirect water cooling|
|Working Environment||Air Pressure 0.5-0.8MPa, Water Temp.≤25°C,Water Pressure≥0.2MPa|
|Heating System||Controllable and adjustable from room temperature to 300°C|
|Measuring Instrument||vacuum gauge,flow meter box,mass flow controller,electric control box,heated instrument control box, arc power control box|
|Remarks||Dimension of the vacuum chamber, the quantity of arc ion sources, heaters and pumps can be designed and equipped according to customers demand.|
The SS sheets and tubes, stairs handrails coating service from China also availble. Please contact us for your demand.
