Crucible Evaporation Coating Equipment, Cesium Iodide Thin Film Deposition Systems
5 sets
MOQ
negotiable
Price
Crucible Evaporation Coating Equipment, Cesium Iodide Thin Film Deposition Systems
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: CsI950
High Light:

thin film deposition equipment

,

dlc coating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 14 weeks
Payment Terms: L/C, T/T,
Supply Ability: 10 sets per month
Specifications
Evaporation Source: Molybdenum Crucibles
Deposition Materials: Cs I, Vacuum Deposition, Thin Film Evaporation Coater
Applications: Medical X-ray Screen, Dental Imaging, Security Inspection, High - Energy Physics
Product Description

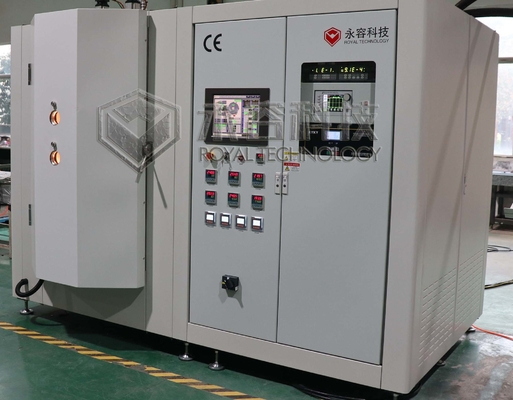

CsI Thin Film Deposition Vacuum Coating Machine / Cesium Iodide Thin Film Thermal Evaporation Coating Equipment



Cesium Iodide Thin Film Thermal Evaporation Coatings performance

Ultra- High Spatial Resolution of Imagings;

Fast response for sharper imagings;

Class leading edge-to-edge image areas;

Optical absorber layers  or reflector layers;

Low patient X-ray dose;

Suitable for CMOS and CCD devices, especially in medical industries.



CsI Thin Film Deposition Vacuum Coating Machine for CMOS CCD devices is an advanced technique to evaporate CsI on the screen to give a high quality.



Efficiency:
CsI-950A+ model is with 2-rotary rack structure based on Generation -one CsI-950 model.
Double-capacity for max. size substrate: 500 x400mm.





Reliability:
24/7 days non-stop operation;
Inficon Film Thickness Controller to monitor the film thickness inline.
Temperature control accuracy: ±1 ℃, multi-stage setting, automatic temperature data recording and control
Rotary racks equipped with Servo-Motor for high accuracy and stability.





Repeatability & Reproducibility:
Through high precised parameter control system,
Automated process control software and program,
User friendly operation.




Safety:

High vacuum pump: Magnetic Suspension Molecular Pump, with nitrogen gas blowing device to avoid hazard material be exposed in the air;
All electrodes are equipped with safety protection sleev







CsI High Vacuum Deposition System is exclusively designed for CsI metallization on scintillation screens in an extremely high vacuum environment. The CsI scintillators 200~600µm in thickness ranges with high uniformity of thickness and brightness performance.

Cesium Iodide (CsI ) Deposition characterizations:
Ultra- High Spatial Resolution of Imaging;
Fast response for sharper imaging;
Class leading edge-to-edge image areas;
Optical absorb layers or reflector layers;
Low patient X-ray dose;

Application: for security check and inspection, high energy physics education, nuclear radiaton detection and medical imagings: chest examination, mamography, dental inter oral and panoramic.
Substrates Applied: TFT glass, Fiber Optic Plate, Amorphous-carbon plate, Aluminum plate



Description CsI-950

CsI-950A+



Deposition chamber (mm)



φ950 x H1350

φ950 x H1350



Loading rotary racks 1 2
Evaporation sources 2

2



Heating method

Iodine tungsten lamp

Max. 800℃

Iodine tungsten lamp

Max. 800℃

Ultimated vacuum pressure (Pa) 8.0×10-5Pa 8.0×10-5Pa
Magnetic Suspension Molecular Pump 1 x 3400L/S

1 x 3400L/S



Roots Pump 1 x 490m³/h

1 x 490m³/h



Rotary Vane Pump 1 x 300m³/h

1 x 300m³/h



Deposition Controller Quartz Control x 1

Quartz Control x 1



Power Consumption (KW)

Max. approx. 62

Average approx. 32

Max. approx. 65

Average approx. 35





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
