Architectural Building Materials Coating Machine, Stainless Steel Sheets Gold colors Coating
1 set
MOQ
negotiable
Price
Architectural Building Materials  Coating Machine,  Stainless Steel Sheets  Gold colors Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

vacuum deposition system

,

hard coating machine

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 16 weeks
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Specifications
Chamber: Horizontal Orientation, Front Door Opening, Guide Rail
Vacuum Technology: Cathodic Multi Arc Plating, PVD Arc Deposition
Deposition Sources: Cathodic Arc Sources
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Metal, Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
Product Description





 Architectural Buildings material Muil-Arc Ion Plating Machine / PVD Vacuum Ion Plating Machine



The large size arc vacuum coating machine is widely used for big size furnitures, architectural building materials, SS sheets, SS plates, SS pipes, Ceramic and Glass, Crystal crafts etc.

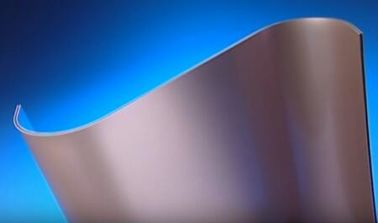

Architectural Building Materials  Coating Machine,  Stainless Steel Sheets  Gold colors Coating 0





For such series of large size vacuum coaters, we provide the whole plant design and total PVD coating service professional instructions.

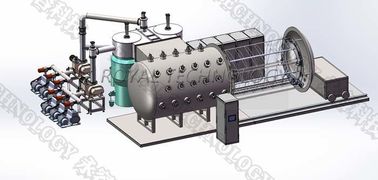

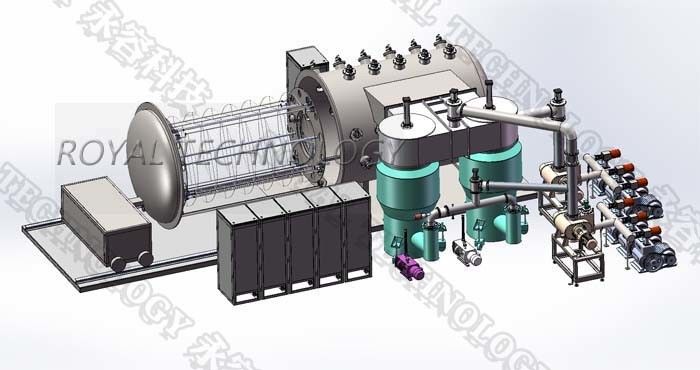

Large size arc vacuum coating machine we have produced standard models as below



Mode RTAC2140 RTAC1836 RTAC2040 RTAC2270 RTAC2080
Vacuum chamber Inner Size Φ2100×H4000mm Φ1800×H3600mm Φ2000×H4000mm Φ2200×L7000mm Φ2000×L8000mm
Total Power 125-360KW 120-300KW 120-350KW 200KW 200KW
Arc source 40-60 units 24-36 units 40-60 units 50~60 units 50~60 units
Bias Power Supply 60KW/1 set 50KW/1 set 60KW/1 set 70KW/1 set 70KW/1 set
Footprint 40~60m² *H12m 40~60m² *H11m 40~60m² * H12m 40~60m² *L20m 40~60m² *L22m
Power Supplies DC power, pulsed power (bias power, arc power)
Vacuum Chamber Vertical , top opening model ( Horizontal for Optional) Horizontal, front opening model
Rack and Jig System Planetary frame, revolution + rotation
Power source Type Arc power supply, bombardment bios and heating power supply
Ultimate Vacuum Pressure ≤8×10-4pa,pressure rising rate≤0.67pa/h, Pump down time (exhaust speed) : from atom to 8x10-3 pa ≤20min
Vacuum Pumping System Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need)
Control and Operation Manual/semi-automatic , touch screen operation, PLC control
Cooling system recycle water-cooling system
Cathodic Arc Source Adjustable magnetron filed,indirect water cooling
Target Size Φ100×40mm
Working Environment Air Pressure 0.5-0.8MPa, Water Temp.≤25°C,Water Pressure≥0.2MPa
Heating System Controllable and adjustable from room temperature to 300°C
Measuring Instrument vacuum gauge,flow meter box,mass flow controller,electric control box,heated instrument control box, arc power control box
Remarks Dimension of the vacuum chamber, the quantity of arc ion sources, heaters and pumps can be designed and equipped according to customers demand.









Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
