Home Glass lamp PVD Coating Equipment, Commercial and Residential Lighting reflector Coating Machine
10 sets
Home Glass lamp PVD Coating Equipment, Commercial and Residential Lighting reflector Coating Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC-SP
High Light:

chrome plating machine


glass coating system

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets per month
Deposition Sources: MF/DC Sputtering + Arc Evaporation
Deposition Films: Hard Coatings, DLC, Optical Film Coating
Applications: Optical Lens, Tools, Glass Slides, Ceramic Sheets, SS Circular Board ,Medical Instruments
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Coating Colors: Black Color And Rose Gold, Blue Colors Coating
Product Description


Commercial, Industrial, &  PVD Vacuum Plating Machine, Decorative Coating Machine on Metal Lamp

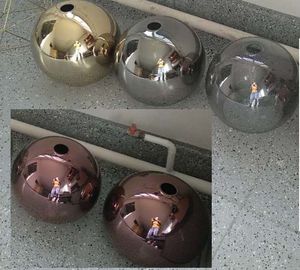

Lamp Shades PVD silver Vacuum Coating Machine, Lamp Cover PVD Vacuum Coating

Royal Technology provides you not only the coating machine but the total coating solutions, turnkey-project service is available.


The PVD Plating to generate metallic films on the metal parts surface, sufficiently add the aesthetic value which give a high image quality for consumers. From matte to bright finishes, colors from silver, gold, copper, bronzes to black etc. What is more, the PVD plating has its advantages which no other mothod can apply.


The advantages:


PVD sputtering + Ion Plating give a combination of advantages like no other can:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.




Coating Technology

The planar magnetron sputtering cathodics (cylindrical sputtering cathodic) introducing, makes the coating colors is more reflective, coating surface is much more smoother, no spot and niddle holes.

High quality coating products satisified the demand of high level's pursuing.



3. Arc + Sputtering Coating Equipment Models


Model Size(mm) Number of Planetary Rods Cathodic Arc Sources Sputtering Cathodes Ion Source Bias Power Supply (kVA)
RTAC950-SP 950xH1350 2-doors 3 8 4 Planar Linear Anode 1*36
RTAC1213-SP 1250xH1350 2-doors 48 8 4 Planar Linear Anode 1*30, AE
RTAC1250-SP 1250xH1250 6,8,12,16 8 4~8 Cylinder depends on coating process and product 1*36
RTAC1008-SP 1000xH800 3 6 2 Cylinder 1*24
RTAC1616-SP 1600xH1600 6*6 9 2 Cylinder or Planar 1*48
RTAC1618-SP 1600x1800 6,8,10 18 4 Cylinder 1*48


4. HMI operation for Process's parameters setting: auto/manually model


Home Glass lamp PVD Coating Equipment, Commercial and Residential Lighting reflector Coating Machine 0



We are not only provide the machine but coating service.  Coating services are available from China, Ukraine, Poland. Anyone who is interested in the coating service, please contact us to get a professional offer.
