Magnetron Sputtering Coating Machine
Created with Pixso.

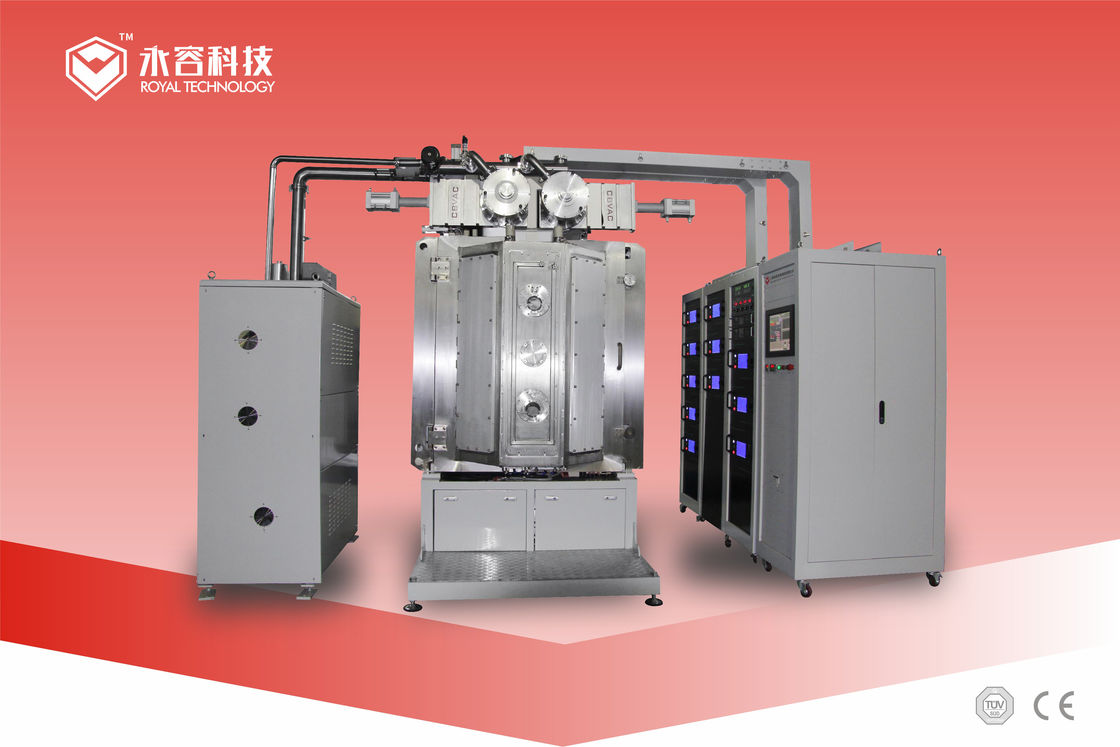

PVD SputteringThin Film Coating Machine-RTSP950-DLC

PVD SputteringThin Film Coating Machine-RTSP950-DLC

Brand Name: ROYAL
Model Number: Multi950
MOQ: 1 sets
Price: negotiable
Payment Terms: L/C,,T/T
Supply Ability: 6 sets per month
Detail Information
Place of Origin:
Made in China
Certification:
CE
Deposition Sources:
Sputtering + Cathodic Arc Evaporation
Technique:
PVD, Balanced/Unbalanced Magentron Sputtering Cathode
Applications:
Metal Jewelry, Watches, Necklace, Ear Rings, Finger Rings, Bracelets, Handbag Chains, Logos
Film Features:
Bright Colors, Wear Resistance, Strong Adhesion, Decorative Coating Colors
Factory Location:
Shanghai City, China
Worldwide Service:
Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service:
Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty:
Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM:
Available, We Support Tailor Made Design And Fabrication
Packaging Details:
Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Supply Ability:
6 sets per month
Highlight:

thin film coating equipment

,

thin film deposition equipment

Product Description

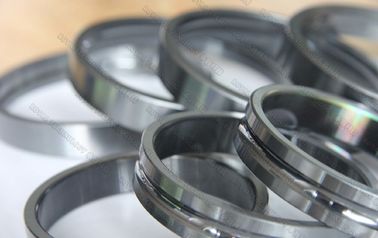

DLC film ( Diamond - Like - Carbon), it has been benefiting variety of industries for high end quality products like: machine parts, automotive bearings, medical instruments, military, aerospace, industrial sealing parts, watches, etc. which require high durability and min. coefficient of friction.

PECVD + PVD process DLC coating technique has been developed by us for years to satisfy the highest standard application. This process providing an unique and flawless finishing on the product surface except extrodiary beauty.


The combination of PVD (Physical Vapor Deposition) and PECVD (Plasma-Enhanced Chemical Vapor Deposition) technologies in a hybrid coating machine allows for a wide range of applications across various industries. Some common applications of PVD and PECVD hybrid coatings include:

Wear and Corrosion Protection: Hybrid coatings are often used to improve the wear resistance and corrosion protection of components in industries such as automotive, aerospace, and manufacturing.

Optical Coatings: The hybrid machine can produce high-quality optical coatings for applications in lenses, mirrors, and other optical components, offering enhanced reflectivity, anti-reflection properties, and durability.

Decorative Coatings: PVD and PECVD hybrid coatings are utilized in the production of decorative finishes on consumer products, architectural elements, and jewelry, providing aesthetic appeal along with functional benefits.

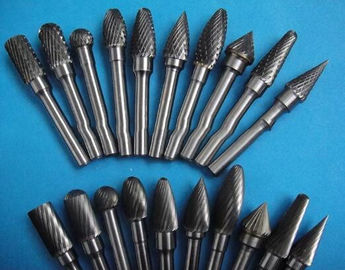

Tool Coatings: Hybrid coatings are applied to cutting tools, molds, and dies to enhance their hardness, lubricity, and wear resistance, improving tool life and performance.

Biomedical Applications: PVD and PECVD hybrid coatings find use in biomedical applications for producing biocompatible coatings on medical implants, surgical instruments, and devices to improve biocompatibility and reduce wear.

Electronic Components: Hybrid coatings are used in the electronics industry for enhancing the performance and reliability of electronic components, such as providing barrier coatings, insulating layers, and conductor materials.

Energy Storage and Conversion: PVD and PECVD hybrid coatings are employed in energy storage and conversion devices, such as batteries, fuel cells, and solar cells, to improve efficiency, durability, and performance.

Packaging and Barrier Films: The hybrid machine is utilized to produce barrier coatings for packaging materials to extend the shelf life of food products, prevent moisture ingress, and enhance overall product protection.

MEMS and Nanotechnology: PVD and PECVD hybrid coatings play a crucial role in microelectromechanical systems (MEMS) and nanotechnology applications by providing functional coatings for sensors, actuators, and other micro-devices.

Automotive and Aerospace: Hybrid coatings are used in automotive and aerospace industries for applications such as improving fuel efficiency, reducing friction, enhancing aerodynamics, and protecting components from extreme operating conditions.

These are just a few examples of the diverse range of applications where PVD and PECVD hybrid coatings can be effectively utilized to enhance the performance, durability, and functionality of various products across different industries.


Technical Specifications

MODEL RTSP950-DLC
TECHNOLOGY PECVD process- magnetron sputtering + ion source
CHAMBER MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ950*1350mm (H)
CHAMBER TYPE Regular octahedron chamber, 2-doors
ROTATION RACK & JIG SYSTEM 6 (8)satellite, Max. weight: 400kgs
POWER SUPPLIES Qty. of Sputtering: 2*24 KW Bias of Power Supply: 1*24W AE power supply for option Ion Source Power supply 2 sets, AE power supply for option
DEPOSITION MATERIAL Cr/C
DEPOSITION SOURCE

2 pairs (4 pieces) Sputtering Cathodes + 2 Ion Source Coating Area: Dia800mm*H550mm;

Uniformity Area: ±10~15%

CONTROL PLC(Programmable Logic Controller) + Touch Screen ( manual+ auto+ semi-auto operation models)
PUMP SYSTEM Rotary Vane Pump: SV300B - 1 set (Leybold)
Roots Pump: WAU1001 - 1 set (Leybold)
Holding Pump: D60C-1set- (Leybold)
Magnetric Rotor Suspension Molecular Pump: MAG2200 - 2 sets (Leybold)
GAS MASS FLOW CONTROLLER 3 channels, Made in America (MKS brand)
VACUUM GAUGE Model: ZDF-X-LE, Made in China
Linear Ion Source 2 pieces Pre-treating, plasma cleaning + assisted deposition
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
HEATING Heaters: 20KW. Max. temp.: 400℃
COOLING Industrial Chiller (Cold Water)
POWER MAX. 100KW (Approx.)
AVERAGE POWER CONSUMPTION 45 KW (Approx.)
GROSS WEIGHT T (Approx.)
FOOT PRINT ( L*W*H) 4000*4000 *4000 MM
POWER ELECTRICAL AC 380V/3 phases/50HZ


PVD SputteringThin Film Coating Machine-RTSP950-DLC 0

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
