Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark

10 sets
MOQ
negotiable
Price
Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark
Features Gallery Product Description Request A Quote
Features
Specifications
Chamber: Vertical Orientation, 1-DOOR
Material: Stainless Steel 304/316
Deposition Sources: MF/DC Sputtering + Arc Evaporation
Deposition Films: Hard Coatings, DLC, Optical Film Coating
Applications: Optical Lens, Tools, Glass Slides, Ceramic Sheets, SS Circular Board ,Medical Instruments
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Coating Colors: Black Color And Rose Gold, Blue Colors Coating
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

ion plating system

,

vacuum plating equipment

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: ISO, CE, UL standard
Model Number: RTAC1618-SP
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 15 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Product Description

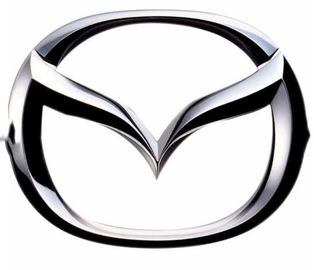

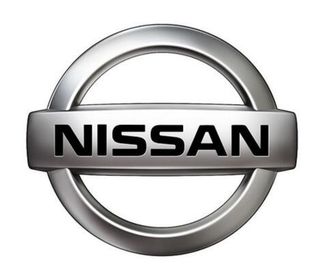

PVD Decorative Coating Equipment, Decorative Coatings on plastic and trademark, PVD Vacuum Plating Equipment​

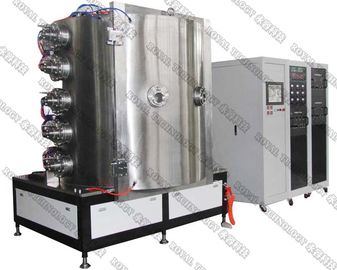

 RTAC1618-SP PVD coating equipment mainly for decoration coatings on the plastic, metal, ABS parts. The ranged colors are silver, black, gold. When introducing different reactive gas and target materials the colors are changing slowly, during the deposition changing period, to get the idea desired colors.



This is operated by changing different coating parameters and process.

Coating processes to deposit every each color is stored in PLC software recipes, totally 10 recipes are available. So that the AUTO COATING model is possible after the recipes is logged in. The full automatically operation is very helpful for primer PVD operators.



Royal Technology provides you not only the coating machine but the total coating solutions, turnkey-project service is available.



The advantages:



PVD sputtering + Ion Plating give a combination of advantages like no other can:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.

5. Fast deposition rates and high quality surface finishes.





RTAC1618-SP machine coating technology:


The planar magnetron sputtering cathodics (cylindrical sputtering cathodic) introducing, makes the coating colors is more reflective, coating surface is much more smoother, no spot and niddle holes.

High quality coating products satisified the demand of high level's pursuing.





3. Arc + Sputtering Coating Equipment Models



Model Size(mm) Number of Planetary Rods Cathodic Arc Sources Sputtering Cathodes Ion Source Bias Power Supply (kVA)
RTAC950-SP 950xH1350 2-doors 3 8 4 Planar Linear Anode 1*36
RTAC1213-SP 1250xH1350 2-doors 48 8 4 Planar Linear Anode 1*30, AE
RTAC1250-SP 1250xH1250 6,8,12,16 8 4~8 Cylinder depends on coating process and product 1*36
RTAC1008-SP 1000xH800 3 6 2 Cylinder 1*24
RTAC1616-SP 1600xH1600 6*6 9 2 Cylinder or Planar 1*48
RTAC1618-SP 1600x1800 6,8,10 18 4 Cylinder 1*48



Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark 0



 Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark 1

Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark 2

Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark 3

Decorative Coating Pvd Plating Machine Vertical Orientation For Plastic / Trademark 4







Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
