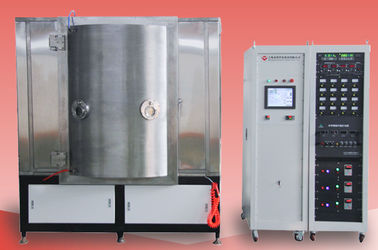

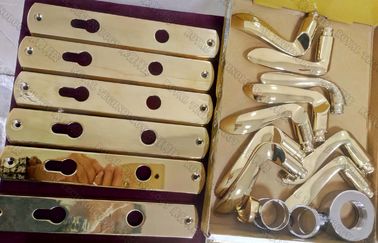

Zamak door handle and Locks PVD Plating Machine, Brass Taps ZrN Gold Plating
2 sets
Zamak door handle and Locks PVD Plating Machine,  Brass Taps ZrN Gold Plating
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC1416
High Light:

ion plating system


vacuum plating equipment

Payment & Shipping Terms
Packaging Details: Export standard
Delivery Time: 10 weeks
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 25 sets per month
Materials: Stainless Steel, Metal Alloy, Ceramic, Glass
Coating Films: TiN, Zr,T ICN, ZrCN, CrN, CrCN
PVD Plating Colors: Gold, Rose Gold, Silver, Black, Blue, Brown, Copper, Brass
Application: Sanitary Fittings, Brass Faucets, Bathroom Products
Product Description


The PVD ion plating machine is a high efficiency and 100% completely environmentally friendly surface treatment, which generate various colors on the products by solid metal targets and reactive gases.


The high vacuum cathodic arc vacuum coating machine has features of fast deposition, high ionization rate, strong adhesion, droplets less advantages.


  • Our exclusively vacuum pumping system design concept has low power consumption, which reduce 30%~50% production cost per hour.
  • Patented Cathodic Arc Power Supply developed for minimize this disadvantage : macroparticles (droplets)formation.

The Cathodic arc power supply has DC and Pulsed models, stable arc current; accurate current control with low overshoot.

  • Cathodic Arc source exclusively designed and produced for maximize the targets utilization ( up to 90% for a some targets)
  • Bias Power Supply and Ion Source Unit for optional enables a bright colors of final finishing.


 RTAC series Vacuum Arc Ion Plating Machine / Metal Decoration Ion Plating Machine mainly used to depositvarious metal films and metal -alloy coatings, multiple-layer films.


2.1. Structure: deposition chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems etc.

2.2. Coating Colors: gold, black, brown, grey, chrome colors etc

2.3. Coatings properties: TiN, TiC, ZrN, CrN,TiAlN, with bright colors, strong adhesion & excellent scratch protection, fast deposition rate, good diffraction.


General Information:


CHAMBER SIZE Φ1400*1600mm (H)
PUMP SYSTEM Rotary Piston Vacuum Pump (Mechanical)
Rotary Vane Vacuum Pump (Holding)
Roots Vacuum Pump
High Vacuum Oil Diffusion Pump
TECHNOLOGY Ion Plating ( Multi-arc sources)
TYPICAL TARGETS Titanium, Zirconium, Chrome etc.
GAS Gas Mass Flow Meters ( Ar, N2, C2H2, O2) Argon, Nitrogen and Ethyne,Oxygen
CONTROL PLC(Programmable Logic Controller)
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Recyle Cooling Water
HEATING Heater Pipe
POWER MAX. 75KW (Approx.)


Technical Advantages
1. Strong background of R&D support, focus on details of manufacturing. 4. Powerful pump set for short cycle time and high productivity.
2. Robust rotational system design for high uptime. 5. Low Temperature's Deposition.
3. ROYAL exclusive arc sources to guaranty high coatings quality, none color difference. 6. Turnkey coating solutions. (Gold & Silver Colors coating receipes tranning for free.)
