Gold Tin Coating Equipment For Ceramic Tiles , Titanium Nitride Pvd Plating Machine

Name: Gold Tin Coating Equipment For Ceramic Tiles , Titanium Nitride Pvd Plating Machine
Brand: SHANGHAI ROYAL TECHNOLOGY INC.
SKU: RTAC2022
Availability: InStock

Brand Name:	ROYAL
Model Number:	RTAC2022
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	12 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

Deposition Sources:

Cathodic Arc Evaporation

Deposition Films:

TiN TiO Arc Plating

Applications:

Glass And Ceramic Mosaics Tiles Gold Coating

Film Features:

Wear Resistance, Strong Adhesion, Decorative Coating Colors

Factory Location:

Shanghai City, China

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Supply Ability:

12 sets per month

Highlight:

titanium nitride coating equipment

tin coating machine

Product Description

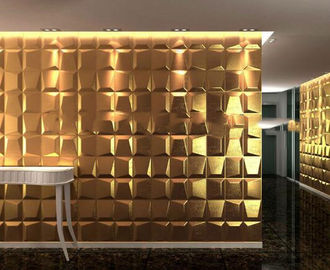

TiN gold coating on Ceramic Tiles, Arc Vacuum PVD Plating Equipment

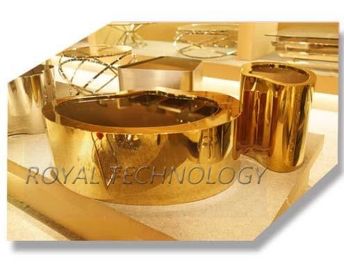

By using PVD arc evaporation coating technology, deposit many metal materials like: Titanium, Chrome, Copper, Brass, Zirconium to get various colors: gold, silver, black, grey, chroming.

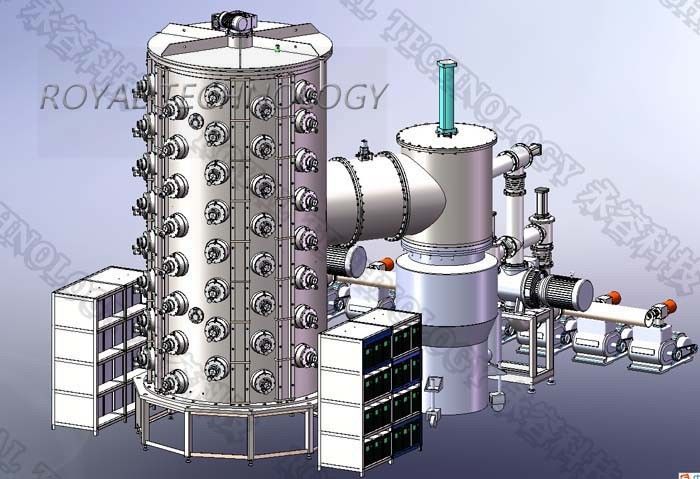

The PVD Arc Vacuum coating equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate carrier etc.

Ceramic TiN Coating Equipment Advantage: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.

TiN Coating Film's properties: high shiny and bright colors, strong adhesion & excellent scratch protection.

The RTAC2022 coating machine has large capacity to guaranty 200 ~300 squre meters coating every 8 hours.

RTAC2022 Specification

MODEL	RTAC2022
MATERIAL	Stainless Steel (S304)
CHAMBER SIZE	Φ2000*2200mm (H)
PUMP SYSTEM	Rotary Piston Vacuum Pump (Mechanical)
	Rotary Vane Vacuum Pump (Holding)
	Roots Vacuum Pump
	Diffusion Pump
TECHNOLOGY	Ion Plating ( Multi-arc sources)
TYPICAL TARGETS	Titanium, Chrome, Zr, Cu, Al etc.
GAS	Gas Mass Flow Meters ( Ar, N2,) (Argon, Nitrogen )
CONTROL	PLC(Programmable Logic Controller)
SAFETY SYSTEM	Numerous safety interlocks to protect operators and equipment
COOLING	Water
HEATING	Heater
POWER MAX.	150 KW (Approx.)
AVERAGE POWER CONSUMPTION	70 KW (Approx.)

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
