Plastic Metallization System, Vertical Aluminum Metallzing Equipment, Aluminum deposition with PVD thermal evaporation
Equipment
PVD (Physical Vapor Deposition) thermal evaporation process is 100% environmentally friendly. As an advanced coating technology to replace the traditional electroplating, its high quality finishing, fast deposition rate, brilliant uniformity, strong adhesion and low production cost properties becoming it an ideal solution for various industries:

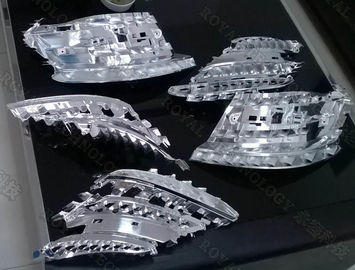

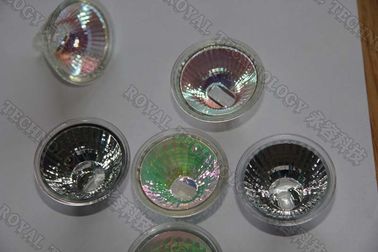

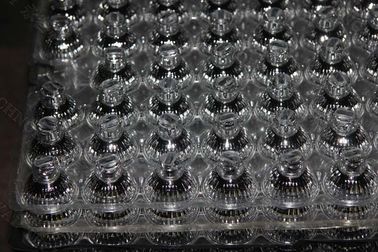

A: Decorative Coatings: ABS, PP, PC, PET, PMMA to deposit a thin film, high reflective, metallic like coating on toys, fashion and consume jewelry accessories, Christmas tree decorations, balls, buttons, shoes, mirrors, lamps.
B: Functional Coatings: protective layer: ZrO2 coatings on blades for heat insulation, HMDSO molymerization protective layers by PECVD, EMI & NCVM on electronics.
C: Optics Coatings: Anti-Reflection coating (AF film), telescope, periscope, microscope and digital camera.
Please CLICK HERE to watch the videos of evaporation and deposition process:
1. Evaporation Machine Models
| Model | Size(mm) | Substrate Jigs (Qty.) | Evaporation Power(kVA) | Plasma (kVA) | Ultimate Vacuum | Cycle Time | Electrical Power |
| RTEP1012 | Φ1000xH1200 | 6,8,10 | 20 | 7 | 8x10-4Pa | 10'~15' depends on Product |
3Phase/AC380V,50HZ |
| RTEP1416 | Φ1400xH1600 | 6, 8,16 | 30 | 7 | |||
| RTEP1418 | Φ1400xH1800 | 6,16 | 35 | 10 | |||
| RTEP1616 | Φ1600xH1600 | 8.16 | 35 | 10 | |||
| RTEP1618 | Φ1600xH1800 | 8.16 | 35 | 10 | |||
| RTEP1820 | Φ1800xH2000 | 6 | 40 | 10 | |||
| RTEP2022 | Φ2000xH2200 | 10,12,16 | 40 | 10 |
2. Exclusive Applications - Designed and Manufactured Machines by RoyalTech
| RTEP3618 | Φ3600xH1800 | 1 | 80 | 8x10-4Pa | 10'~15' depends on Product |
3Phase/AC380V,50HZ |
|
| RTEP2215 | Φ2200xH1500 | 1 | 50 | 10 | |||
| RTEP2525 | Φ2500xH2500 | 3 | 50 | 20 | |||
| RTEP6638 | L6600xH3800 | 100 | 20 | ||||
| RTEP0913 | Φ900xH1300 | ||||||
| RTEP1822 | Φ1800xH2200 | 6 | 50 | 10 | |||
3. PVD Evaporation Coating Machine Features
A: PLC + Touch Screen Operation System, fully automatically control
B: Fast Vacuum pumping down time.
C: Work pieces are easy loading/uploading.
D: Easy access to the working environment for maintenance.
E: Robust structure design and high quality configurations
Other Plastic metallizing products: mirror brightingness silver, matt silver, black, gold, red, green, purple, pink, blue colors etc.
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
