Glass PVD Coating Service, Cathodic Arc Plating Amber Color, Glassware Gold Plating Service

1 set
MOQ
negotiable
Price
Glass PVD Coating Service, Cathodic Arc Plating Amber Color, Glassware Gold Plating Service
Features Gallery Product Description Request A Quote
Features
Specifications
Film Features: High Reflective, Excellent Corrosion And Wear Resistance
Name: Vacuum Metalizing Machine
Certification: ISO, CE, UL Standard
System Operation: Automatic/ Manual
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

chrome plating machine

,

glass coating system

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: ISO, CE, UL standard
Model Number: RTAS
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 sets per month
Product Description

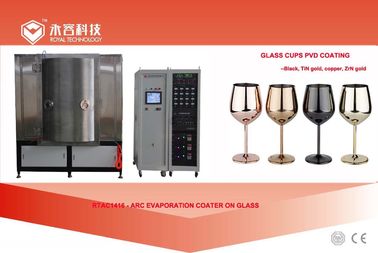

glass tableware Vacuum Metallizing Machine Introduction



The machine has 2 tecniques: thermal evaporation source and magnetron sputtering cathodes source. Which is flexible for different mirrors application.

Magnetron sputtering is a plasma coating process whereby sputtering material is ejected due to bombardment of ions to the target surface. The vacuum chamber of the PVD coating machine is filled with an inert gas, such as argon. By applying a high voltage, a glow discharge is created, resulting in acceleration of ions to the target surface and a plasma coating. The argon-ions will eject sputtering materials from the target surface (sputtering), resulting in a sputtered coating layer on the products in front of the target

Thermal evaporation source is tungsten filament to evaporation Cr or Al and get Chrome/Aluminum layer on glass to form high reflection mirrros.



Generally, Magnetron sputtering to sputter the Chrome, Stainless Steel materials; Al and Cu are deposited with thermal evaporation sources.



glass tableware Vacuum Metallizing Machine Features



1. The vacuum chamber is a vertical type single door structure made of stainless steel. Chamber sizeΦ1400~2500mm

2. The vacuum system is composed of mechanical pump, roots pump, and diffusion pump.

3. Coating system for 10~28 arc or 1~4 arc column or plane arc.

4. High power pulse bias power source.

5. Inflating system has 1~4 sets mass flow control instrument and a gas flow display.

6. The electrical control system is equipped with sound and light alarm devices for circuit overload, water cutoff and air cutoff.

7. The control system (touch screen + PLC) displays detailed parameters at real time and controls the entire production process fully automatically under automatic running mode.


Glass PVD Coating Service, Cathodic Arc Plating Amber Color, Glassware Gold Plating Service 0



Glass PVD Coating Service, Cathodic Arc Plating Amber Color, Glassware Gold Plating Service 1











Royal Technology provides the whole plan of Car Mirrors manufacturing, from glass cutting, cleaning, bending, coating to assemble of final process. The whole factory's design and plan.

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
