PVD Cathodic Arc Plating Equipment, Multi Arc Decoration Coating Machine
1 set
PVD Cathodic Arc Plating Equipment,  Multi Arc Decoration Coating Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAC
High Light:

hard coating machine


pvd coating equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 10 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Chamber: Vertical Orientation, 1-door,
Material: Stainless Steel 304/316
Vacuum Technology: Arc Evaporation, Arc Ion Plating
Deposition Sources: Arc Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC

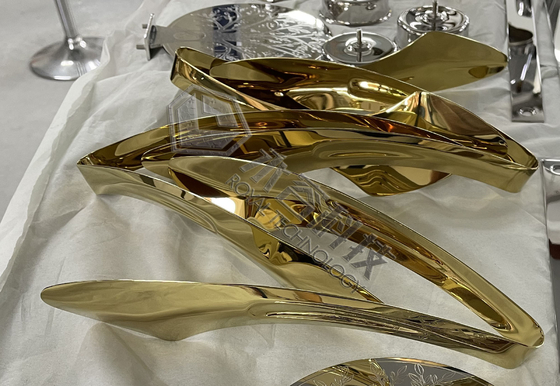

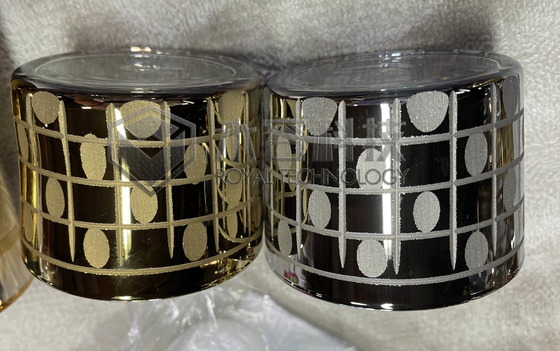

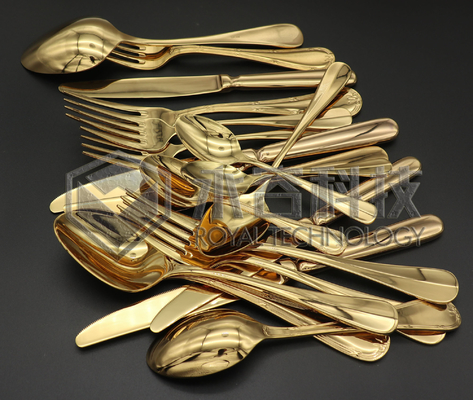

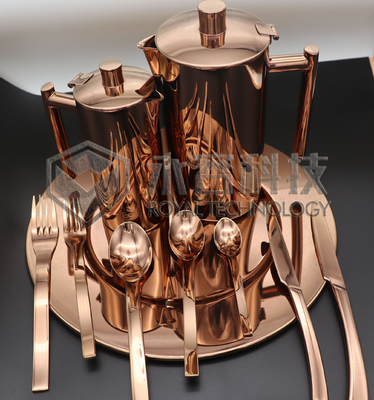

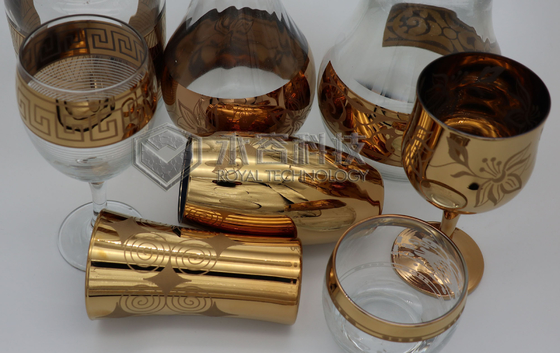

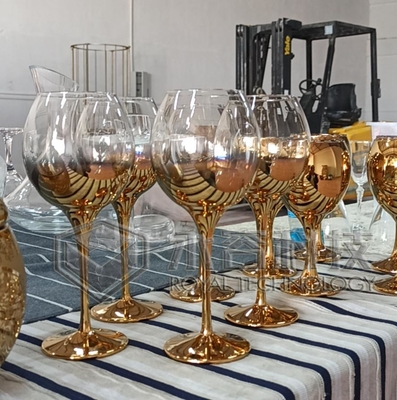

Industrial Applications: Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Product Description

Glasses magnetron sputtering vacuum coating machine / TiCN vacuum metallizing coating machine


General Information


1. Arc ( Ion Plating ) series equipment consists of: vacuum chamber, vacuum pumps, arc sources, spindle & jack, jigs structure, heating & cooling, water & gas (distribution), electrical control & operation systems, substrate

carrier etc.

2. Benefits: easy to operate, compact foot print, low cost of owner ship, fast substrate exchange.

3. Coating Types: metal & alloy coatings, multi layers coatings.

4. Coating Colors: gold, black, brown, grey, Chrome colors etc

5. Substrates: stainless sheets and tubes, metal alloys, glass, ceramic materials

6. Coatings Advantages: high shiny and bright colors, strong adhesion & excellent scratch protection.


Technical Advantages

1. Strong background of R&D support, focus on details of manufacturing.

2. Robust rotational system design for high up time.

3. Exclusive arc sources to guaranty high coatings quality, none color difference.

4. Powerful pump set for short cycle time and high productivity.

5. Unique design is friendly operation and low maintenance.

Turnkey coating solutions.

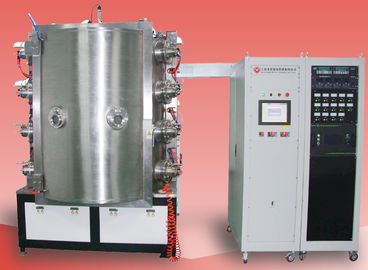

MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1400*1600mm (H)
CHAMBER TYPE Cylinder, vertical, single door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Roots Pump
TECHNOLOGY Cathodic Arc Evaporation, Ion Plating
POWER SUPPLY Arc sources power supply + Bias Power supply
DEPOSITION SOURCE 14 Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Arc Discharge



Colors are available: gold, grey, silver, amber, claret, black, blue, rainbow etc.



Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
