Thermal Evaporation + Multi Arc Ion Plating Machine on Glass wares, Blue and Gold Decorative Coatings

Name: Thermal Evaporation + Multi Arc Ion Plating Machine on Glass wares, Blue and Gold Decorative Coatings
Brand: SHANGHAI ROYAL TECHNOLOGY INC.
SKU: RTAC1616-EP
Availability: InStock

Brand Name:	ROYAL
Model Number:	RTAC1616-EP
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	12 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ISO, CE, UL standard

Deposition Sources:

Tungsten Filament Evaporation + Arc Evaporation

Deposition Films:

Al/Cr/Ag/Au Thermal Evaporation + Ti/Cr Arc Plating

Applications:

Glass Balls, Glass Candle Holders, Glass Decoration Products,

Film Features:

High Reflective, Decorative Coating Colors

Factory Location:

Shanghai City, China

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Worldwide Service:

Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Training Service:

Machine Operation, Maintenance, Coating Process Recipes, Program

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

Warranty:

Limited Warranty 1 Year For Free, Whole Life For Machine

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

OEM & ODM:

Available, We Support Tailor Made Design And Fabrication

Packaging Details:

Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.

Supply Ability:

12 sets per month

Highlight:

small pvd coating machine

vacuum coating plant

Product Description

PVD glass vase coating video:

RTAC-EP series coating equipment is a perfect combination of arc plating and thermal evaporation metalizing.

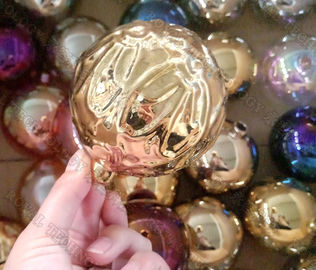

1. The RTAC1616-EP machine is designed and produced for glass balls decoration film coating.

Thermal evaporation sources is to get the none-transparent silver and gold colors by Copper and Aluminum deposition to get high reflection surface finishing.

The arc evaporation sources to generate more colors like champin, blue, rainbowl color, Amber color, none-transparent gold and half-transparent gold colors etc.

2.RTAC Thermal Evaporation + Arc Vacuum Plating Machine models

Model	Size(mm)	Substrate Jigs (Qty.)	Evaporation Power(kVA)	Plasma (kVA)	Arc Sources (Qty.)	Electrical Power
RTAC1012-EP	1000xH1200	6,8,10	20	12	6	3Phase/AC380V,50HZ 3Ph, 220 to 440V,60HZ
RTAC1416-EP	1400xH1600	6, 8,16	30	24	14
RTAC1418-EP	1400xH1800	6,16	35	24	14
RTAC1616-EP	1600xH1600	8.16	35	36	16
RTAC1618-EP	1600xH1800	8.16	35	36	18
RTAC1820-EP	1800xH2000	6	40	48	22

3. Equipment Structure

Thermal Evaporation + Multi Arc Ion Plating Machine on Glass wares, Blue and Gold Decorative Coatings 0

Thermal Evaporation + Multi Arc Ion Plating Machine on Glass wares, Blue and Gold Decorative Coatings 1

Thermal Evaporation + Multi Arc Ion Plating Machine on Glass wares, Blue and Gold Decorative Coatings 2

Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
