Ion PVD Plating Machine , Black graphite coating on 3D parts
1 set
MOQ
negotiable
Price
Ion PVD Plating Machine , Black graphite coating on 3D parts
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS
High Light:

silver plating machine

,

ion plating system

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 6 to 12 weeks
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 15 sets per month
Specifications
Vacuum Technology: Arc Evaporation, Arc Ion Plating + MF Sputtering
Deposition Sources: Arc Cathodes + Sputtering Cathodes
Coating Films: Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Ceramic And Glass House Wares, Stainless Steel Table Ware, Steel Sheet, Furniture, Table, Chair, Watches And Clocks, Hard Coatings On Tools
Product Description

Rainbow titanium coating vacuum plating Magnetron Sputtering Coating Machine , Thin Film Arc Ion Plating Machine

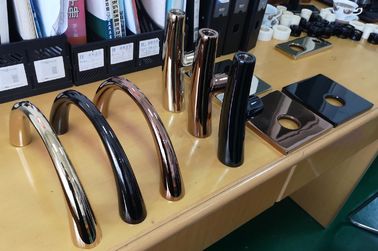

RTAC-SP machine is for decorative coating on all kinds of house wares like: glass / metal / stainless steel materials.



Coating Equipment Features



1. High ionization rate , high deposition speed and strong adhesion
2. To replace the water-electroplating, 100% environmentally friendly.

3. Advanced control system and easy to operate , deposited at various substrate materials.



RTAC1250-SP SPECIFICATION:



MODEL  RTAC1250-SP
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1250*1250mm (H)
CHAMBER TYPE Cylinder, vertical, single door
SINGLE PUMP PACKAGE Rotary Piston Vacuum Pump
Roots Vacuum Pump
Turbo Molecular Pump
TECHNOLOGY Magnetron Sputtering + Ion Plating
POWER SUPPLY MF power supply + Bias Power supply + Arc Powers
DEPOSITION SOURCE 4 sets of Cylinder Sputtering Target + 8 sets of Cathodic Arc Sources
CONTROL PLC+Touch Screen
GAS Gas Mass Flow Meters
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cooling Water
CLEANING Glow Discharge Cleaning
POWER MAX. 130 KW

AVERAGE POWER

CONSUMPTION

70 KW

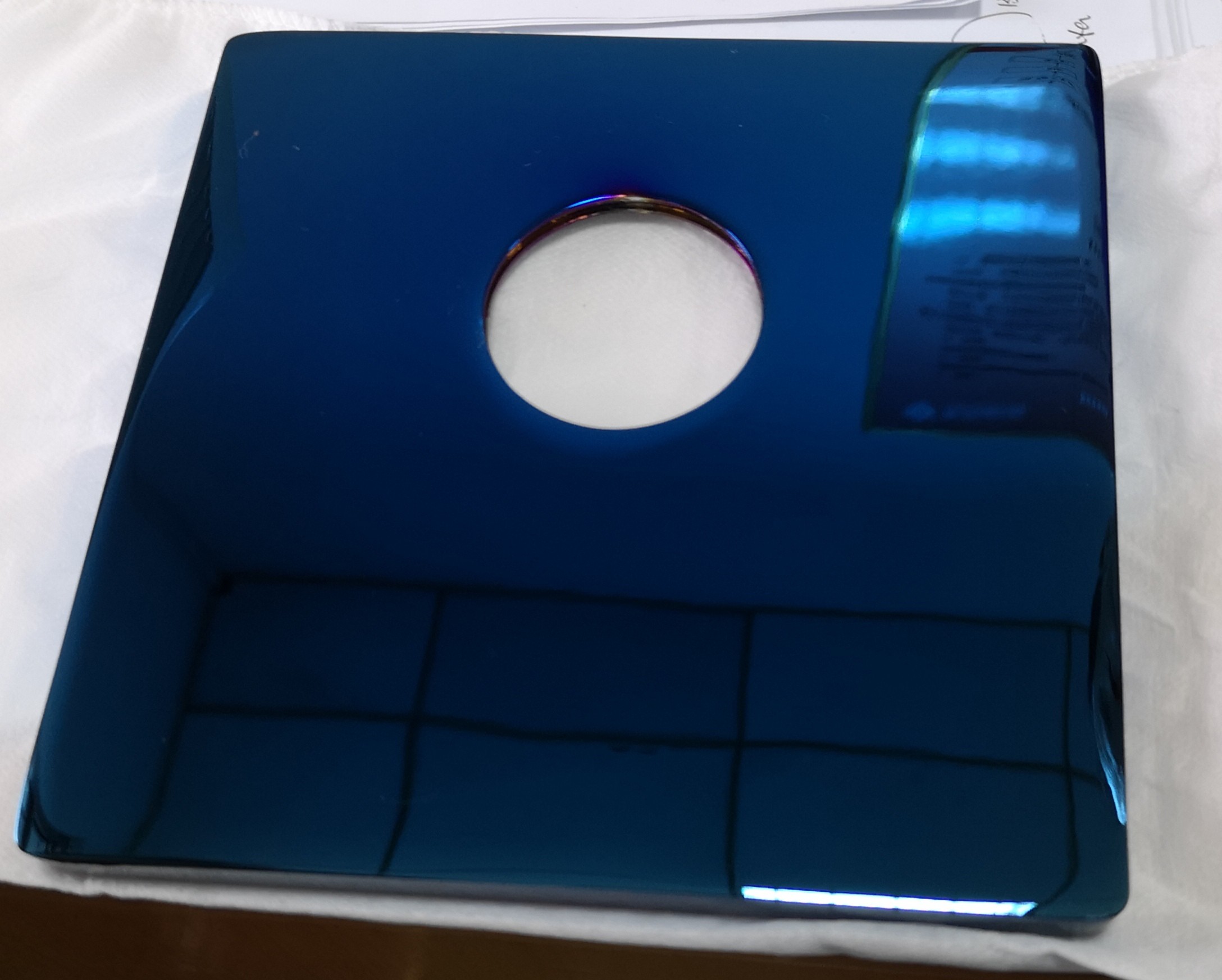

Coating Films:



To coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds films.



Ion PVD Plating Machine , Black graphite coating on 3D parts 0





Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
