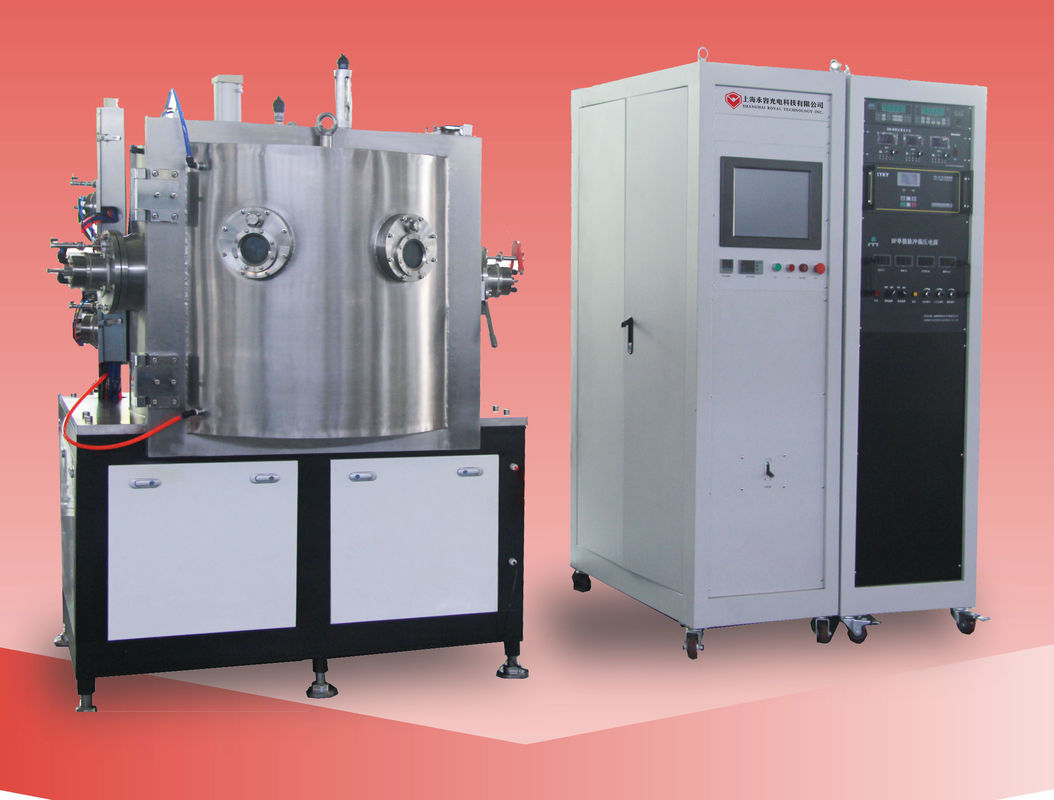

Stainless Steel 316 PVD Plating Machine For Writing Instrument / Pen Parts

1 set
Stainless Steel 316 PVD Plating Machine For Writing Instrument / Pen Parts
Features Gallery Product Description Request A Quote
Chamber: Vertical Orientation, 1-door
Material: Stainless Steel 316
Vacuum Technology: PVD Hard Coating, CrN Coating, Pvd Plating, Cathodic Arc Evaporation
Deposition Sources: Arc Sources
Coating Films: Cr, CrN, CrC Etc. Metal Film Plating, Titanium Nitride, Titanium Carbide, Zirconium Nitride, Chromium Nitride, TiAlN, CrC
Industrial Applications: Tools, Metal Parts, Metal Mechanical Instruments
Factory Location: Shanghai City, China
Worldwide Service: Poland - Europe; Iran- West Asia & Middle East, Turkey, India, Mexico- South America
Training Service: Machine Operation, Maintenance, Coating Process Recipes, Program
Warranty: Limited Warranty 1 Year For Free, Whole Life For Machine
OEM & ODM: Available, We Support Tailor Made Design And Fabrication
High Light:

Writing Instrument PVD Plating Machine


Stainless Steel 316 PVD Plating Machine

Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTAS
Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8 to 12 weeks
Payment Terms: L/C, T/T
Supply Ability: 15 sets per month
Product Description


writing instrument- Pen parts coating Arc PVD Plating Machine , Arc Ion Vacuum Coating Unit



What is Arc PVD Plating?


Multi-arc ion vacuum coating machine take vacuum arc discharge technology as evaporation source. Igniting the evaporation source (cathode) in a vacuum environment to form a self-sustaining arc discharge between the anodes. From the cathode arc glory point cathode substance released ions. Since the current local concentration, the Joule heat generated by the cathode material locally explosively into plasma, the bias effect in the work piece compound with the reaction gas, and the plated layer is formed on the deposition surface of the work piece.



Arc PVD Plating Machine Features

1. gear for water- cooling
1) novel design, compact structure, inter-series universal and interchangeable.
2) water - base, good heat dissipation.
3) rolling bearings and transmission gear can add oil to run life increase 3-5 times.

2. Rotation device is a planetary rotation mechanism, according to the different coating process, designed to:
1) Revolution type
2) the Revolution& Rotation type
3. clamping work piece very convenient, innovative design.
4. Taking spring hinges automatic lock to replace the traditional manual door locking buckle, reduce operating procedures, enhance the overall vacuum airtight doors and rubber seals to reduce destructive.
5. New structure vacuum vessel designing, the user can upgrade to multi-functional coating equipment according to their requirement
6. Multi arc ion coating machine using advanced technology, it can coat not only decorative film but also functional film , numbers of processes complete one-time.
7. vacuum check-off control system domestic initiative.
8. According to the different coating processes, equipped with dismountable work piece rack and jig, easy operation.
9. The main control system adopts PLC program, IPC control system (touch screen type).
10, HMI touch automatic control, the machine also has a manual operation, and operation and maintenance are very convenient.
11, It is the Ideal equipment for laboratory equipment in research and short run production.
12, with fast pumping speed, stable vacuum, large loading capacity, good coating uniformity.



Arc PVD Plating Machine Applied Industries

1. It  can deposite  aluminum, nickel, chromium and other metal films to plastic, resin, glass ,ceramic and other materials . for example: decoration, toys and cup. Making the material surface metalized ,red, Purple ,Blue and green color coating.
2. It can deposite thin films on  stainless steel ,aluminum, titanium ,tungsten and other metal film or alloy film as Tin. Tic etc compound film onto plastic, resin, Glass lighting (tube ,cup. Cover, etc.), glass products, ceramic products and so on
3. Faucet, Showerhead, watch case, phone shell. Spectacle frames, tableware. Hardware tooling, ceramic products decorative film and functional film coating
4. Gear, twist drill, taps ,mould products super hard coating .
5, Applied to all kinds of metal, ceramics, glass, etc material hard metal film, metal compound film and decorative film coating.
6, It is widely used in surface treatment for watches, glasses, information products, tools, moulds, metal, glass, ceramics, building materials and other industries. It is an ideal equipment for IP imitation gold, IPCr, IP light guns, IP brown, IP rose, champagne, cognac color and other film. The equipment does not pollute the environment, non-toxic coating layer, harmless to human body ,which solve the problem of water pollution. It is an ideal equipment instead of traditional water plating gold-plated and chrome plated.

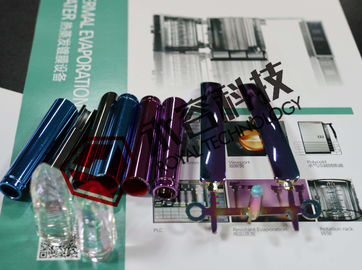

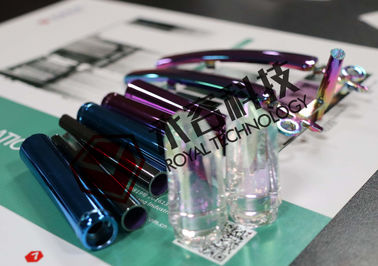

Arc PVD Plating Samples


Stainless Steel 316 PVD Plating Machine For Writing Instrument / Pen Parts 0

Stainless Steel 316 PVD Plating Machine For Writing Instrument / Pen Parts 1


Please  contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
