High vacuum thin film coating machine, NCVM plastic vacuum metallizer, Indium PVD coating equipment
1 set
MOQ
negotiable
Price

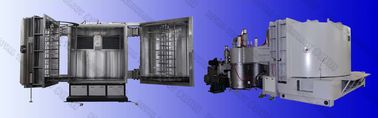

High vacuum thin film coating machine, NCVM plastic vacuum metallizer,  Indium PVD coating equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Made in China
Brand Name: ROYAL
Certification: CE
Model Number: RTEP1616
High Light:

vacuum metalizing equipment

,

vacuum metallization equipment

Payment & Shipping Terms
Packaging Details: Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time: 8~12 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 10 sets per month
Specifications
Evaporation Source: Thermal Filament, Thermal Boat, Thermal Box, Rod, Crucibles
Deposition Materials: Aluminum, Gold, Silver, Chromium, Copper, Indium, Indium Tin Oxide, Nickel
Applications: Furnitures, Dashboards, Knobs, Buttons, Plates, Fashion And Costume Jewelry Accessories, Toy Parts, Lifestyle Products, Car Lighting, Christmas Decorations
Product Description



Vacuum Metalizing Equipment Plastic tableware coating , Indium Thin Film Coating Machine







NCVM None Conductive Vacuum Metalzing Machine is used for plastic parts plated which coated by vacuum deposition technology. It uses each other discontinuous features, to generate a final appearance of the metallic finish and doesn't affect the effect of the wireless communication transmission.



NCVM None Conductive Vacuum Metalzing Machine coating material is Tin (99.99%)



The Substrates: plastic materials like: PC, PC+ABS, ABS, PMMA, Nylon, engineering plastics etc.



NCVM None Conductive Vacuum Metalzing Machine  Applications: mostly for electronic product industries, communication devices. Mobile phone, telephone, smart phone, GPS satellite navigation, bluetooth headset, computer etc.



NCVM None Conductive Vacuum Metalzing Machine Advantages: it is a total alternative technology for electroplating products of the Chrome-Free.



Much Lower production cost compared with traditonal spraying painting method. And high qualified production rate.



Coating process is simple and easy operation.



NCVM None Conductive Vacuum Metalzing Machine Specifications:



MODEL RTEP1616
TECHNOLOGY THERMAL EVAPORATION, TUNGSTEN ,FILAMENT, glow discharge
MATERIAL Stainless Steel (S304)
CHAMBER SIZE Φ1600*1600mm (H)
CHAMBER TYPE Cylinder, vertical, 2-door
EVAPORTATION SYSTEM exclusive design for NCVM coating
DEPOSITION MATERIAL Tin, Indium (Sn, In)
DEPOSITION SOURCE TUNGSTEN FILAMENT
CONTROL PLC(Programmable Logic Controller) + Touch Screen
PUMP SYSTEM Rotary Piston Vacuum Pump
Rotary Vane Vacuum Pump
Roots Vacuum Pump
Difussion Pump + Brooks Polycold
PRE-TREATMENT Plasma Cleaning
SAFETY SYSTEM Numerous safety interlocks to protect operators and equipment
COOLING Cold Water
POWER ELECTRICAL 480V/3 phases/60HZ ( USA compliant)
460V/3 phases/50HZ ( Asia compliant)
380V/3 phases/50HZ ( EU-CE compliant)
FOOTPRINT L9000*W4200*H3000mm
TOTAL WEIGHT 7.1 T
CYCLE TIME 15 minutes (depending on substrate material, substrate geometry and environmental conditions)
POWER MAX.. 90KW
AVERAGE POWER CONSUMPTION (APPROX.) 45KW







Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
