Crystal glass PVD Plating Machine / Glass bracelet PVD vacuum plating coating machine Decorative PVD Coating Equipment
Glass are used in jewelry like necklace, chains of handbag accessories, decorations of lightings etc.
Glass PVD Coating Technology
With PVD arc evaporation technology, we can get the range colors of gold, rose gold, high reflection of silver mirror, black, rainbow.
Arc PVD Coating Advantage:
1. Economically efficient, generating the thinnest, most uniform coating films;
2. A dry coating process at low temperature in a vacuum chamber;
3. Offers great versatility and can be used for the deposition of conductive or non-conductive materials on any type of substrates, like: metals, ceramics, plastic materials.
4. Multi-layered coating are simple to produce.
5. Fast deposition rates and high quality surface finishes.
Glass Beads PVD Plating Machine
|MATERIAL||Stainless Steel (S304)|
|CHAMBER SIZE||Φ1600*1600mm (H)|
|CHAMBER TYPE||Cylinder, vertical, front opening door|
|SINGLE PUMP PACKAGE||Rotary Piston Vacuum Pump|
|Roots Vacuum Pump|
|TECHNOLOGY||Cathodic Arc Evaporation, Ion Plating|
|POWER SUPPLY||Arc sources power supply + Bias Power supply|
|DEPOSITION SOURCE||Cathodic Arc Sources|
|GAS||Gas Mass Flow Meters|
|SAFETY SYSTEM||Numerous safety interlocks to protect operators and equipment|
|CLEANING||Bias Power Plasma Cleaning|

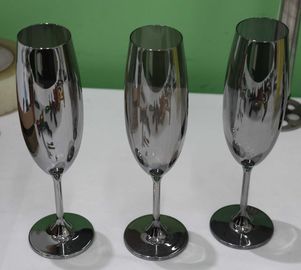

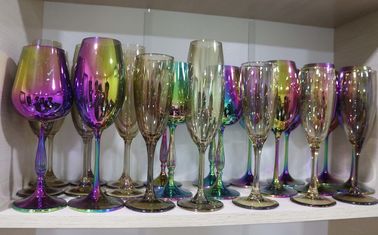

Glass Beads PVD Coating Colors
Please contact us for more specifications, Royal Technology is honored to provide you total coating solutions.
